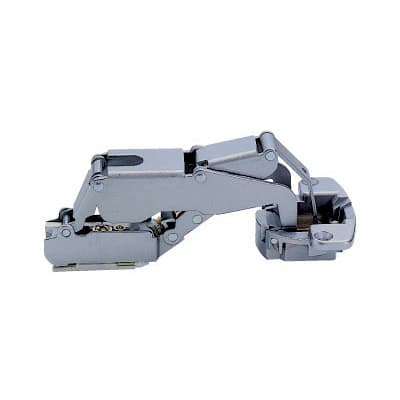

H160 European Hinge 18mm Overlay For Thick Doors

H160 European hinge 18mm overlay is a concealed cabinet hinge from Sugatsune America designed for thick doors, so it lets you use 33 to 40 mm doors while still keeping a clean, hidden hinge look on jobs that call for heavier fronts. The 18 mm overlay specification sets how far the door covers the cabinet front, so you can lay out face-frame or frameless runs knowing exactly where the door edge will land against the case. Its self-close function pulls the door shut at the end of travel, so doors seat consistently without needing magnetic catches on standard cabinet applications. A 160 degree maximum opening angle gives wide access into the cabinet, which helps during installation, hinge adjustment, and everyday access in wider or deeper storage sections. The satin chrome finish identifies the hardware quickly and keeps the hinge looking uniform with other satin chrome concealed components.

Key Hinge Details That Support Cabinet Layout

• The concealed hinge design hides the hardware when the door is closed, which keeps the cabinet exterior clean while still giving full access for adjustments inside the cup and arm.
• The 18 mm overlay rating defines the door coverage on the front of the cabinet, helping you set reveal lines and align multiple doors across a run with predictable gaps.
• The 33 to 40 mm (1-5/16" to 1-9/16") door thickness range lets you specify thicker doors, so you can use heavier fronts or applied panels and still stay within the hinge operating range.
• The 160 degree maximum opening angle opens the door wide, which makes loading cabinets and working inside the case easier, especially on wider base or tall units.
• The satin chrome finish matches other satin chrome European hardware visually, so hinge choices stay consistent across a project that uses similar concealed components.

Screw-On Mounting For Predictable Hinge Installation

This Sugatsune Self-Close 3/4" Overlay Face-Frame;Frameless Thick Door Hinge Satin Chrome, 90 degree Screw-On - H160-C34/18 uses a screw-on mounting style, so the hinge fastens directly to the door and cabinet with standard screws during installation. The concealed cabinet hinge format keeps all working parts inside the cup and arm, so adjustments are done at the hinge location instead of altering the door or case after drilling. With an 18 mm overlay and a specified 33 to 40 mm door thickness range, hinge placement can be laid out from edge dimensions, which speeds drilling and repeat work across multiple doors in a shop or jobsite setting.

Using This Concealed Hinge On Thick Cabinet Doors

Where This 18 mm Overlay Hinge Is Applied

This concealed hinge for thick doors with 18 mm overlay is suited to cabinet doors built in the 33 to 40 mm, or 1-5/16 inch to 1-9/16 inch, thickness range, so it supports projects that move beyond standard thin doors. The hinge belongs to the European Concealed Long Arm Hinges and European Thick Door Hinges categories, so it fits work that calls for a long arm concealed design on thicker cabinet fronts. As a concealed cabinet hinge, it operates behind the door and frame, so it works on furniture-style cabinets and built-ins where visible hardware would interrupt the design. The 160 degree maximum opening angle means it serves well on storage where wide access is useful, such as pantry cabinets or utility units that benefit from a larger swing.

Details That Help Achieve Consistent Cabinet Results

The specified 18 mm overlay lets you repeat the same door-to-cabinet relationship from opening to opening, so reveals and margins stay consistent across a bank of doors without repeated trial fitting. The door thickness range of 33 to 40 mm sets a clear working window, so machining for the concealed cup and screw-on arm can be standardized for thick doors throughout a project. The self-close function in this hinge brings the door closed at the last part of movement, which keeps doors resting in the same closed position and helps maintain alignment of door faces over time. The screw-on mounting style gives a direct mechanical connection between hinge and cabinet, so each hinge is secured in place once the screw pattern is drilled and driven. As a satin chrome H160-C34/18 hinge from Sugatsune America, it also ties directly to the H160 European hinge 18mm overlay SC description, which simplifies product selection when matching specifications or drawings.

Common Questions About The H160 Thick Door Hinge

Select This Hinge For 18 mm Overlay Thick Doors

The H160 European hinge 18mm overlay SC from Sugatsune America combines 18 mm overlay, 33 to 40 mm thick door capacity, and a 160 degree opening angle, so it suits cabinet projects using heavier doors that still need concealed European function. Matching the H160-C34/18 hinge and the SL100-04A-W-32 mounting plate to specifications lets you carry one consistent concealed hinge style across thick door locations in a job. For cabinetry needing self-close performance, concealed installation, and defined overlay on thick doors, this hinge provides a focused option ready to align with detailed cabinet layouts.
