Sugatsune Self-Close 7/8" Overlay Face-Frame;Frameless Thick Door Hinge Satin Chrome, 90° Screw-On - H160-C34/23

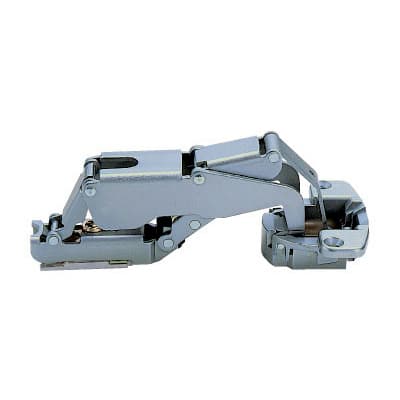

H160 European Hinge 23mm Overlay For Thick Doors

H160 European hinge 23mm overlay is a concealed cabinet hinge designed for thick doors, so it lets you hang heavier 33 to 40 mm doors while keeping hardware hidden when the door is closed. This Sugatsune America hinge is built as a European concealed long arm hinge, which provides the clean look and consistent alignment that installers expect on higher-end cabinet work. The hinge is designed for a 23 mm overlay, so the door overlays the face frame or cabinet side by that amount for a predictable reveal across a run of cabinets. Its self-close function pulls the door shut at the end of travel, which helps doors sit properly without extra adjustment on everyday use. The 90 degree max opening sets a clear swing limit, which helps lay out adjacent doors or walls without surprise interference.

Key Thick Door Hinge Details For Cabinet Work

• This concealed hinge is specified for door thickness from 33 to 40 mm (1-5/16 to 1-9/16 in), which lets you use thicker doors without changing to a different construction style.
• The 23 mm overlay specification sets how far the door covers the cabinet front, which simplifies planning consistent reveals and matching existing cabinet runs.
• The hinge uses a 90 degree max opening angle, which helps control door swing so adjacent cabinets, corners, or side walls can be planned around a known opening arc.
• The satin chrome finish gives the hinge an understated interior look, which suits concealed cabinet hardware where appearance still matters during service and adjustment.
• This hinge is categorized as a European concealed long arm hinge, which supports precise door positioning and clean cabinet interiors on both face-frame and frameless construction.

Installation Setup For 23 mm Overlay Thick Doors

This Sugatsune self-close hinge is described as a screw-on type, so it mounts to the cabinet and door using standard screw driving steps familiar to cabinet installers. The hinge is specified for doors with 23 mm overlay, so layout of cup boring and plate location follows that overlay dimension for a consistent gap and reveal. With a max opening of 90 degrees, hinge placement can be planned with nearby cabinets or appliances in mind, using the stated swing to avoid collisions. Its use on thick doors from 33 to 40 mm means cup boring depth and position are suited to that range, so the door edge profile can be designed around the hinge requirements. Being a concealed cabinet hinge, it sits inside the cabinet line when closed, which supports a cleaner finished look and reduces snag points inside the cabinet.

Using This Concealed Thick Door Hinge In Projects

Where This Sugatsune Thick Door Hinge Fits Best

This Sugatsune self-close 7/8 overlay face-frame and frameless thick door hinge is positioned for projects where both face-frame and frameless cabinet construction appear in the same space, because it supports thick doors in either style. The 33 to 40 mm door thickness range lets you use substantial doors on kitchen, bath, or storage cabinets while still using a European concealed long arm hinge rather than shifting to surface-mount hardware. The hinge works with a 23 mm overlay, so it aligns with cabinet layouts designed around that overlay standard, simplifying design for rows of cabinets using the same door style. Its concealed design also suits applications where the interior of the cabinet will be seen during normal use, because the hinge hardware is hidden when the door is shut and remains visually tidy when open.

How H160-C34/23 Details Support Consistent Alignment

The H160-C34/23 hinge uses a defined 23 mm overlay, which provides a fixed reference when boring doors and setting mounting plates, helping installers keep reveals even across multiple openings. Its 90 degree max opening angle gives a repeatable swing on every door using this hinge, which helps avoid rework caused by unexpected door contact with adjacent cabinets or walls. The self-close function assists with pulling doors into the fully closed position at the end of travel, reducing the tendency for doors to rest slightly ajar after installation. Because this is a European concealed cabinet hinge for thick doors, the hinge cup and arm geometry are tuned to 33 to 40 mm thickness, which supports proper seating of the cup without weakening the door edge. The satin chrome finish provides a consistent professional appearance whenever the hinge is visible during adjustment or service.

Common Questions About This Thick Door Hinge

Select This Hinge For 23 mm Overlay Thick Doors

The Sugatsune H160-C34/23 concealed hinge brings together a 23 mm overlay, 33 to 40 mm door thickness range, and a 90 degree opening angle, giving you defined parameters for cabinet layout. Its self-close action and concealed European long arm design support clean, consistent doors on both face-frame and frameless cabinets. For projects using thicker cabinet doors where a 23 mm overlay is required, this hinge aligns hardware selection with the dimensions already set in your design.
