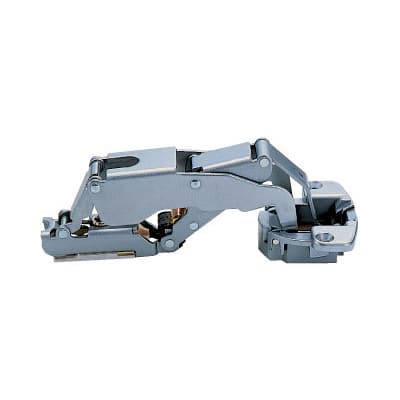

The Sugatsune H160-C34/28 is a self-close concealed hinge engineered specifically for thick doors on both face-frame and frameless cabinets, finished in Satin Chrome for installations where the hardware is visible during installation or demands a consistent finish across the run.
Standard concealed hinges are sized for doors in the 16 to 22mm range. When a project calls for thick slab doors, solid wood doors, or cabinet fronts that push past that window up to 1-9/16 inches, the cup geometry and arm spacing of a standard hinge no longer fit. The H160-C34/28 uses a 40mm cup with a 15mm depth and a 48mm boring pattern, dimensions that match the heavier door construction and keep the hinge body properly seated. The 90 degree opening angle is intentional here: thick doors need a controlled swing to clear the cabinet face cleanly, and a wider angle would introduce clearance problems the design is not built for. A matching base plate is required for installation and sold separately, matched to your cabinet construction and overlay position.
The hinge is steel finished in Satin Chrome, a brushed, cool-toned finish that reads cleanly in contemporary and transitional interiors and coordinates with stainless pulls, chrome fixtures, and similar hardware finishes in the same space. At 1-1/2 inches tall and 2-1/16 inches wide, it sits compactly in the door bore for a hinge that does heavy work without a large footprint.
Reach for this hinge on thick solid wood doors, furniture-grade cabinet fronts, or any application where door thickness exceeds what a standard 35mm-cup hinge can serve. It suits face-frame cabinetry in traditional or transitional kitchens as naturally as it suits frameless European-style boxes, making it a dependable single SKU for shops running both construction types. The screw-on mount is straightforward and does not depend on pre-drilled 5mm system holes, so it works on custom cabinets and site-built boxes alike. If the project also needs a damped, cushioned close rather than a spring pull, note that this hinge is self-close, not soft-close.
A standard concealed hinge uses a 35mm cup sized for doors 16 to 22mm thick. A thicker door needs a deeper, wider cup so the bore does not push through the door face and the arm geometry positions the door correctly. This hinge uses a 40mm cup at 15mm depth, sized for doors up to 1-9/16 inches thick.
No. The hinge mounts to a separate base plate that attaches to the cabinet, and that plate is sold separately. Choose a plate matched to your cabinet type and the overlay position you need.
Self-close uses a spring to pull the door shut from within a few degrees of closed. Soft-close uses a damper to slow the door so it settles quietly. This hinge is self-close: the spring draws the door shut, but it does not cushion the contact.
The 90 degree angle is engineered for thick-door applications. A thick door has more mass swinging outward from the cabinet face, and the restricted angle keeps the door edge from fouling the cabinet front or adjacent surfaces. It is the correct geometry for this door type, not a limitation.
When thick doors are on the plan and the finish needs to hold up in a refined interior, the H160-C34/28 delivers the cup geometry, controlled swing, and Satin Chrome finish the job calls for.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each |  SL100-04A-W-32 Mfr# 100-04A-W-32 | 1.5mm 2D Adjustable Steel Wing Base Plate For H160 Series Hinges, Screw-On, Satin Chrome |
