Torque Hinge with Soft-Open Damper 88-124 lbf.in
Description
Torque Hinge With Soft-Close Damper For Controlled Lids

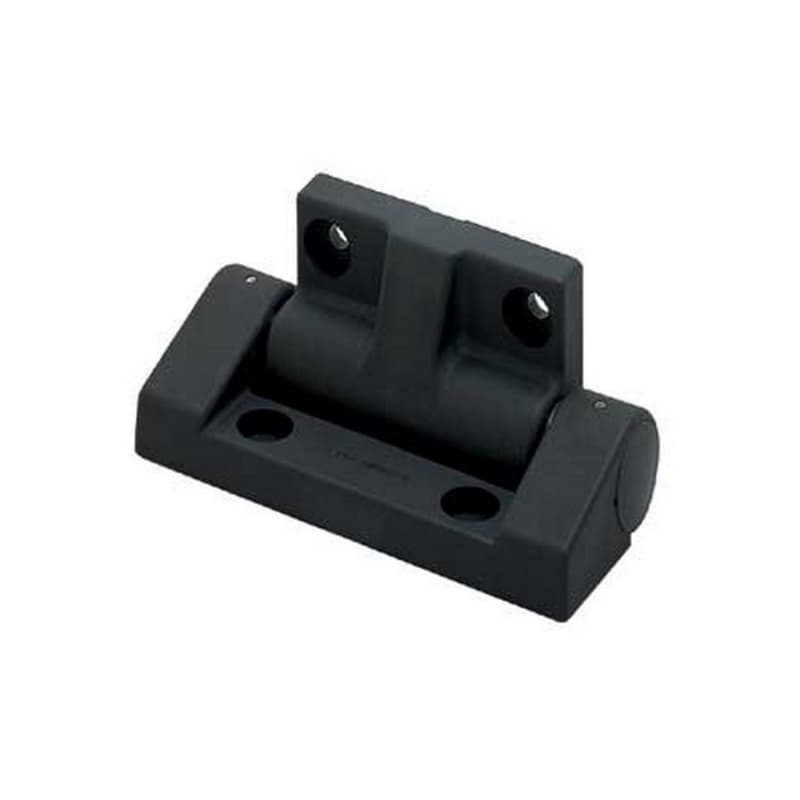

Torque Hinge with Soft-Close Damper 88-124 lb Inch HG-JHW Series is a surface mount torque hinge from Sugatsune America that uses a built-in soft-close damper to control lid movement, which helps keep lids from slamming shut on cabinets or equipment enclosures. The soft-close damper is designed to keep the lid from slamming shut, which supports smoother, more controlled closing when a lid is lowered. As part of the HG-JHW Series torque hinges, this model provides a rated torque in the 88-124 lb inch range, which helps counterbalance heavier lids so they can be moved with steady resistance throughout the operating angle. The hinge is classified in the Torque Hinges product class under Hinges|Invisible and Recessed Hinges, which positions it for applications where controlled motion and cleaner hardware lines are important. The manufacturer part number HG-JHW70 identifies this specific version for repeat ordering, which simplifies matching additional hinges to existing installs.
Soft-Close Torque Hinge Details That Support Jobs
- The hinge with built-in dampers uses an integrated soft-close damper, which manages closing speed so lids are less likely to slam, reducing impact on the lid and surrounding casework over repeated use.
- The soft-close damper keeps lid from slamming shut by adding controlled resistance at the end of travel, which helps protect hands and helps limit vibration transfer into the cabinet structure when the lid is lowered.
- The surface mount type design allows the hinge to be mounted directly to the surface, which can simplify layout work compared to fully concealed hardware and can reduce prep time when retrofitting existing lids.
- Two different damper direction available for various application means the hinge series offers damper direction options, which helps align the damping action to how a particular lid or panel moves in the installation.
- The operating temperature: 0~40C (32~104F) rating defines the intended temperature range, which guides where the hinge can perform as designed in typical indoor environments such as shops or interior cabinetry.
- The operating angle: 115 degrees / dead angle: 5 degrees specification defines how far the hinge is intended to move, which helps with planning clearances so lids can open fully without over-rotation or unintended binding.
Surface Mount Hinge Setup And Motion Parameters
This soft-close surface mount damper hinge is identified as a surface mount type, which sets installation expectations around fastening directly to the lid and frame surfaces instead of recessing into mortises. With an operating angle of 115 degrees, the hinge is designed to let the lid open through a defined arc, which assists layout decisions when checking that nearby walls, counters, or equipment do not interfere with travel. The dead angle of 5 degrees specifies a small range near the closed position where torque behavior changes, which matters when aligning the lid so it seats cleanly without over-travel. The operating temperature range of 0~40C (32~104F) indicates the conditions where the damper and torque characteristics are intended to function consistently, which supports predictable motion in typical indoor woodworking and shop environments.
Using The HG-JHW70 Torque Hinge In Real Projects
Where This Soft-Close Surface Mount Hinge Fits
The SAP description "SOFT-CLOSE SURFACE MOUNT DAMPER HINGE" and the web description "Hinge with built-in dampers" position the HG-JHW70 as a hinge solution for lids where controlled, soft-close motion is desired. As part of the Torque Hinges category, this model is suited to applications where the hinge supplies resistance throughout the swing, which is useful when a lid needs to stay more controllable across its operating angle. The torque range of 88-124 lb inch provides a reference to match the hinge to heavier lids or panels, which matters for benches, equipment covers, or storage lids that would otherwise fall quickly under their own weight. Classified under Hinges|Invisible and Recessed Hinges, this torque hinge supports projects aiming for a less obtrusive hardware presentation compared to bulkier external hinges.
Why HG-JHW Series Details Support Repeatable Motion
The built-in soft-close damper in this HG-JHW Series hinge keeps the lid from slamming shut, which promotes consistent, controlled closing every time the lid is used. By integrating damping into the torque hinge body, the component provides both resistance and soft-close in one unit, which simplifies hardware selection when planning motion control. The stated operating angle of 115 degrees gives a predictable limit to lid travel, which reduces guesswork when designing stop positions and helps avoid over-opening that could stress panels. A dead angle of 5 degrees defines how the hinge behaves near full closure, which helps lids settle into position with repeatable alignment. The operating temperature range of 0~40C (32~104F) helps the installer pair this hinge with indoor environments where users expect consistent soft-close performance. The manufacturer part number HG-JHW70 and reference to HG-JHW Series allow straightforward specification on drawings and reorders, which supports consistency across multiple cabinets or production runs.
Common Questions About The HG-JHW70 Torque Hinge
What type of hinge is the HG-JHW70 model?
The HG-JHW70 is a torque hinge with soft-close damper in the HG-JHW Series, so it both resists motion and provides controlled soft closing for lids using a single hinge component.
How does the built-in soft-close damper function in use?
The hinge with built-in dampers uses its soft-close damper to keep the lid from slamming shut, which moderates closing speed and reduces impact as the lid reaches the closed position.
What does surface mount type mean for this torque hinge?
This hinge is described as surface mount type, meaning it is intended to mount on the surface of the lid and frame, which affects layout and preparation compared to recessed hinge styles.
What operating angle does the HG-JHW Series hinge provide?
The HG-JHW Series hinge has an operating angle of 115 degrees with a 5 degree dead angle, providing a defined range of movement for planning lid opening and closing positions.
In what temperature range is this soft-close hinge intended to operate?
The soft-close surface mount damper hinge has an operating temperature of 0~40C (32~104F), which aligns with typical indoor shop and cabinet environments for consistent hinge performance.
How does the 88-124 lb inch torque range affect lid control?
The 88-124 lb inch torque range means the hinge is suited for heavier lids, providing resistance throughout movement so lids feel more controlled instead of falling freely under their own weight.
Selecting This Soft-Close Torque Hinge For Your Project
The Torque Hinge with Soft-Close Damper 88-124 lb Inch HG-JHW Series offers a surface mount type hinge with built-in dampers, giving both torque and soft-close in one component for lids. With an operating angle of 115 degrees, a defined 5 degree dead angle, and an operating temperature range of 0~40C (32~104F), it provides clear operating parameters for planning motion in indoor applications. The HG-JHW70 identifier and HG-JHW Series reference help align specifications and future reorders, supporting consistent hardware use across projects. Use these verified details to match this soft-close surface mount damper hinge to lids that benefit from controlled, non-slamming motion.
