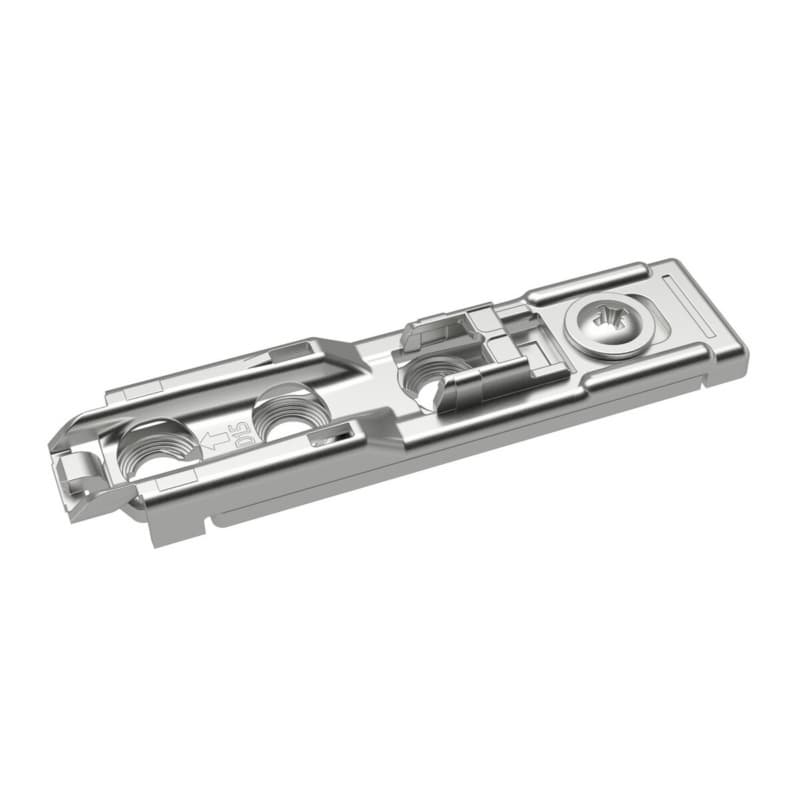

Hettich linear mounting plate with direct height adjustment is a hinge mounting plate designed for Sensys, Novisys and Intermat systems, so it ties the door hinge to the cabinet side in a matched hardware family. As a hinge mounting plate in steel, it provides a solid interface between the hinge arm and the cabinet, which supports consistent alignment across a run of doors. The distance 3.0 mm specification defines the mounting plate height from the cabinet surface, which sets the base position for overlay and gap. The quality classification under EN 15570, Level 3 describes the performance class of the hinge system, giving you a defined standard for demanding furniture applications. As part of the Hinge Mounting Plates category, it fits into typical cabinet construction workflows where separate plates are preferred for adjustability and service.
This hinge mounting plate is designed for installation for screwing on, so it attaches directly to the cabinet with screw-on fastening, fitting standard carcass construction processes. The hole line 20 x 32 mm specification means the mounting positions align with a 20 mm vertical and 32 mm horizontal hole pattern, matching widely used system rows. The direct height adjustment design lets you adjust the plate height relative to the cabinet without extra components, which helps fine-tune door position. The distance 3.0 mm baseline and the adjustment range + 2 mm / - 2 mm work together to provide a total vertical adjustment window around the nominal setting, useful when doors need slight repositioning after installation.
This linear mounting plate is for Sensys, Novisys and Intermat hinges, so it fits projects that use these Hettich hinge families in cabinet construction. The plate sits on a hole line 20 x 32 mm, which suits cabinets built around a 32 mm system row, whether from panel processing equipment or line-boring jigs. As a hinge mounting plate in the Hinges | Hinge Base Plates category, it works in base, wall, or tall cabinets where a separate base plate is part of the hinge layout. The installation for screwing on allows use in cabinets made from a range of substrates, since the plate is fastened by screws rather than press-in components. The distance 3.0 mm design positions the hinge arm at a defined offset from the inside cabinet surface, supporting consistent reveals when used with matching drilling distances on the door. With steel nickel plated construction, it visually coordinates with nickel plated hinge arms in modern cabinet interiors, which creates a uniform hardware appearance when doors are open.
The direct height adjustment feature means the mounting plate itself provides vertical adjustment for the hinge connection, so the installer can move the door up or down at the cabinet side. Its adjustment range + 2 mm / - 2 mm gives a 4 mm vertical window around the nominal distance, allowing fine corrections after doors are hung. This range, combined with the fixed distance 3.0 mm, lets you set a repeatable starting geometry and then dial in final gaps on site, which is valuable on long cabinet runs where small dimensional variations appear. Because the plate follows the hole line 20 x 32 mm, adjustments happen relative to a consistent system row, helping doors line up across multiple cabinets in a bank. The steel nickel plated body holds the adjusted position once set, supporting stable alignment during regular door operation. Used with Sensys, Novisys or Intermat hinges, this hinge mounting plate helps translate the hinge system's adjustment capability into precise, repeatable door positioning in everyday cabinet use.
This Hettich linear mounting plate is for Sensys, Novisys and Intermat hinges, so it serves as the cabinet-side base for these hinge families in furniture projects.
The 3.0 mm distance sets the mounting plate height from the cabinet surface, which defines the hinge geometry and helps establish predictable door overlay and gap.
The hole line 20 x 32 mm matches a system row with 20 mm spacing and 32 mm cross pattern, fitting standard 32 mm cabinet construction layouts.
The linear mounting plate has an adjustment range + 2 mm / - 2 mm, so the hinge position can shift vertically within that window to refine door alignment.
This hinge mounting plate is designed for screwing on, so it is fastened directly to the cabinet with screw-on installation in the 20 x 32 mm pattern.
The EN 15570, Level 3 quality classification indicates the hinge system is rated within this performance class, aligning it with a defined European hinge standard.
This Hettich linear mounting plate with direct height adjustment distance 3.0 mm, screw on, brings a defined EN 15570 Level 3 hinge component into Sensys, Novisys and Intermat-based cabinets. For projects using a 20 x 32 mm hole line and nickel plated steel hardware, this hinge mounting plate from Wurth Baer Supply offers a system-matched base that supports adjustable, repeatable door alignment.
Sold In: 1 Each
