ECODRILL Boring Template for Hinge Pattern

ECODRILL Boring Template For Accurate Hinge Pattern

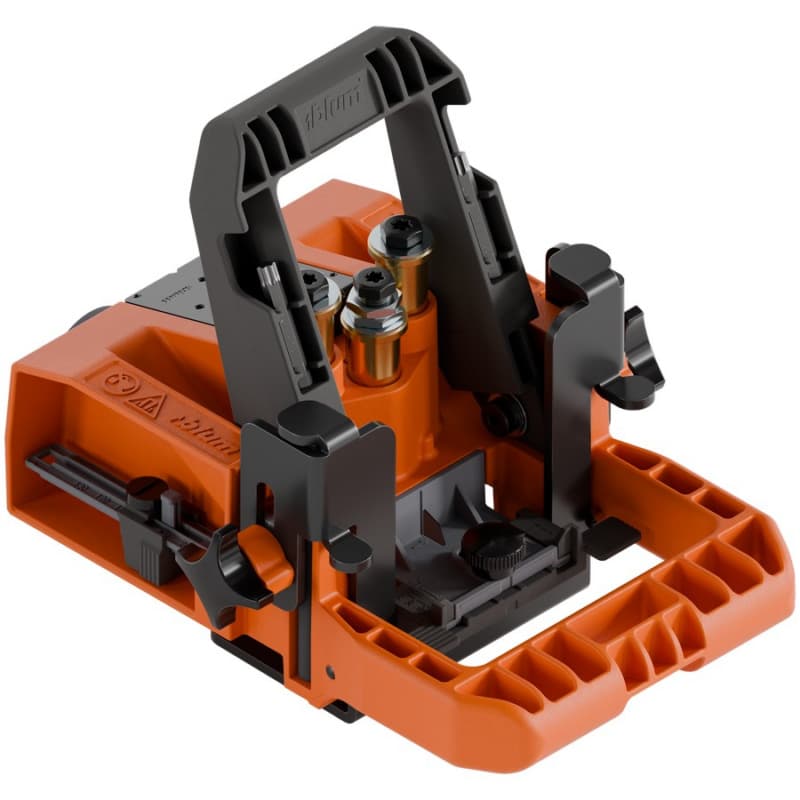

ECODRILL Boring Template for Hinge Pattern is a hinge installation tool from Blum, Inc. that guides boring for the Blum hinge pattern, so hinge cup holes line up consistently on cabinets and doors. This tool is designed as a simple device for boring the Blum hinge pattern, which helps installers repeat the same layout from door to door without constant measuring. Because it is part of the Hinge Installation Tools class, it focuses on accurate drilling for the hinge cup location, supporting repeatable hinge alignment on jobs where multiple doors match. The template is identified by manufacturer part number 07148933, giving shops a clear reference when standardizing tools across crews or locations. As a hinge accessory in the Hinges category, it fits naturally into a cabinet hardware workflow where accurate hinge positioning directly affects how doors sit, move, and look once installed.

Key ECODRILL Details That Support Precise Work

• The template is described as a simple device for boring the Blum hinge pattern, which lets installers follow a fixed layout instead of marking each cup position, reducing layout time on repetitive cabinet runs.
• Being classified under Hinge Installation Tools means the ECODRILL is focused on guiding hinge-related boring, so tradespeople can dedicate it to that task and keep general drilling tools for other work.
• Placement within the Hinges and Hinge Accessories category connects this tool directly to hinge hardware selection, allowing installers to align hinge choice and boring method in a single workflow.
• The Blum, Inc. brand identification ties the tool to the same manufacturer as the hinge pattern it is meant to bore, which supports consistent geometry when using Blum hinge systems on cabinet doors.
• Use of the specific manufacturer part number 07148933 helps purchasing staff and installers reference the exact template, streamlining reorders or standardization across multiple job sites.

Installation Workflow Using Drill-Powered Boring Tool

The ECODRILL device is driven by an electric or cordless drill rated at 18V or higher, so installers can integrate it directly into typical cordless tool setups already on site. Because it uses drill power, the boring action is consistent with the drill speed, allowing users to match feed to material and reduce strain during repetitive hinge cup work. The tool clamps to various door thickness up to 40 mm, which lets it grip doors of different stock sizes while holding the boring position steady. This clamping action supports stable drilling when working on standard or thicker doors, helping the hinge cup holes stay aligned. By combining drill drive and integrated clamping, the ECODRILL fits into a workflow where the door is secured, the drill engages the jig, and hinge cups are bored in a controlled, repeatable manner.

Using This ECODRILL Template In Cabinet Work

Where This Hinge Cup Boring Jig Is Applied

The ECODRILL Boring Template for Hinge Pattern is used wherever the Blum hinge pattern is required on cabinet or furniture doors, so hinge cups land in the correct geometry for those hinges. Because it bores the Blum hinge pattern specifically, it suits projects built around Blum hinge layouts, from single custom cabinets to full kitchen runs. As a hinge installation tool under the Hinges and Hinge Accessories category, it fits into shop and site workflows where doors are prepared for cup hinges before mounting hardware to cases. The clamp design that works on door thickness up to 40 mm lets the same jig handle a range of door builds, from thinner cabinet fronts to thicker doors within that limit, so crews can keep one setup across multiple materials.

How Adjustable Boring Distance Supports Repeatable Results

The ECODRILL boring distance adjusts from 2 mm to 8 mm, setting how far the hinge cup sits from the door edge, which is critical for hinge function and reveal. This adjustment range allows installers to match the Blum hinge pattern to different overlay or reveal needs defined by the job design, while staying within the supported distance window. Because the boring distance is adjustable rather than fixed, crews can set a value once for a run of doors, then repeat that setting across all doors in the series, keeping reveals and door gaps more uniform. The tool is driven by an electric or cordless drill of 18V or higher, so once the boring distance is set, the drill power and jig guidance work together to bore multiple cups with the same spacing. With drill bits pre-installed in the device, the boring path is established for the hinge pattern, which helps reduce setup time at the start of a project and keeps each cup hole aligned with the pattern.

Common Questions About ECODRILL Hinge Boring Use

Select This ECODRILL Template For Blum Hinge Layouts

The ECODRILL Boring Template for Hinge Pattern from Blum, Inc. combines a Blum hinge pattern guide, an adjustable 2 mm to 8 mm boring distance, and clamping up to 40 mm door thickness, giving installers a focused hinge installation tool for repetitive Blum-based cabinet work.
