Inset Hinge Wrought Iron For Quiet Cabinet Doors

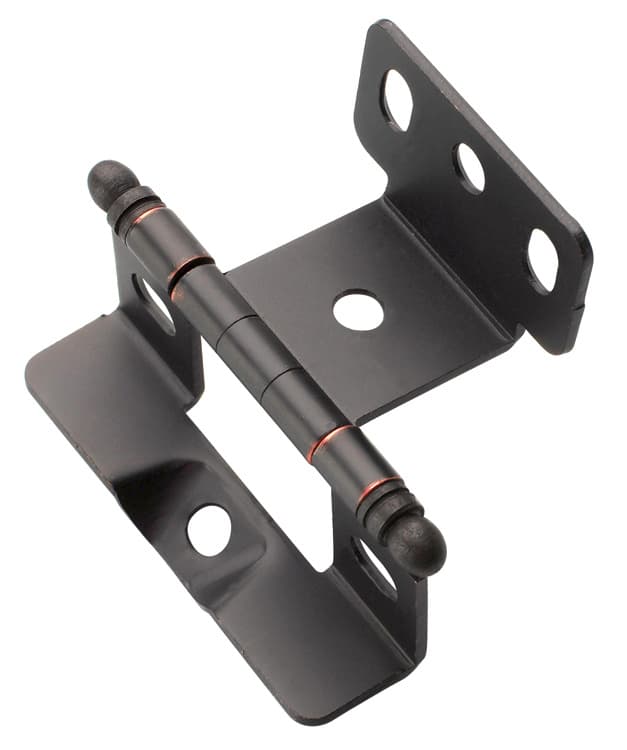

Inset hinge wrought iron describes this Amerock Corporation semi-concealed, non-mortise hinge designed for inset cabinet doors on face-frame construction. The hinge uses an exclusive pin treatment that delivers silent and reliable performance, so doors swing without unwanted noise over repeated openings. As a free swinging design, the hinge allows the door to move smoothly through its travel, which helps doors feel consistent across a bank of cabinets. The non-mortise construction means the hinge works without cutting pockets into the door frame, reducing steps on the bench and preserving frame strength. Its ball tip detail on the hinge leaves a finished look at the barrel, which suits visible face-frame applications where appearance matters alongside function. The wrought iron finish presents a dark, traditional look that coordinates with similar hardware finishes to keep a project visually consistent.

Key Non-Mortise Inset Hinge Job Advantages

• The exclusive pin treatment provides silent and reliable performance, which keeps door movement smooth in kitchens, shops, and built-ins where repeated use would otherwise highlight noisy or inconsistent hinges.
• The angled set hold simplifies installation by stabilizing the hinge position, which helps keep the leaf from drifting during fastening and supports more accurate horizontal and vertical alignment on face frames.
• The same angled set hold also allows easy horizontal and vertical adjustments after initial placement, so installers can fine-tune reveals and door alignment without reworking the frame or door edge.
• Inter levered wings are designed to minimize the door gap to as small as 1/16 inch, creating tight, even reveals that suit inset cabinetry where small variations are highly visible along frame edges.
• The hinge eliminates the need to mortise the door frame, which saves routing or chiseling time, avoids tear-out on finished frames, and lets doors be hung later in the workflow with fewer prep operations.

Non-Mortise Inset Hinge Mounting And Adjustment

This Amerock semi-concealed, non-mortise hinge is intended for inset doors on face-frame cabinets, so the leaves mount directly to the frame and door surfaces without recess cuts. The angled set hold feature contributes to a steadier installation, because it helps position the hinge while fasteners are driven, reducing hinge creep. That same design supports straightforward horizontal and vertical adjustment, letting installers shift the door position slightly to correct minor layout variations. Since the hinge design does not require mortising the door frame, layout is focused on accurate screw locations rather than routing patterns, which streamlines on-site or shop fitting. The resulting controlled gap, down to approximately 1/16 inch, supports tight-fitting inset work with consistent reveals.

Using Amerock PK3175TBWI Hinges In Cabinet Work

Where This Wrought Iron Cabinet Hinge Fits Best

The Amerock PK3175TBWI hinge is a semi-concealed face-frame hinge for inset doors, so it fits projects where the door closes inside the frame opening rather than overlaying the face. This makes it suitable for cabinetry that favors tight reveals and a framed, furniture-style appearance. The inter levered wings are designed to bring the door gap down to about 1/16 inch, which is useful on built-ins, kitchen cabinets, and vanities where uniform lines around each door edge are part of the finished look. Because the hinge is non-mortise, it works well in shops or job sites that prefer surface-mounted solutions to avoid routing jigs and extra passes. The wrought iron finish supports designs calling for a dark, traditional hardware accent on face-frame cabinets.

How Design Details Support Clean, Repeatable Results

The exclusive pin treatment provides silent, reliable performance, so doors open and close quietly and consistently, which helps maintain a uniform feel across multiple doors in a run. The angled set hold simplifies installation by helping stabilize the hinge location during fastening, supporting repeatable hinge placement from cabinet to cabinet without drifting off layout lines. That same feature allows straightforward horizontal and vertical adjustment, giving installers a way to bring doors into final alignment after mounting instead of redrilling holes. By eliminating the need to mortise the door frame, the hinge reduces variability introduced by routing depth or template wear, which supports more predictable gaps and faster fitting. The inter levered wings that minimize the door gap to around 1/16 inch help produce a crisp, controlled reveal line, so once adjusted, doors sit evenly relative to the frame. These combined details support an efficient workflow from layout through final adjustment on inset cabinet jobs.

Common Questions About This Inset Hinge Design

Selecting This Inset Hinge For Precise Cabinet Work

The Amerock Corporation PK3175TBWI inset hinge combines non-mortise construction, an exclusive quiet pin treatment, and inter levered wings that reduce door gaps to around 1/16 inch, giving installers a practical option for precise inset cabinetry. The angled set hold simplifies both initial placement and later adjustment, which helps bring multiple doors into alignment efficiently across a run of cabinets. For projects calling for face-frame inset doors with a dark wrought iron finish and tight, predictable reveals, this semi-concealed hinge offers a focused solution ready to be applied on shop-built or on-site cabinet work.
