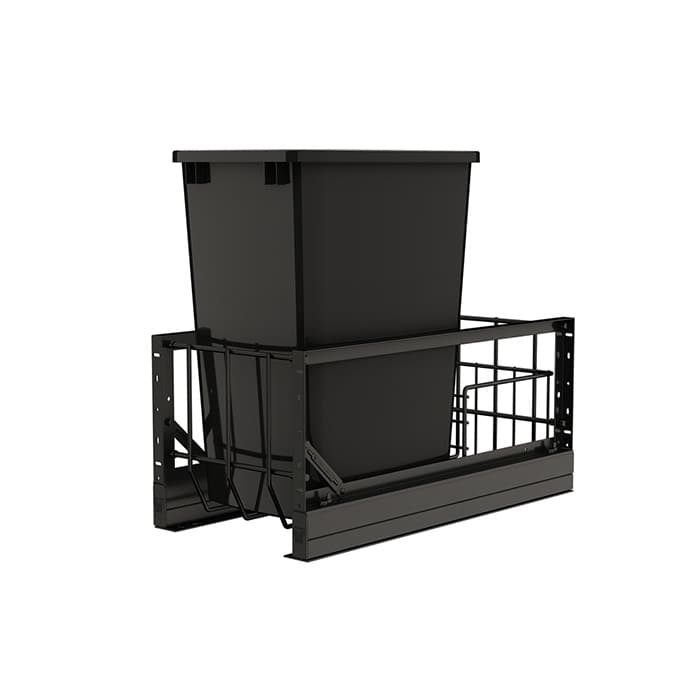

This Rev-A-Shelf 5349 series waste pullout brings a 35 quart black bin inside a base cabinet, rolling it out on full-extension slides and closing it back in quietly with a built-in soft-close mechanism.
The 5349 series is built for base cabinets where the trash stays out of sight until the door swings open. The carriage mounts to the cabinet floor on bottom-mount slides, so the full 35 quart bin clears the cabinet interior when pulled out without hitting a rail above. That bottom-mount geometry works especially well under a countertop with limited overhead clearance inside the cabinet. The door-mount bracket connects the bin carriage to the door itself, so a single pull on the cabinet door rolls the trash forward and the door swings clear in the same motion. Pair the door bracket with a standard overlay door and the whole system disappears when closed.
Both the carriage frame and the 35 quart bin are black, which keeps the interior of the cabinet consistent rather than splitting a colored carriage against a white bin. The soft-close mechanism is integrated into the slides rather than added as a clip-on, so it does not require adjustment after install. The unit arrives assembled; install it to the cabinet floor, attach the door bracket, and the pullout is ready. The carriage fits a 10-3/4 inch unit width and requires a minimum cabinet opening of 11 inches wide, 22-1/2 inches deep, and 20-1/2 inches tall.
This pullout suits a kitchen remodel or new cabinet build where the designer or homeowner wants trash contained and the cabinet interior to read cleanly in a dark or two-tone color scheme. Cabinet shops running black or graphite hardware packages through a job will find the all-black finish easier to spec consistently than a mixed-finish carriage. It also works in a utility room, a mudroom base cabinet, or any space where a contained 35 quart bin makes sense and the cabinet opening matches the minimum dimensions above. For a larger capacity or a double-bin setup, step up to a wider carriage in this series.
One 35 quart black bin is included with the carriage. The unit ships assembled with the bin in place.
The cabinet opening needs to be at least 11 inches wide, 22-1/2 inches deep, and 20-1/2 inches tall. Measure all three dimensions before ordering, since the depth and height requirements catch some cabinets that have the right width but not enough depth or clearance.
Yes. The carriage is door-mount compatible. A door-mount bracket attaches the carriage to the cabinet door so the bin rolls out when the door opens. Confirm whether a door-mount bracket is included with your configuration or ordered separately.
Soft-close is integrated into the slide mechanism on this unit. It does not clip on or require separate installation.
The 5349 series in black puts a 35 quart bin behind a cabinet door, rolls it to full reach on soft-close slides, and keeps the interior finish consistent with an all-black carriage and bin.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Kit |  RS5345-DM18-KIT1 Mfr# 5345-DM18-KIT-1 | Rev-A-Shelf 5349 Series Black Door Mount Kit, 4-9/16"W x 1-31/32"H x 31/32"D - 5345-DM18-KIT-1 | ||||
Sold in: 1 Package | RS5345-DM18-KIT25 Mfr# 5345-DM18-KIT-25 | Rev-A-Shelf 5349 Series Black Door Mount Kit, 4-9/16"W x 1-31/32"H x 31/32"D - 5345-DM18-KIT-25 |
