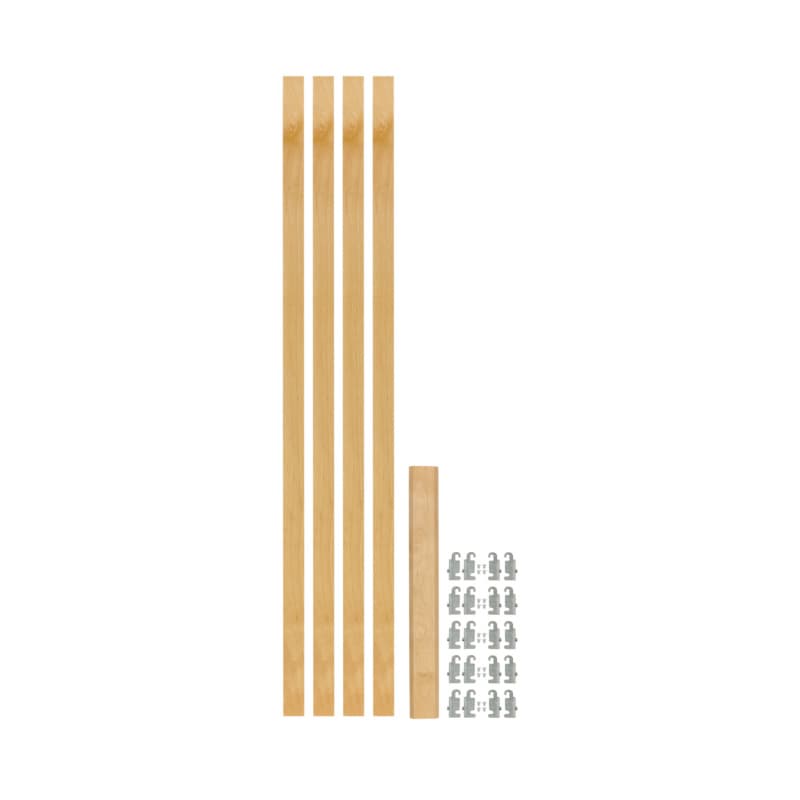

(4) 49-7/8" x 1-1/8" Wood Pilaster System Uprights 5 Pilaster Hardware Sets

Rev-A-Shelf Wood Pilaster System For Custom Storage

Rev-A-Shelf wood pilaster system provides four 49-7/8 x 1-1/8 natural maple pilaster uprights that mount to cabinet sides, so you can build adjustable shelf or drawer support inside base or tall cabinets using a consistent layout and hardware interface.

The uprights are designed as a pilaster system for tall cabinets, which means they create vertical support tracks that accept the pilaster bracket kits, turning open interiors into organized storage runs that follow a planned spacing pattern for repeatable layouts.

Width is trimmable down to 7/8, so each upright can be cut to match cabinet side clearance, allowing you to fit the system to varying interior widths while keeping the pilaster alignment consistent from cabinet to cabinet in a project.

The system uses natural maple construction with a semi-gloss finish that provides a cabinet-grade look, which helps the hardware blend into high-visibility interiors where clients expect wood components rather than exposed metal standards.

No visible pilaster system holes on the uprights means the adjustment hardware is concealed, giving finished cabinet interiors a cleaner appearance while still supporting bracket positioning needed for drawer boxes or shelves.

Work-Ready Pilaster Details For Cabinet Projects

• Four 49-7/8 x 1-1/8 pilaster uprights give you consistent vertical rails in multiple cabinets, which helps keep drawer box heights and shelf spacing uniform across a run of base or tall units.
• Width is trimmable down to 7/8, so installers can rip the uprights to clear hinges or face frames, maintaining the pilaster function even in tight or offset cabinet interiors.
• Pilaster uprights can be stacked to reach desired height, allowing use in tall cabinets that exceed a single upright length while keeping bracket locations aligned over the full usable interior.
• The system is designed for any tall cabinets, giving flexibility to deploy the same hardware concept in pantry-style units, tall utility cabinets, or other extended-height casework.
• Natural maple construction with semi-gloss finish creates a uniform wood appearance that coordinates with many cabinet interiors, reducing visual contrast when doors are opened on finished installations.
• This unit holds 90 lbs per shelf, so each supported shelf or drawer level can be loaded for typical household storage without over-stressing the pilaster-based support structure.

Pilaster Mounting And Layout For Clean Installs

The pilaster uprights mount to the cabinet side, establishing a stable backbone for drawer boxes or shelves that rely on the pilaster bracket kits, so installers can tie all moving components back to solid vertical supports within the case.

Patent pending right and left brackets that can be used in the front and back allow the same bracket style to serve both sides of a cabinet, which simplifies orientation during installation and reduces layout errors when setting multiple levels.

The system uses pilaster uprights only, compatible with wood drawer boxes from Rev-A-Shelf or user-supplied boxes, so fabricators can standardize on one pilaster rail and bracket pattern while choosing drawer box construction that fits their shop workflow.

A wood mounting template is part of the system description, giving a reference for placing the pilaster uprights, which helps maintain consistent setback and spacing so that drawer slides or shelves line up accurately throughout the cabinet height.

Using This Pilaster System In Cabinet Builds

Pilaster Uprights For Tall And Base Cabinets

The 49-7/8 x 1-1/8 pilaster uprights are designed for any tall cabinets, so they serve in pantry height installations where multiple pull-out shelves or drawer boxes are needed on closely spaced levels.

Because the uprights can be stacked to reach desired height, the same Rev-A-Shelf wood pilaster system can extend from lower to upper sections of a tall cabinet, letting installers run support continuously behind face frames or between partitions.

Mounts to cabinet side describes a side-wall installation method, which means the uprights sit against the interior panels of base or tall cabinets, keeping the system out of the cabinet opening and preserving clear access for boxes and shelves.

The pilaster uprights are compatible with wood drawer boxes from Rev-A-Shelf or user-provided boxes, so shops can integrate existing box programs into cabinets that still benefit from the pilaster layout and bracket adjustability.

Designed as a base cabinetry organizer and filler component, the system fits into kitchen or bath cabinet projects where designers need vertical adjustment points for storage while keeping interior hardware visually subdued.

Natural maple construction with a semi-gloss finish allows the uprights to sit comfortably in both light and medium-tone interiors, so they do not dominate the cabinet appearance when combined with matching drawer boxes or shelves.

Bracket Design, Load Rating, And Fit Results

Patent pending right and left brackets that can be used in the front and back mean each pilaster bracket kit is flexible in orientation, which helps installers keep bracket pairs square across the cabinet depth and reduces rework when spacing levels.

No visible pilaster system holes on the uprights means the bracket engagement does not rely on an exposed perforated strip, so the visible interior remains smooth while still offering the necessary engagement points for the pilaster hardware.

This unit holds 90 lbs per shelf, giving a defined load capacity per supported level, which helps specifiers assign the system to pantry or base cabinet locations that see heavier household items without redesigning the storage plan.

The wood mounting template described in the system information establishes reference locations for the pilaster uprights, and that repeatable placement translates into drawer slide and shelf positions that track correctly from cabinet to cabinet.

Pilaster uprights that are trimmable down to 7/8 allow fine-tuning in situations where cabinet sides vary slightly in width, so installers can cut each upright to suit on-site and still maintain the rail face position for bracket alignment.

The Rev-A-Shelf Corporation part number 4PIL-50-113-1 identifies this specific combination of pilaster uprights and pilaster hardware sets, helping shops reorder the same system when expanding a job or matching an existing installation layout.

Common Questions About This Wood Pilaster System

Selecting This Pilaster System For Cabinet Work

This 4PIL-50-113-1 Rev-A-Shelf wood pilaster system combines four 49-7/8 x 1-1/8 natural maple uprights with pilaster hardware details that support 90 lbs per shelf, making it a focused choice when planning adjustable storage in tall or base cabinets.
