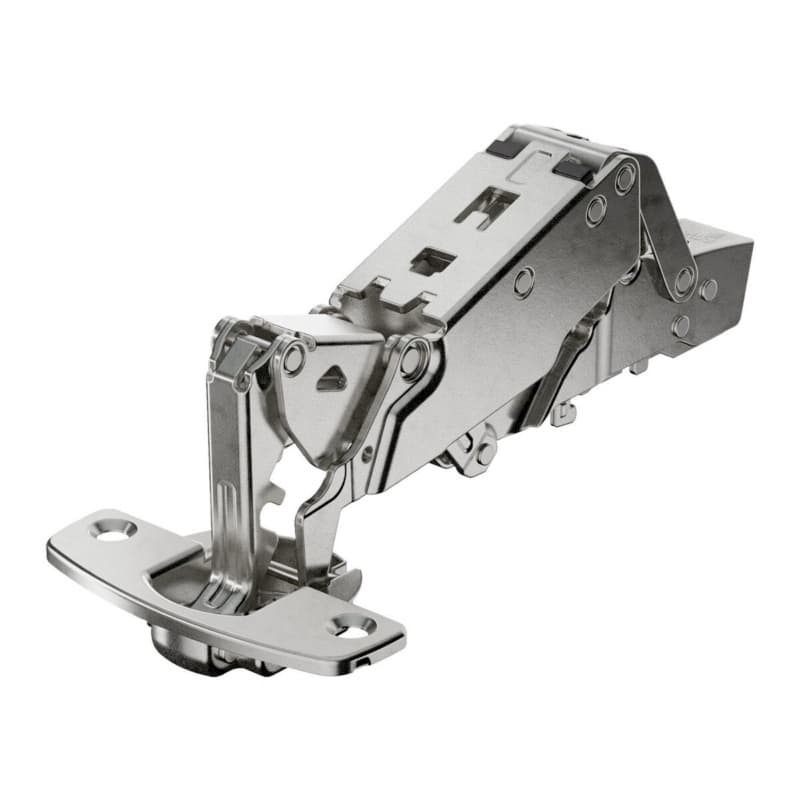

Name: Hettich Sensys Self-Close Silent System Hinge, Full Overlay, 165 Degrees, Screw On - 9099620
Brand: Hettich America Corporation
SKU: HT9099620
Availability: BackOrder

Sensys wide angle hinge, with zero protrusion
Without Silent System, with self closing feature (Sensys 8657)
Quality classification under EN 15570, Level 3
Opening angle 165°
For door thickness 15-32 mm
Door mounting option overlay (B 12.5 mm)
TB - drilling pattern 45 x 9.5 mm
Cup depth 11.6 mm
Installation for screwing on (TB 52)
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
steel / die-cast zinc nickel plated
