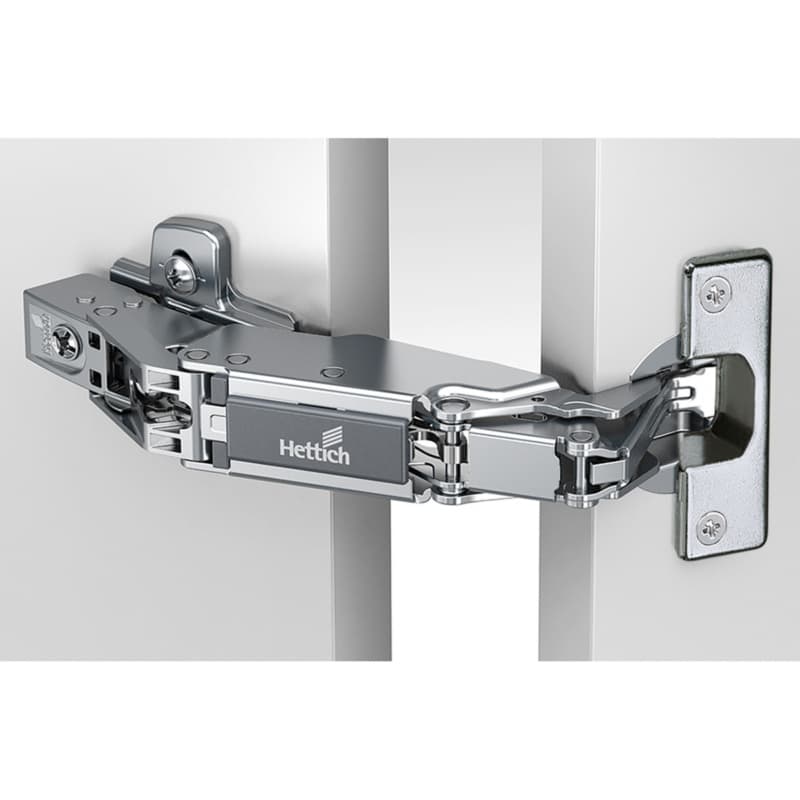

Hettich Sensys Self-Close Hinge For Wide Door Swing
Hettich Sensys self-close hinge uses a concealed zero protrusion design so the hinge arm stays out of the cabinet interior, allowing optimum use of storage space when doors are opened. This Sensys wide angle hinge opens to 165 degrees, so doors can swing well clear of the opening and give better access to the cabinet. The full overlay design supports layouts where the door fully covers the cabinet side or face frame area. A built-in self-close function pulls the door shut through a wide automatic closing angle of 35 degrees, which helps panels settle into a consistent closed position. The integrated temperature stable damper is rated for a range from 41 F to 104 F (5 C to 40 C), so the closing action remains stable in typical indoor conditions during normal shop or household use.
Key Sensys 165 Degree Hinge Details In Practice
- The Sensys wide angle hinge with zero protrusion keeps the hinge arm out of the interior space, which supports drawer boxes or pull-outs inside the cabinet without the hinge interfering with their movement.
- The 165 degree opening angle allows the door to open very wide, which improves access for loading, unloading, or adjusting interior hardware in deeper cabinets or storage compartments.
- The self-close function combined with a 35 degree automatic closing angle helps doors pull themselves from partially open to fully closed, which reduces manual effort during everyday use.
- The temperature stable damper designed for 41 F to 104 F (5 C to 40 C) maintains a consistent damping response, which supports predictable closing behavior across common indoor temperature swings.
- The hinge is classified under EN 15570, Level 3, which indicates a tested performance category that supports demanding cabinet applications in regular service.
- The steel nickel plated construction gives the hinge a hard metal body with a nickel surface, which contributes to durability and a clean appearance inside the cabinet.
Mounting And Adjustment Details For Accurate Fit
This concealed cabinet hinge is a full overlay Sensys wide angle hinge designed for door thickness from 15 mm to 32 mm, which covers many common cabinet door constructions. The cup depth is 11.6 mm, so the hinge requires a matching bore depth in the door to sit correctly. Integrated overlay adjustment of plus 2 mm to minus 2 mm lets the door position be shifted sideways relative to the cabinet for gap alignment. Integrated depth adjustment of plus 3 mm to minus 2 mm sets how the door sits in or out from the cabinet front, which is important when aligning multiple doors. Height adjustment is handled at the mounting plate, so vertical door gaps can be tuned on the installed hinge set.
Using The Sensys 165 Degree Hinge On Cabinets
Where This Concealed Cabinet Hinge Fits Best
This Sensys wide angle hinge serves as a concealed cabinet hinge that suits European standard hinge layouts where a full overlay relationship is required on face frame or frameless cabinetry. The zero protrusion design means that when the cabinet door is opened, the hinge arm does not project into the cabinet interior, which benefits cabinets that use interior organizers or deep pull-outs. A door thickness range of 15 mm to 32 mm allows the hinge to support many common solid, veneer, or composite door builds used in general woodworking. The 11.6 mm cup depth defines the bore pattern needed in the door, which is useful when boring doors in production runs so the hinge seats flush and operates correctly. With a 165 degree opening angle, this hinge is suitable in layouts that need wide access, such as corner cabinets or storage cabinets that must open broadly for clear reach.
Why Sensys Adjustments Support Repeatable Results
The integrated overlay adjustment of plus 2 mm to minus 2 mm lets installers fine tune the side-to-side door position directly on the hinge arm, which helps create even reveals between adjacent doors without re-boring holes. Integrated depth adjustment of plus 3 mm to minus 2 mm allows the door front to be moved toward or away from the cabinet face, which is important for bringing multiple doors into the same plane on longer cabinet runs. Height adjustment located at the mounting plate gives a separate control point for vertical positioning, which supports straight alignment of top and bottom edges relative to cabinet rails. The wide automatic closing angle of 35 degrees means that once the door passes that point, the self-close feature engages and draws the door home, which aids consistent closing behavior across a bank of doors. The temperature stable damper operating between 41 F and 104 F (5 C to 40 C) supports reliable closing action in normal interior climates, which helps keep door motion uniform throughout seasonal temperature changes inside occupied spaces.
Common Questions About This Sensys 165 Degree Hinge
What type of hinge is the Hettich 9099771?
The Hettich 9099771 is a Sensys wide angle concealed cabinet hinge, so it mounts out of sight and provides a 165 degree door opening for better cabinet access.
How does the zero protrusion design affect cabinet storage?
The zero protrusion design keeps the hinge arm out of the cabinet interior when the door is open, which helps interior drawers or pull-outs move without contacting the hinge.
What door thickness range does this hinge support?
This Sensys hinge supports door thickness from 15 mm to 32 mm, so it can work with many standard cabinet door constructions used in woodworking projects.
How do the overlay and depth adjustments help alignment?
The integrated overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm allow fine tuning of gaps and door position after mounting.
Why is the EN 15570 Level 3 classification important?
The EN 15570 Level 3 classification indicates the hinge meets a defined performance level, which supports its use in demanding cabinet applications.
What does the temperature stable damper do in this hinge?
The temperature stable damper keeps the closing action consistent between 41 F and 104 F (5 C to 40 C), which helps the door close predictably in typical indoor conditions.
Selecting This Sensys Hinge For Your Project
This Sensys wide angle concealed cabinet hinge from Hettich America Corporation brings together a 165 degree opening angle, zero protrusion design, and self-close function for full overlay cabinet doors. With specified door thickness from 15 mm to 32 mm, an 11.6 mm cup depth, and integrated overlay, depth, and height adjustments, it supports accurate door alignment in European standard hinge layouts. The steel nickel plated construction and EN 15570, Level 3 classification further define its role as a concealed cabinet hinge suited to demanding cabinetry. For projects that need wide access and efficient interior space use, this hinge configuration offers a clearly defined option.
