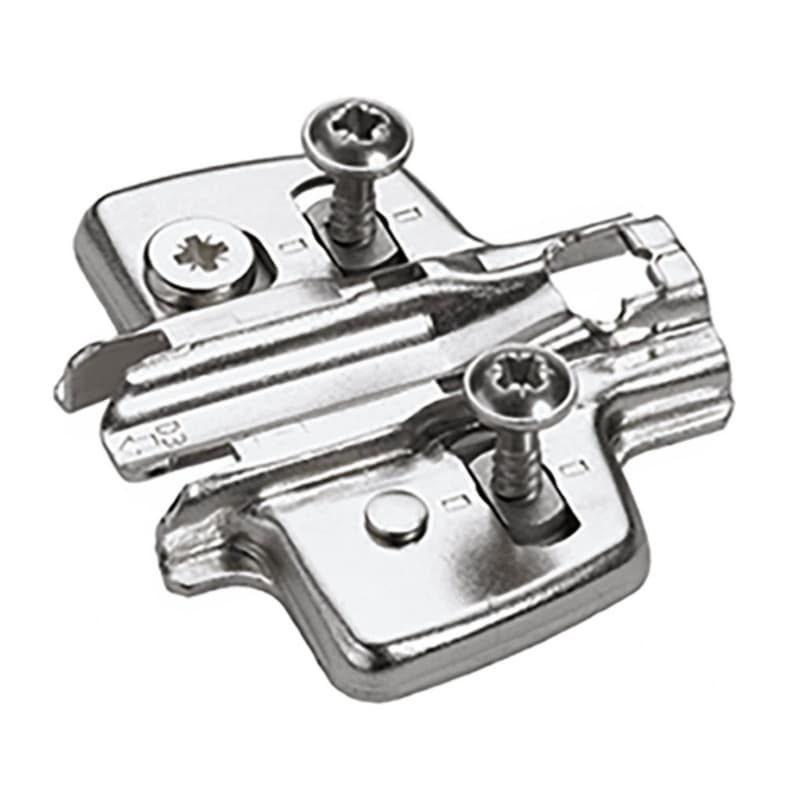

Adjustment steel cross mounting plate gives you a precise base for modern cabinet hinges, so doors sit where you set them and stay aligned over time. This Hettich America Corporation hinge mounting plate is designed for Sensys and Intermat hinges, tying directly into their geometry for consistent door gaps across a run of cabinets. The 0mm plate height keeps the hinge arm close to the cabinet side, which supports standard overlay layouts using these systems. The nickel-plated finish protects the steel plate surface, which helps the clamping mechanism work smoothly during adjustment and over repeated use. Direct height adjustment built into the plate lets you shift door position without altering drilling, so you can fine-tune reveals after the casework is installed. The plate belongs to the hinge mounting plates product class, so it serves as the structural connection between hinge arm and cabinet.
This 0mm cross mounting plate is designed for installation with chipboard screws, so it mates directly to cabinet sides or panels drilled for those fasteners. The mounting pattern is set for a 37mm x 32mm hole line, which matches common system drilling in modern casework and speeds setup on line-bored cabinets. A drilling diameter of 2.5mm is specified for the screw holes, giving the chipboard screws proper bite in typical cabinet materials and helping the plate clamp securely. The built-in direct height adjustment provides an adjustment range of plus 2mm to minus 2mm, so you can shift the door position vertically relative to the cabinet without relocating the plate. That integrated cam-style movement supports precise alignment and helps remove minor racking or reveal variation after the hinges are installed.
This hinge mounting plate is specified for Sensys and Intermat hinges, so it fits projects already planned around those systems in kitchens, baths, or commercial casework. The 37mm x 32mm hole line makes it suited to cabinets drilled on a standard system line, where plates must land exactly on pre-bored rows. With a 0mm height, the plate supports layouts where the hinge arm sits close to the cabinet side, tying into overlay and reveal dimensions based on these particular hinge families. Installation with chipboard screws and a 2.5mm drilling diameter matches typical particleboard or similar substrate construction, so it works naturally in many panel-based cabinet builds. Because the plate is nickel-plated steel, it suits interior cabinet environments where metal components interact with hinges and door movement every day.
The direct height adjustment built into this plate, with a plus 2mm to minus 2mm range, gives you room to correct minor drilling tolerances or hinge cup variations without reworking the case. That adjustment range lets you fine-tune door reveals along tall cabinets or banks of doors so vertical lines stay straight. Using a 37mm x 32mm hole line means the plate aligns with system-drilled furniture construction, which shortens setup time and helps maintain consistency between shop work and installation on site. The nickel-plated steel construction supports the clamping forces from chipboard screws and hinge arms, so the plate can hold its set position as doors are cycled. Quality classification under EN 15570, Level 3, places this hinge solution in a defined performance tier, which is important when doors are opened and closed many times every day in residential or commercial settings. Together, these details support repeatable hinge positioning and reduce the likelihood of rework once fronts are hung and aligned.
This mounting plate is specified for Sensys and Intermat hinges, so it matches their hinge arm geometry and supports correct overlay and alignment in cabinet installations using those systems.
The 0mm height positions the hinge arm close to the cabinet side, which affects overlay and reveal dimensions and supports layouts based on Sensys and Intermat drilling data.
The mounting plate installs with chipboard screws into a 37mm x 32mm hole line using a 2.5mm drilling diameter, so it secures directly to system-drilled cabinet sides or panels.
The plate provides direct height adjustment with a plus 2mm to minus 2mm range, allowing vertical correction of door position without relocating the mounting plate on the cabinet.
EN 15570 Level 3 classification places this hinge solution in a defined quality level, which is relevant where doors face frequent daily use and consistent performance is important.
The mounting plate is made from steel with a nickel-plated finish, which supports structural strength and provides a treated surface for the hinge interface and adjustment features.
This adjustment steel cross mounting plate with chipboard screw installation is built specifically for Sensys and Intermat hinges, so it fits projects based on those systems. The 0mm height, 37mm x 32mm hole line, and direct height adjustment from plus 2mm to minus 2mm give you defined geometry and workable adjustment for aligning doors on line-bored cabinets. Choosing this Hettich 9071670 mounting plate through Wurth Baer Supply connects your hinge layout to a nickel-plated steel solution classified under EN 15570, Level 3, ready for cabinet runs where consistent reveals and repeatable drilling patterns matter.
Sold In: 1 Each
