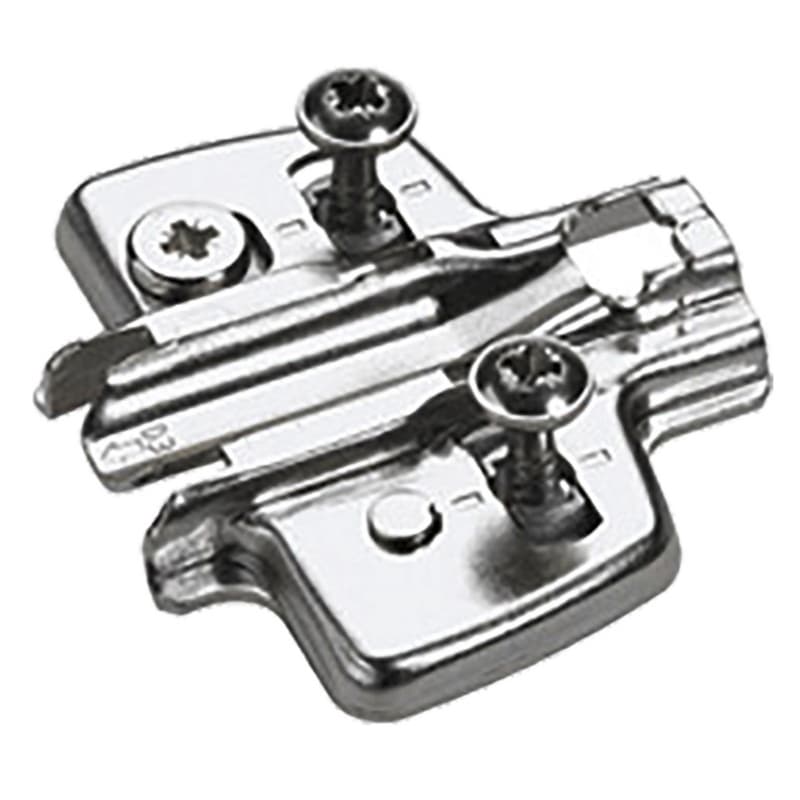

Sensys cam cross mounting plate describes a 0mm cross mounting plate that partners with Hettich Sensys and Intermat hinges, so it sets the hinge position without changing overlay, which matters when matching existing cabinet reveals across multiple doors. This plate belongs to the hinge mounting plates product class, so it acts as the fixed interface between the hinge arm and the cabinet, which keeps the hinge geometry stable while you use the cam for fine tuning. The design is specified as a face frame cross mounting plate, so it supports building or retrofitting face frame cabinets where a separate mounting plate is needed to bridge the frame. The manufacturer part number 9071655 clearly identifies this exact configuration, which matters when reordering or pairing it with documented drilling patterns in shop drawings.
The 0mm cross mounting plate height ties directly into hinge geometry, so using this plate on a face frame or panel that follows the 37 x 32 mm hole line keeps hinge arms and door gaps within the expected design envelope. The direct height adjustment built into the plate works within a plus 2 mm / minus 2 mm range, so an installer can dial door alignment vertically while keeping the hole line fixed. The dowelled construction combined with expanding sockets for 5 x 12 mm holes means the plate locates itself accurately in the drilled pattern, then locks in place as the sockets expand, which supports repeatable mounting across multiple openings. Because this plate is designed for Sensys and Intermat hinges, the mounting geometry matches those hinge arms, so once the plate is set on the cabinet, the hinge arm interfaces consistently on every door.
This 0mm cross mounting plate is specified for use with Sensys and Intermat hinges, so it fits projects built around those Hettich hinge systems in face frame or similar cabinet constructions. The plate is designed for a 37 x 32 mm hole line, so it integrates into cabinets drilled to this system pattern and keeps the hinge position relative to the door edge predictable from cabinet to cabinet. Installation uses expanding sockets in 5 x 12 mm drilled holes, so once those bores are prepared, the dowels align the plate automatically before expansion, which helps maintain a consistent hinge centerline. The dowelled design means the mounting load transfers through the dowels into the panel, which supports stable hinge performance when doors are opened and closed repeatedly.
The direct height adjustment in this plate, with its plus 2 mm / minus 2 mm range, lets an installer fine tune door reveal vertically while leaving the 37 x 32 mm hole line untouched, which keeps the drilling layout simple on production runs. Because the plate height is specified as 0mm, hinge overlay calculations that assume a zero-height plate remain accurate, which matters whenever multiple cabinets must align across a run. The plate is made from steel and nickel plated, so the steel provides a rigid base for the hinge connection while the nickel plating creates a corrosion-resistant surface that holds up in typical cabinet environments. The quality classification under EN 15570, Level 3, ties the plate to a defined performance level for hinges and related components, which matters when selecting hardware for doors that must meet that standard. As a hinge mounting plate in the Hinge Mounting Plates category, it forms the structural link between cabinet and hinge arm, so once this plate is chosen to match the hinge family and drilling pattern, the rest of the hinge installation follows predictable geometry.
This mounting plate is specified for Sensys and Intermat hinge systems, so it matches the hinge arm interface used by those Hettich hinges.
The plate height is 0mm, so it keeps the hinge arm close to the cabinet surface and preserves overlay calculations based on a zero-height plate.
The plate offers direct height adjustment of plus 2 mm / minus 2 mm, so you can shift the hinge and door vertically without altering the drilling pattern.
The plate is designed for a 37 x 32 mm hole line and installs in 5 x 12 mm drilled holes using expanding sockets, matching common system boring layouts.
The mounting plate is made of steel with a nickel-plated finish, giving a rigid base and a corrosion-resistant surface in typical cabinet applications.
The EN 15570 Level 3 classification links this plate to a defined hinge performance level, supporting use where that standard is required.
This Hettich America Corporation 0mm cross mounting plate, part number 9071655, pairs with Sensys and Intermat hinges, so it suits projects using those systems. The 37 x 32 mm hole line compatibility and 5 x 12 mm expanding socket installation match common shop drilling setups, which keeps layout predictable. The steel, nickel-plated construction and EN 15570 Level 3 classification ground the plate in defined material and performance criteria, so it can be specified confidently wherever that standard and hinge family are already in use.
Sold In: 1 Each
