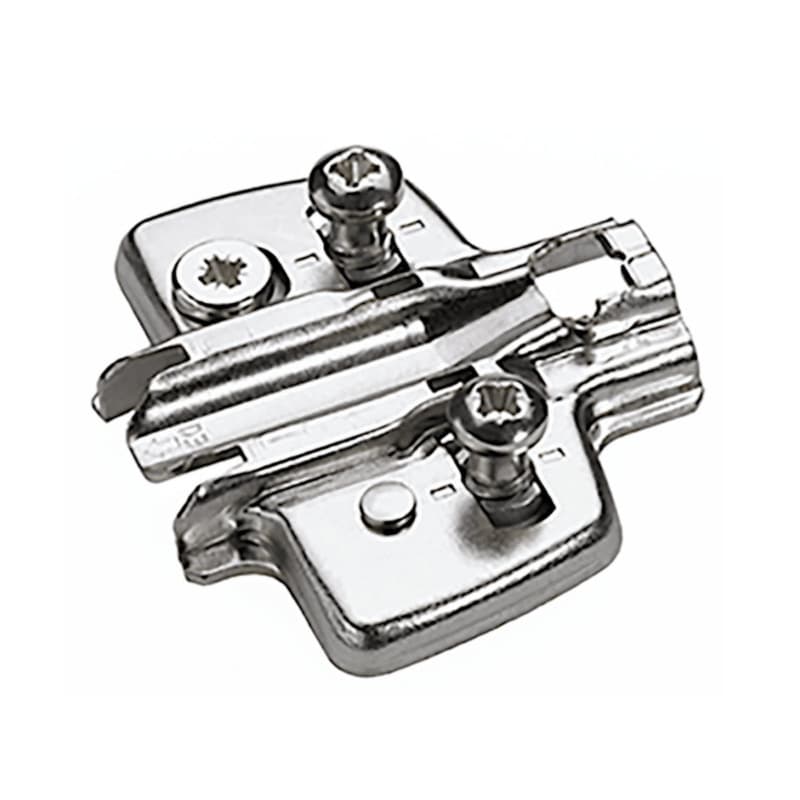

Adjustment steel cross mounting plate describes this Hettich America Corporation hinge mounting plate, so installers get a 0mm long cross mounting plate that sets the hinge position without adding height, which matters when matching existing lines across a cabinet run. The nickel-plated steel construction forms a rigid base for the hinge arm, which supports consistent door movement where multiple doors share a frame. This plate is designed for Sensys and Intermat hinges, so one part number covers both hinge families in the shop, which helps standardize layouts across similar cabinet programs. Direct height adjustment is built into the plate, so vertical fine-tuning happens at the mounting plate instead of the hinge cup, keeping adjustments accessible after doors are hung. The plate is classified to EN 15570, Level 3, so it is designed for demanding hinge applications where long-term function is important in everyday cabinet use.
This 0mm long cross mounting plate is designed for the standard hole line 37mm x 32mm, so cabinet sides drilled on that system line accept the plate without layout changes on new or repeat jobs. Installation with Euro screws matches drilling diameter 5mm and depth 8mm, so CNC or line-bored carcasses with that common hole size can receive the plate directly. The plate offers an adjustment range of +2mm / -2mm in height, so small vertical shifts can be made after doors are hung to bring reveals into line with drawer fronts or neighboring doors. The combination of defined hole line and Euro screw installation supports repeatable mounting across cabinet runs, which is useful when multiple installers are working from the same drilling program.
This hinge mounting plate is a hinge base plate in the Hinge Mounting Plates class, so it serves as the interface between Sensys or Intermat hinge arms and the cabinet side panel in a typical carcass. The plate is specified as 0mm long cross mounting plate, so hinge arms sit directly at panel level, which supports layouts where doors align closely to the cabinet side without added offset. It is suitable for half overlay doors from 16mm side panel thickness, so it matches many melamine, MDF, or plywood carcasses built to that thickness. The design for Sensys and Intermat gives shops using both hinge lines one mounting geometry, which helps carry a single drilling pattern across different cabinet series while still tailoring door overlay with hinge choice.
The direct height adjustment in this cross mounting plate provides an adjustment range of +2mm / -2mm, so small reveal variations from drilling or edging can be compensated at the plate, keeping door gaps visually consistent across a bank of cabinets. Positioning the adjustment at the mounting plate centralizes vertical tuning on the cabinet side, which aids repeatable setup because installers can readjust even after multiple hinge cycles. Installation with Euro screws, specified for drilling diameter 5mm and depth 8mm, ties directly into common system holes, which allows line-bored sides to accept the plate without additional drilling operations. The defined hole line 37mm x 32mm further supports repeatable positioning, so hinge arms land at predictable locations that match hinge manufacturer drilling data. With nickel-plated steel construction backing the hinge arm, the plate offers a stable base for the hinge mechanics, which supports consistent door action when cabinets are opened and closed in typical daily use.
This 0mm long cross mounting plate is designed for Sensys and Intermat hinges, so it connects those hinge arms to the cabinet side on compatible carcasses.
The mounting plate offers direct height adjustment with an adjustment range of +2mm / -2mm, which lets installers fine-tune vertical door gaps after mounting.
The hinge mounting plate is specified for half overlay doors from 16mm side panel thickness, aligning with common cabinet carcass constructions using that panel size.
Installation with Euro screws matches drilling diameter 5mm and depth 8mm, so cabinet sides with those system holes accept the plate using that screw type.
The plate is designed for a hole line 37mm x 32mm, which positions the hinge arm consistently when cabinet sides are drilled to that pattern.
The EN 15570, Level 3 classification places this hinge mounting plate in a demanding use category, suitable for frequently operated cabinet doors.
This adjustment steel cross mounting plate with Euro screw mounting gives installers a 0mm long cross mounting plate tailored to Sensys and Intermat hinge arms, so one part handles both systems in half overlay applications from 16mm side panel thickness. The plate uses the hole line 37mm x 32mm with drilling diameter 5mm and depth 8mm, tying directly into widely used system holes on cabinet sides. With direct height adjustment of +2mm / -2mm and a nickel-plated steel body classified to EN 15570, Level 3, this hinge mounting plate supports consistent door alignment and everyday use. Add this Hettich 9071645 mounting plate to projects that follow these drilling and application details.
Sold In: 1 Each
