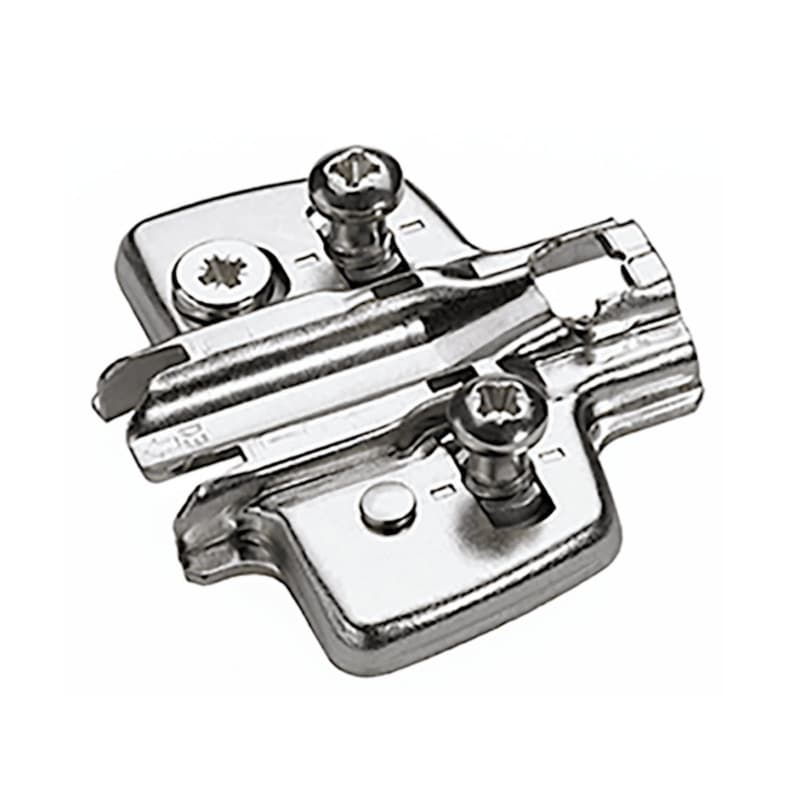

Adjustment cross mounting plate from Hettich America Corporation provides a 0mm long cross mounting plate that works as the base for Sensys and Intermat hinges. This plate creates the connection between cabinet side panels and the hinge arm, so hinge alignment depends on its geometry. The plate installs with Euro screws into 5 x 8mm drilled holes, tying directly into standard system boring on cabinet sides. Dedicated use for a 37mm x 32mm hole line keeps drilling patterns consistent across cabinets. Direct height adjustment built into the plate allows +2mm / -2mm vertical correction at the hinge side, so door reveals can be tuned after mounting. A design for half overlay doors on side panels from 16mm thickness matches common cabinet constructions. The nickel-plated finish covers the steel plate surface, supporting a clean technical look around the hinge area.
This hinge mounting plate is configured for Euro screw installation into drilled holes sized 5 x 8mm, so it fits directly into system-bored cabinet sides. Positioning on a 37mm x 32mm hole line aligns the plate with established cabinet construction standards. With a 0mm cross mounting length, the plate holds the hinge arm close to the cabinet side, guiding the door into a familiar overlay relationship on frameless cabinets. Integrated direct height adjustment offers +2mm / -2mm of vertical travel, allowing the installer to raise or lower the hinge relative to the cabinet side. That vertical movement gives precise control over door alignment, helping match reveals between adjacent fronts. The plate is specified for half overlay doors on side panels starting from 16mm thickness, connecting its geometry to typical European-style cabinet builds.
This hinge mounting plate from Hettich America Corporation is designed for Sensys and Intermat hinges, so it slots into projects already using those hinge lines. Its 0mm cross mounting design supports frameless cabinet layouts where the hinge arm sits close to the cabinet side. The plate is intended for half overlay doors, pairing the hinge system with fronts that cover only part of the side panel edge. Application on side panels from 16mm thickness coordinates with many melamine, engineered wood, or similar cabinet carcasses. The 37mm x 32mm hole line requirement aligns directly with common system boring, making it suited to production shops running standard drill patterns. By using Euro screws in 5 x 8mm holes, the plate connects securely to the cabinet side for long-term door operation.
The direct height adjustment feature on this plate, with a +2mm / -2mm range, gives fine vertical control at each hinge location, which helps correct uneven reveals without altering cabinet drilling. Because the plate locks into a 37mm x 32mm hole line, drilling setups remain consistent across an entire job, supporting uniformity when many cabinets share the same pattern. A 0mm cross mounting length controls the door-to-side relationship, so hinge and door geometry stays predictable when repeating carcass dimensions. Matching Sensys and Intermat hinges simplifies planning, because the hinge arm engages this plate using the manufacturers intended interface. Use on half overlay doors with 16mm and thicker side panels connects the hardware choice directly to modern cabinet construction, which supports clean lines and repeatable door positioning throughout the installation.
This hinge mounting plate is for Sensys and Intermat hinges, so it ties directly into those hinge systems when building or updating cabinet runs using these lines.
The height adjustment on the plate allows +2mm or -2mm movement at the hinge, which lets you refine door reveals vertically without changing drilling positions.
The mounting plate is designed for a 37mm x 32mm hole line and Euro screws in 5 x 8mm drilled holes, aligning it with standard system-bored cabinet sides.
This plate is specified for half overlay doors on side panels from 16mm thickness, connecting the hinge layout to common European-style cabinet construction.
The 0mm cross mounting layout positions the hinge arm close to the cabinet side, creating a predictable door overlay in frameless cabinet applications.
The mounting plate carries a quality classification under EN 15570, Level 3, which aligns the component with a defined performance standard for hinge systems.
Choosing this adjustment cross mounting plate from Hettich America Corporation aligns your cabinet builds with a 0mm long cross mounting plate tailored to Sensys and Intermat hinges. The combination of Euro screw installation, 37mm x 32mm hole line, and 5 x 8mm drilling pattern connects smoothly with system-bored carcasses. With direct height adjustment of +2mm / -2mm and suitability for half overlay doors on 16mm side panels, the plate supports accurate door positioning in modern frameless cabinets. For projects where consistent drilling, reliable hinge geometry, and clean reveals matter, this hinge mounting plate from Wurth Baer Supply fits directly into a controlled, repeatable workflow.
Sold In: 1 Each
