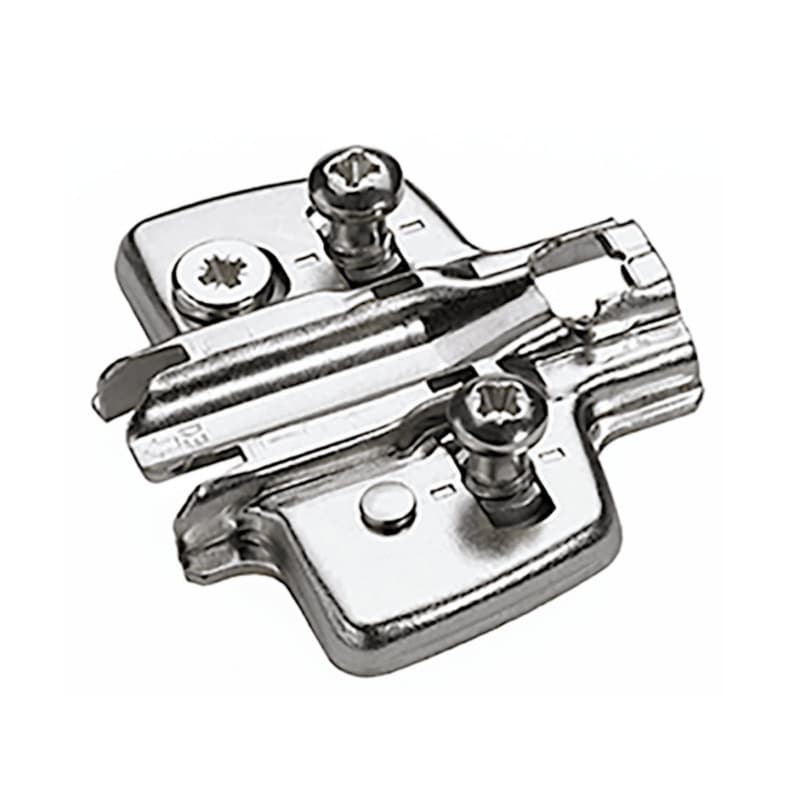

Adjustment steel cross mounting plate gives you a stable mounting base for Hettich Sensys and Intermat hinges, so the hinge connection at the cabinet side stays consistent on repeated jobs. The 0mm long cross mounting plate sets the hinge position without adding distance between the cabinet and door, which helps keep reveals tight when you already planned your overlay in the drilling layout. The steel construction provides a solid interface between the cabinet side panel and hinge arm, which supports long-term hinge function under normal cabinet use. The nickel-plated finish on the plate offers a clean metal surface, which helps it visually match common hinge arms on professional installations. A plate height of 1.5mm defines the door position relative to the side panel, which matters when matching existing reveals across multiple doors on the same run.
This hinge mounting plate is designed for installation with Euro screws, which are sized for drilling 5 x 8mm holes so your drilling pattern follows a known metric standard. The hole line layout of 37mm x 32mm on the plate defines where you drill on the cabinet side panel, which helps you coordinate line boring and CNC programs in a shop environment. Because the plate is described as a 0mm long cross mounting plate, the hinge arm sits directly over the drilling pattern without added setback, which helps when transferring existing drilling programs from similar Hettich plates. Using the direct height adjustment on the plate, you move the hinge connection plus 2mm or minus 2mm, which supports fine-tuning reveals without altering the hinge cup position in the door.
This hinge mounting plate is intended for use with Sensys and Intermat hinges, so it fits cabinet runs where those hinge families are already specified across the project. The 37mm x 32mm hole line works with cabinet side panels that follow a standard drilling grid, which benefits shops that rely on system 32 or similar spacing for repeatable construction. Because it is built for half overlay doors, the plate supports layouts where the door only partially covers the cabinet side, helping you maintain a consistent reveal line between adjacent fronts. The 1.5mm plate height ties the door position to that specific build-up, which is important when matching replacement doors or adding new cabinets alongside existing ones using the same hinge geometry.
The direct height adjustment feature in this plate gives you an adjustment range of plus 2mm to minus 2mm, letting you tweak door height after installation without changing drilling positions. This adjustment range is valuable when cabinets are already fixed to walls but door gaps need fine tuning, because the plate shifts the hinge mounting point relative to the side panel without disturbing other hardware. The 0mm long cross mounting design keeps the hinge arm aligned directly over the mounting plate, which simplifies layout when setting up boring machines or jigs for repeated case construction. With a specified application on side panels from 16mm thickness, the plate geometry supports common European-style cabinet materials, so your hinge mounting remains consistent across standard carcass thicknesses used in many shops.
This hinge mounting plate is for Sensys and Intermat hinge systems, so it ties into those specific Hettich hinge arms on frameless cabinet projects using that hardware family.
This mounting plate offers a plus 2mm to minus 2mm height adjustment range, which lets you fine-tune door alignment along the vertical axis after the hinges are installed.
This hinge mounting plate is specified for half overlay doors from 16mm side panel thickness, aligning its geometry with common European cabinet carcass materials.
The plate uses a hole line of 37mm by 32mm, giving you defined drilling centers that match standard cabinet side layouts in many system-based constructions.
This hinge mounting plate is installed with Euro screws sized for 5 by 8mm holes, so your drill pattern follows that metric dimension in the cabinet side panel.
The EN 15570 Level 3 classification places this plate within a defined quality level for hinge systems, which is relevant when specifying hardware for demanding cabinet use.
This Sensys hinge mounting plate from Hettich America Corporation gives you a 0mm long cross mounting layout with 1.5mm plate height, aligning with half overlay doors on 16mm side panels. With direct height adjustment of plus 2mm to minus 2mm and Euro screw installation on a 37mm x 32mm hole line, it supports precise drilling and reliable door alignment. For cabinet runs built around Sensys or Intermat hinges, this steel, nickel-plated mounting plate provides a defined geometry you can repeat across cases. Use it on projects where consistent overlay, controlled reveals, and standardized drilling patterns are part of the workflow.
Sold In: 1 Each
