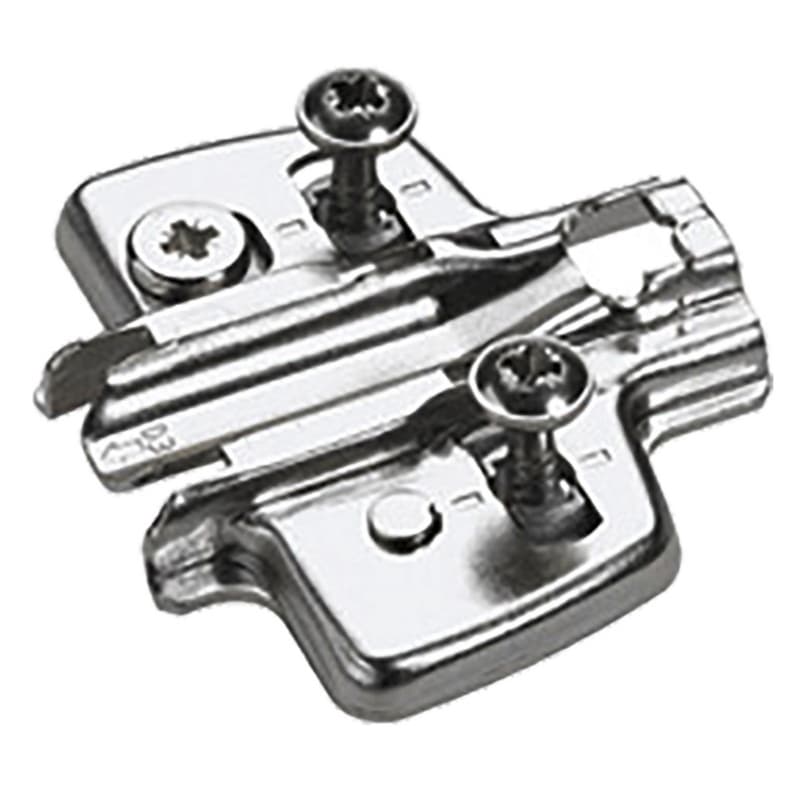

Cross mounting plate 1.5mm describes a Hettich America Corporation hinge mounting plate designed as a 0mm cross mounting plate with direct height adjustment, so hinge positioning can be fine-tuned on the cabinet for accurate door alignment. The plate is part of the Sensys and Intermat hinge platform, which means it works within those systems to connect the hinge arm to the cabinet side in a consistent way. The plate height of 1.5mm establishes the base seating level on the cabinet, so installers can plan overlay and reveal in line with the selected hinge and drilling pattern. Steel construction provides a solid mounting base, while the nickel-plated finish creates a hard surface that stands up to regular hinge movement in typical cabinet environments. Quality classification under EN 15570, Level 3, ties the plate to a tested hinge system level.
The hole line 37 x 32 mm specification defines the center-to-center spacing of the mounting pattern, so boring machines and jigs can be set to those dimensions for fast, repeatable placement. Installation with expanding sockets, used in drilled 5 x 12 mm holes, ties the plate to 5mm dowel-type bores, giving installers a clear drilling depth and diameter when preparing cabinet sides. The direct height adjustment feature provides an adjustment range of plus 2 mm and minus 2 mm, allowing the mounted door to be shifted vertically relative to the plate to fine-tune reveals. The plate height of 1.5mm works with the 0mm cross mounting plate designation to define the working offset between cabinet surface and hinge arm, which supports accurate hinge and door planning.
This hinge mounting plate is designed for use with Sensys and Intermat hinges, so it serves as the cabinet-side interface for those systems in frameless-style drilling layouts using a hole line 37 x 32 mm. The plate works with drilling 5 x 12 mm for expanding sockets, which matches common 5mm system holes in cabinet side panels, allowing integration into line-bored casework. The 0mm cross mounting plate specification defines the horizontal offset geometry between the hinge arm and cabinet side, so door overlay calculations follow the Sensys or Intermat data when this plate is used. The plate height of 1.5mm further refines this geometry at the cabinet surface, which supports consistent alignment across multiple doors in a run. Steel construction gives the plate a rigid base under the hinge, which helps the hinge system carry normal door loads while maintaining the designed geometry.
The direct height adjustment with an adjustment range of plus 2 mm to minus 2 mm lets installers shift the hinge position vertically after mounting, which helps straighten door reveals when cabinet drilling or door sizing varies slightly. Because the plate is nickel plated, the surface resists wear at the contact points with the hinge arm and screws, supporting smooth adjustment and stable clamping over the service life of the hinge. Quality classification under EN 15570, Level 3, links the plate to hinge systems tested to that level, which matters when doors are operated frequently in typical cabinet applications. The installation method using expanding sockets in drilled 5 x 12 mm holes anchors the plate into the cabinet side, so repeated door movement is transferred into the cabinet through a stable dowel-based connection. Within a Sensys or Intermat mounting layout, these details help the hinge system deliver predictable motion and repeatable alignment across projects.
This cross mounting plate is specified for Sensys and Intermat hinges, so it is used as the cabinet-side plate within those hinge systems for standard installations.
The 0mm cross mounting plate design defines the mounting geometry at cabinet level, so door overlay and reveal can follow Sensys or Intermat data based on this reference.
The hinge mounting plate is designed for a hole line 37 x 32 mm and uses expanding sockets in drilled 5 x 12 mm holes, guiding boring setup for cabinet sides.
The mounting plate offers direct height adjustment with an adjustment range of plus 2 mm to minus 2 mm, allowing fine vertical tuning of the mounted door position.
The nickel-plated steel construction provides a solid hinge base with a hard plated surface, supporting hinge movement and adjustment in typical cabinet environments.
The EN 15570 Level 3 classification ties the plate to hinge systems tested under that standard level, aligning it with demanding hinge performance requirements.
This Hettich America Corporation cross mounting plate with 1.5mm height, 0mm cross mounting plate geometry, and direct height adjustment is set up for Sensys and Intermat hinge work using a hole line 37 x 32 mm. Installation with expanding sockets in 5 x 12 mm drilled holes aligns the plate with 5mm system boring, which supports efficient cabinet-side preparation. The nickel-plated steel construction and EN 15570, Level 3, classification connect the plate to a robust hinge system standard, so it can be selected confidently for cabinet projects built around those hinge families.
Sold In: 1 Each
