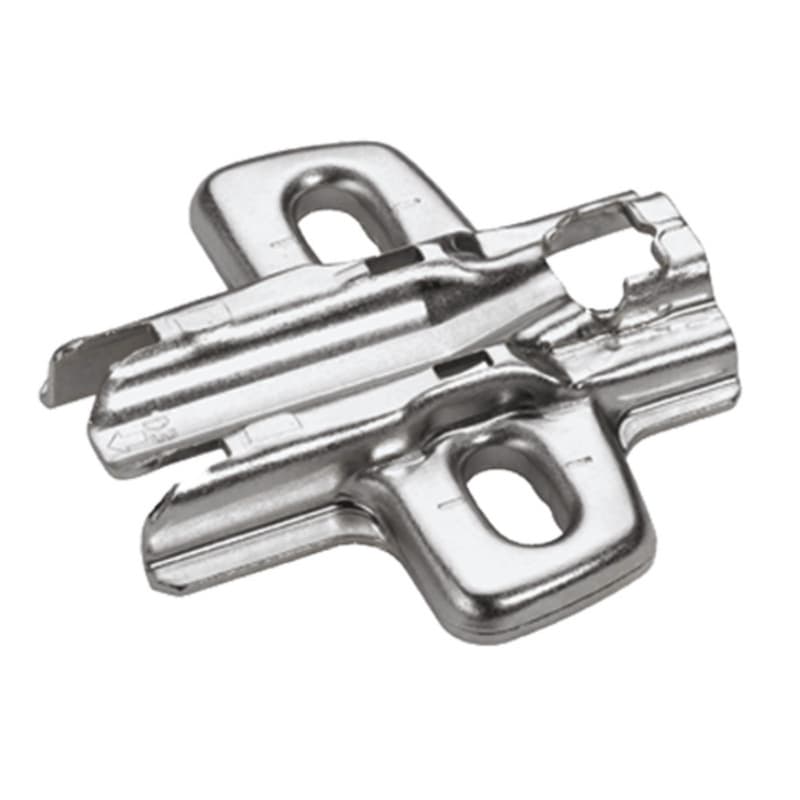

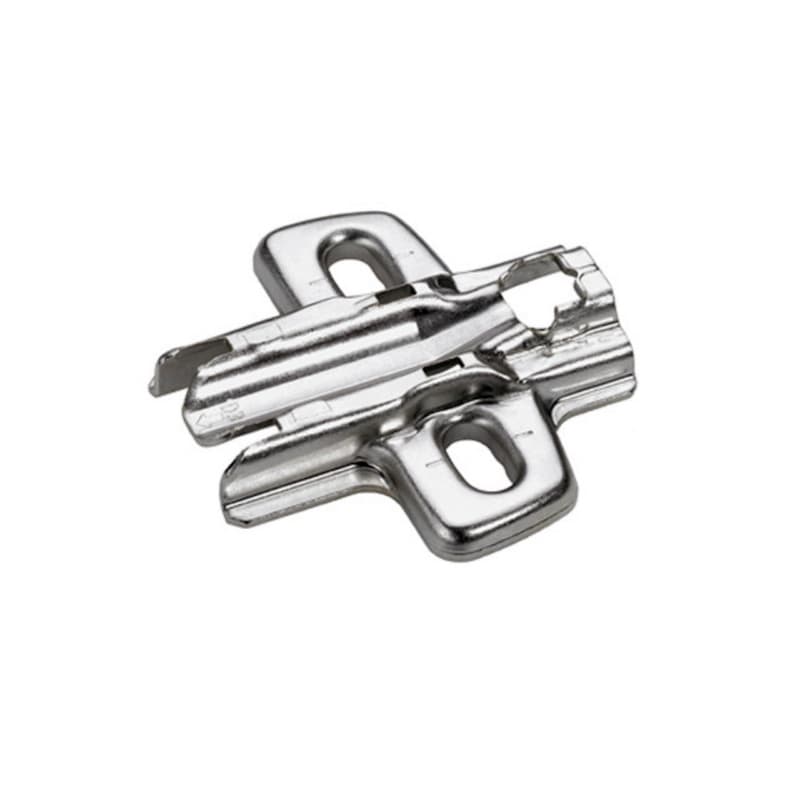

Sensys cross mounting plate 0mm screw on is a 0mm high cross mounting plate that positions the hinge arm at a zero plate height, which helps keep door overlay and reveal aligned to your layout when working with standard cabinet constructions. The cross mounting plate is designed as a hinge mounting plate, so it forms the connection between the cabinet side and the hinge arm in a typical hinge system. This mounting plate is manufactured by Hettich America Corporation, giving you a clearly identified source when matching to existing hardware runs in the shop. The product is identified by manufacturer part number 9071575, which supports repeat ordering for the same hinge line in production or service work. The plate is classified as a hinge mounting plate in the hinges and hinge base plates category, so it fits directly into projects that already use comparable mounting geometry.
The cross mounting plate is a 0mm high plate, so installers can work from a zero reference height when setting hinge arm positions along the cabinet side. The plate is used for hole line 37 x 32 mm, which ties directly into a standard drilling pattern many CNC and line-boring setups already use on cabinet sides. The plate installs by screwing on, using screw-on mount installation so the plate is fixed directly through the mounting holes into the case material. The oblong hole height adjustment and + 3mm / - 3mm adjustment range work together to allow the hinge position to move within the slots, which helps align doors vertically without altering the bore pattern.
This cross mounting plate is used as a hinge mounting plate within Sensys and Intermat hinge systems, so it sits on the cabinet side and carries the hinge arm used on those hinges. The 0mm high cross mounting plate is used where casework is designed around a zero-height plate, helping maintain the intended overlay when paired with the matching hinge arm geometry. Because it is specified for hole line 37 x 32 mm, the plate fits cabinets drilled on that line-boring pattern, which is common in many frameless and system32-style constructions. The plate belongs to the hinge mounting plates product class, so it plays the role of the base interface between cabinet and hinge hardware in many carcass designs.
The oblong hole height adjustment in the plate lets the hinge attachment point slide within the slot, which gives installers the ability to adjust door height after the plate is screwed down, limiting the need to alter casework. The specified adjustment range of + 3mm / - 3mm quantifies how far that movement can shift, giving several millimeters of usable travel for aligning doors to adjacent fronts. Using a screw-on mount installation means the plate is fastened using screws through its mounting points, which ties directly into standard shop and field tools. The nickel-plated finish on the plate creates a consistent metal surface around the hinge area, which helps hardware lines visually match when cases are open. The EN 15570, Level 3 quality classification assigned to this plate ties it to a defined quality level under that standard, which aligns the hardware with recognized hinge performance classification used in the industry.
This 0mm high cross mounting plate is for Sensys and Intermat, so it interfaces with hinge arms from these Hettich hinge families in cabinet installations.
The cross mounting plate is specified for hole line 37 x 32 mm, which matches cabinet sides bored to that line pattern in system-based casework.
The mounting plate has oblong hole height adjustment with an adjustment range of + 3mm / - 3mm, allowing several millimeters of vertical door alignment movement.
The mounting plate is a screw-on mount, so it is installed by screwing on through its mounting holes into the cabinet side material.
The 0mm high cross mounting plate places the hinge arm at a zero plate height, which supports layouts designed around a 0mm reference for door overlay.
This mounting plate has quality classification under EN 15570, Level 3, linking it to a defined hinge performance level under that European standard.
This cross mounting plate from Hettich America Corporation is a 0mm high hinge mounting plate with screw-on installation, so it fits projects built around a zero-height plate and standard screw fixing. The plate is specified for Sensys and Intermat on a hole line 37 x 32 mm, tying it directly into those hinge families and drilling layouts. With oblong hole height adjustment and an adjustment range of + 3mm / - 3mm, the plate supports practical door alignment within a controlled range when setting up or servicing cabinets.
Sold In: 1 Each
