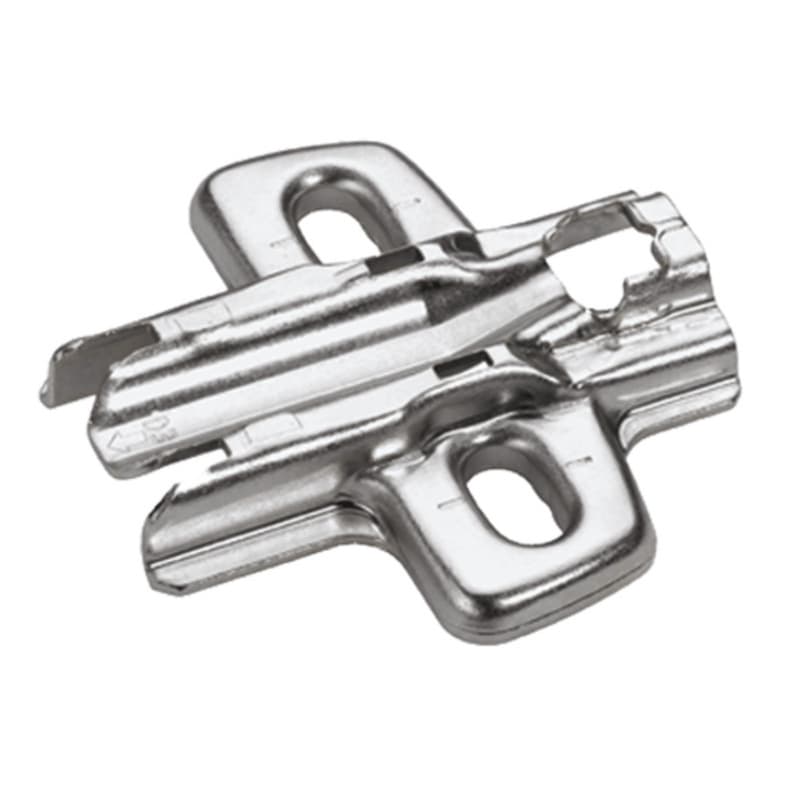

Adjustment cross mounting plate from Hettich America Corporation provides a dedicated hinge mounting solution for Sensys and Intermat hinges, giving installers a defined interface between cabinet side and hinge arm. The 0mm high cross mounting plate keeps the hinge position close to the cabinet side, which helps maintain consistent reveal lines on frameless cabinets. Its nickel-plated finish forms a hard, smooth surface on the plate body, supporting repeatable hinge movement over time in typical cabinet environments. The plate is classified under EN 15570, Level 3, so it is designed to meet a tested performance level in hinge applications. As a hinge mounting plate in the Hinge Mounting Plates product class, it serves as the fixed reference for hinge arm connection, which is critical when aligning multiple doors in a run. The Hettich manufacturer part number 9071576 identifies this specific configuration for reorders and project records.
This screw-on mount hinge base plate fastens directly to the cabinet side, creating a rigid base for the hinge arm while still allowing vertical correction. With a height adjustment range of + 3mm / - 3mm via the oblong mounting holes, installers can shift the door position up or down relative to the fixed 37 x 32 mm hole line. That adjustment capability helps bring multiple doors into a common alignment when working across long cabinet runs or tall pantry fronts. As a 0mm high cross mounting plate, it maintains the hinge geometry defined for Sensys and Intermat systems, so the door overlay depends on the chosen hinge and drilling pattern rather than plate height changes.
The Hettich 9071576 0mm high cross mounting plate is intended for cabinets that use Sensys or Intermat hinges with a system hole line of 37 x 32 mm. Because the height is specified as 0mm, the plate fits applications where the cabinet design calls for the hinge arm to sit close to the side panel, such as many full-overlay frameless cabinets. The defined hole line dimension lets production shops drill cabinet sides on standard line-boring equipment and then use this plate as the direct interface. In small shops and on site, the same dimensions act as a reference when laying out drill locations, helping match factory layouts on modifications or repairs that reference the same system line.
The oblong hole height adjustment built into the plate provides a controlled way to shift doors within a + 3mm / - 3mm range after the plate is screwed on, which helps correct small drilling offsets or material variations without redrilling. This up/down adjustability also supports fine tuning reveals when aligning adjacent doors, because the hinge arm location can be moved along the vertical axis while the drilled 37 x 32 mm pattern remains the reference. The screw-on mount method works together with these oblong slots, allowing the installer to position the plate, test door alignment, and then fully tighten once the reveal is acceptable. Quality classification under EN 15570, Level 3, indicates the plate is designed to work within a hinge system that has been tested to a defined performance level, which matters in high-use cabinet installations where hinge components are subjected to repeated opening and closing cycles.
Hettich 9071576 is an adjustment cross mounting plate in the hinge mounting plates class, so it serves as the fixed base that connects a hinge arm to the cabinet side.
This cross mounting plate is for Sensys and Intermat hinges, so it is intended to pair with those hinge families in cabinet door applications.
This hinge mounting plate is 0mm high, which keeps the hinge arm close to the cabinet side and maintains the overlay determined by the hinge and drilling pattern.
The oblong hole height adjustment provides a + 3mm / - 3mm range, so the installer can shift the hinge position up or down to align doors accurately.
This mounting plate is designed for a hole line of 37 x 32 mm, which supports cabinet construction using that standard system boring pattern.
The EN 15570, Level 3 classification indicates the hinge system is designed to meet a tested performance level, which is relevant for demanding cabinet use.
The Hettich America Corporation adjustment cross mounting plate with screw-on mount, 0mm height, and oblong hole height adjustment is suited to Sensys and Intermat hinge layouts using a 37 x 32 mm hole line. Its + 3mm / - 3mm adjustment range supports accurate reveals and corrections in the field or shop, while the EN 15570, Level 3 quality classification positions it for use in hinge applications that must meet a defined performance level. For projects that standardize on these hinge families and drilling dimensions, this 9071576 hinge mounting plate offers a consistent reference point across cabinet runs.
Sold In: 1 Each
