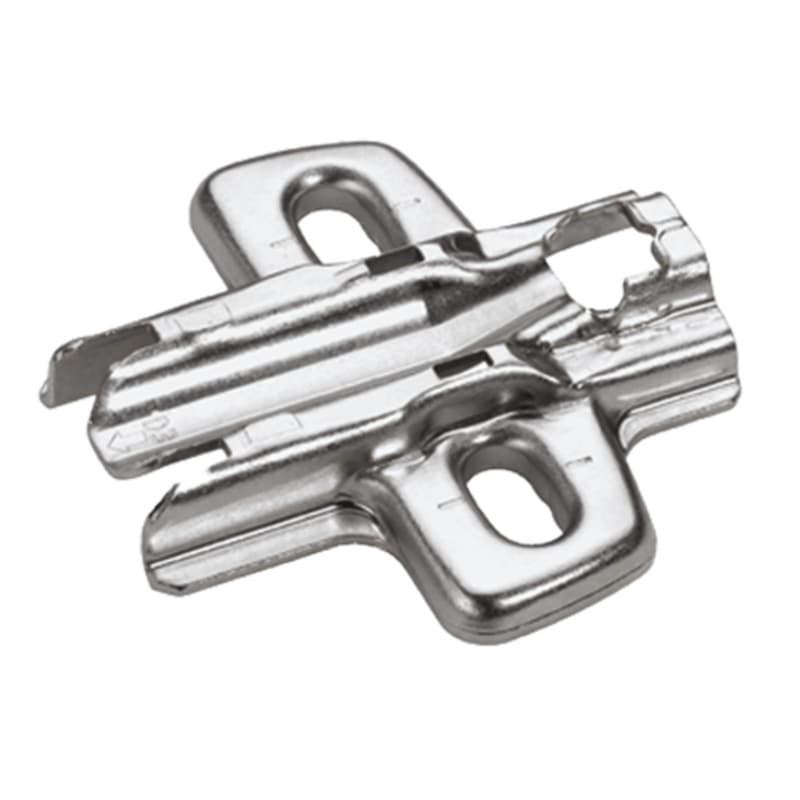

Hettich Sensys cross mounting plate with height adjustment is a hinge mounting plate designed for Sensys and Intermat hinges. The plate is 0mm high, so it keeps the hinge throw consistent with systems designed around a zero-height base plate, which supports predictable overlay results across a run. The cross mounting plate format lets the hinge arm lock onto a stable base, giving the door a defined pivot point that stays consistent over repeated openings. Nickel-plated construction provides a hard, smooth surface at the hinge interface, which resists wear at the contact points between hinge arm and plate during long-term cabinet use. The screw-on mount installation style secures the plate directly to the cabinet, creating a rigid connection between the carcass and the hinge arm. The manufacturer part number 9071577 identifies this specific Sensys cross plate variant for repeat ordering or matching to existing hardware layouts.
This screw-on hinge mounting plate uses elongated oblong holes for height adjustment, with an adjustment range of plus 3mm and minus 3mm. That slot-based design lets the installer shift the plate up or down relative to the drilling pattern, providing vertical tuning of the door position after the hinge arm is clipped on. The screw-on mount gives a direct connection into the cabinet side, which keeps the plate stable while those adjustments are made. Because the plate is 0mm high, all vertical adjustment happens within that plus or minus 3mm window, helping the door move as a rigid unit without changing the hinge geometry. The EN 15570 Level 3 classification indicates the plate is part of a hinge solution tested to a defined performance standard, which supports its role in cabinets expected to see frequent opening cycles.
This hinge mounting plate is specified for Sensys and Intermat hinges, so it serves as the cabinet-side interface for those hinge families. The hole line 37 x 32 mm drilling pattern means the plate aligns to cabinet sides bored with that spacing, letting rows of plates sit on a common reference across tall units. The 0mm high design fits layouts that were engineered around a zero-height base, which keeps door overlays and gaps aligned with established construction drawings. Nickel-plated finish supports use in typical woodworking environments where metal components are exposed inside cabinet carcasses, keeping the plate surface stable where it contacts the hinge arm. The cross plate design locks the hinge arm across the width of the plate, providing a centered mounting platform on the cabinet side.
The oblong hole height adjustment on this plate provides an adjustment range of plus 3mm and minus 3mm, giving meaningful vertical travel without changing drilling positions. That extra movement is useful when cabinet boxes, doors, or face frames show minor dimensional variation, because the plate can shift to realign reveals rather than altering the carcass. Once the plate position is set within the slots and the screws are tightened, the screw-on mount keeps that adjustment fixed under the load of the door. Working within a 37 x 32 mm hole line also means each plate along a tall cabinet shares the same reference, so those plus or minus 3mm shifts can be repeated from plate to plate for straight visual lines. Combining 0mm plate height with this vertical slot range lets the hinge arm operate on its designed pivot geometry while still giving the installer working room to dial in the finished door position.
This cross mounting plate is for Sensys and Intermat hinges, so it serves as the cabinet-side base for those hinge families in compatible layouts.
The 0mm high plate keeps the hinge arm at its designed system height, which helps maintain consistent overlays and reveals across coordinated cabinet doors.
The oblong holes provide plus 3mm and minus 3mm vertical adjustment, allowing fine-tuning of door height without changing the drilling pattern on the cabinet.
This hinge mounting plate is designed for a hole line 37 x 32 mm, so it aligns with cabinet sides bored on that spacing for straight hinge rows.
The EN 15570 Level 3 quality classification indicates the plate is part of a hinge solution tested to a defined performance level for demanding cabinet use.
Screw-on mount means the plate fastens directly to the cabinet with screws, giving a rigid connection that supports accurate adjustment and long-term hinge stability.
This Hettich Sensys cross mounting plate with height adjustment, manufacturer part 9071577, ties directly to Sensys and Intermat hinge systems for projects built on a 37 x 32 mm hole line. The 0mm high design and plus 3mm or minus 3mm vertical adjustment range support dialing in consistent overlays without changing drilling layouts. For cabinet runs that rely on tested hardware, the EN 15570 Level 3 classification and nickel-plated finish provide a defined performance framework. Add this screw-on hinge mounting plate to maintain a consistent hardware standard wherever Sensys or Intermat hinges are specified.
Sold In: 1 Each
