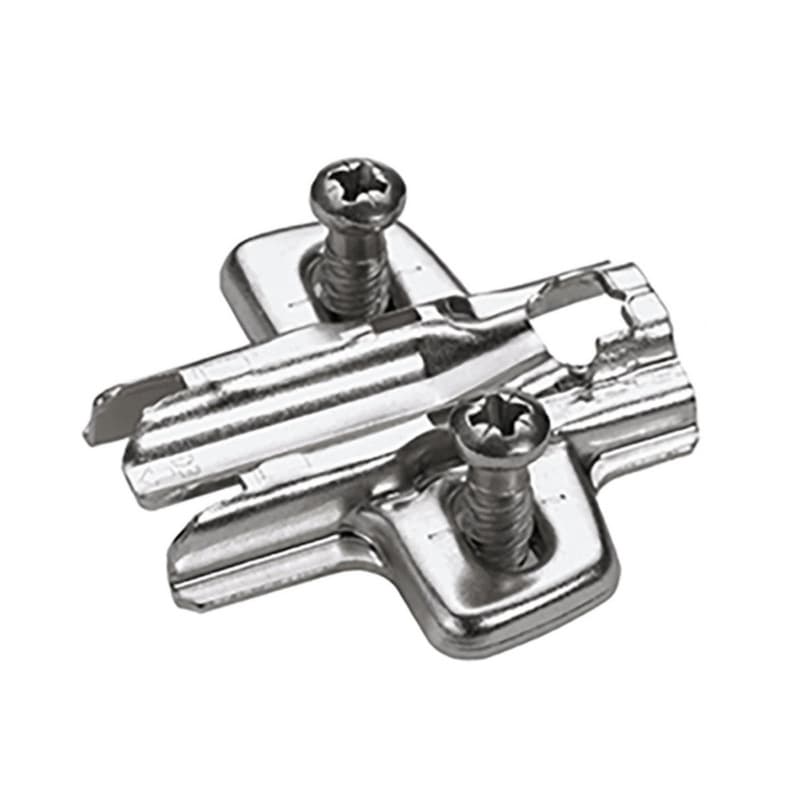

cross mounting plate with euro screw gives installers a dedicated hinge mounting plate that matches common cabinet drilling, so Sensys and Intermat hinges can be set accurately on carcasses built around a 37mm x 32mm hole line. The 0mm long cross mounting plate keeps the hinge position consistent relative to the cabinet front, which helps maintain uniform reveals across a run of doors. The 3mm mounting plate height defines the hinge base level on the side panel, letting you plan clearances with a known reference. Nickel-plated construction provides a hard working surface between hinge arm and plate, which supports smooth operation over repeated door cycles. The plate is designed as a hinge mounting plate in the Hinge Mounting Plates class, so it fits naturally into cabinet hinge layouts that already use Sensys or Intermat hardware. Manufacturer part 9071627 ties it directly to Hettich documentation.
This hinge mounting plate is designed for the 37mm x 32mm hole line, so it drops directly onto standard system boring patterns commonly used in cabinet shops. Installation with Euro screws for 5 x 8mm holes lets the plate lock into engineered drilling without extra layout steps. The adjustment range of plus 2mm to minus 2mm gives a window for fine-tuning door position on the cabinet, which is useful when aligning reveals after doors and fronts are hung. As a 3mm mounting plate for half overlay doors from 16mm side panel thickness, it positions the hinge arm so the half overlay geometry matches the door and case relationship expected for Sensys and Intermat applications.
This 0mm long cross mounting plate with Euro screw is specified for Sensys and Intermat hinges, so it fits into projects already using those hinge families. The plate suits cabinet constructions that follow a 37mm x 32mm hole line, common in European-style casework, which helps during retrofit or expansion work around existing drilling programs. With a 3mm mounting plate height and use on half overlay doors from 16mm side panel thickness, it aligns doors where the edge of the door only partially covers the side panel, a typical condition on many frameless cabinets. The Euro screw installation for 5 x 8mm holes supports work in panel materials where that drilling pattern is standard, so production and installation can follow familiar boring routines.
Because the product sits in the Hinge Mounting Plates class, it serves as the fixed reference for the hinge arm in the cabinet interior, defining the pivot location relative to the carcass. The nickel-plated plate works with Sensys and Intermat arms so that hinge kinematics stay within the ranges those systems are designed for, which is important when doors must clear neighboring fronts or end panels. For projects built around half overlay fronts on 16mm or thicker sides, using this 3mm plate supports consistent overlay results from cabinet to cabinet.
The mounting plate offers an adjustment range of plus 2mm to minus 2mm, which provides room to shift the door position relative to the cabinet without reboring or remounting the hinge cup. This fine-tuning capability is especially useful when dialing in even gaps between multiple half overlay doors sharing the same case side. Because the plate works with Sensys and Intermat hinges, the adjustment combines with the hinge arm settings to give multiple axes of control, helping installers bring doors into plane and align fronts across long cabinet runs.
Quality classification under EN 15570, Level 3 connects this component to a recognized hinge performance standard, which is relevant in woodworking environments where hinges see repeated opening and closing over time. Level 3 classification signals that the hinge system using this plate is designed to operate within defined performance criteria, giving cabinetmakers a reference point when specifying hardware for demanding applications. Nickel-plated construction supports this role by providing a consistent bearing surface at the connection between hinge arm and mounting plate. In day-to-day use, this combination of adjustment range, standardized hole line mounting, and EN 15570 Level 3 classification supports repeatable hinge behavior across the cabinet installation.
The cross mounting plate is specified for Sensys and Intermat hinges, which means the plate geometry matches those hinge arms for proper seating and motion on cabinet doors.
The 37mm x 32mm hole line lets the plate mount on standardized system drilling, so it aligns with line-bored cabinets without custom layout work on the side panels.
The 3mm mounting plate height lifts the hinge arm a fixed amount from the side panel, which helps set predictable overlay and reveal on half overlay doors from 16mm side thickness.
The plus 2mm to minus 2mm adjustment range allows small shifts of door position on the plate, supporting fine alignment of gaps between adjacent cabinet doors.
EN 15570 Level 3 classification links the plate to a hinge system evaluated to that level, which matters when specifying components for frequent door use in cabinetry.
The hinge mounting plate is intended for half overlay doors from 16mm side panel thickness, aligning the hinge geometry to that door and carcass relationship.
This cross mounting plate with Euro screw from Hettich America Corporation is built as a 0mm long, 3mm high hinge mounting plate for Sensys and Intermat systems. The 37mm x 32mm hole line fit, Euro screw installation for 5 x 8mm drilling, and plus 2mm to minus 2mm adjustment range give cabinetmakers a defined geometry when working with half overlay doors on 16mm or thicker sides. For projects that need a nickel-plated plate tied to EN 15570 Level 3 hinge performance, this 9071627 mounting plate offers a targeted option for organizing Sensys and Intermat hinge layouts.
Sold In: 1 Each
