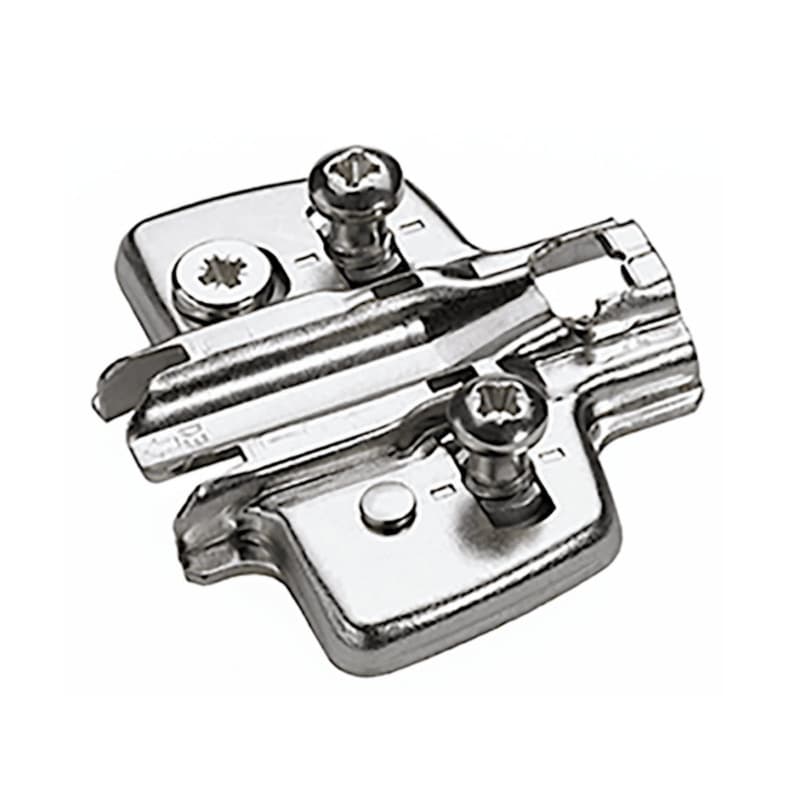

Adjustment steel cross mounting plate describes a 0mm long cross mounting plate that serves as the connection between cabinet side panels and Sensys or Intermat hinges, so hinge forces transfer cleanly into the cabinet side during everyday door use. The steel construction supports hinge loading at the side panel, helping maintain stable alignment over time when doors are opened and closed repeatedly. The nickel-plated finish covers the steel body, providing a clean, neutral appearance that suits typical cabinet interiors where hardware remains visible during installation or adjustment. A 3mm plate height sets the mounting reference closer to the cabinet side, which influences how the hinge positions a half overlay door on a cabinet run. Direct height adjustment built into this mounting plate allows fine vertical movement at the hinge connection, so door gaps can be tuned without moving the cabinet or drilling new holes.
The 0mm long cross mounting plate with Euro screw installation uses drilling diameter 5 x 8mm, which aligns with standard Euro screw tooling so boring operations can follow existing line-bore setups. The hole line 37mm x 32mm defines the spacing pattern, guiding where to place drilling jigs or CNC programs relative to cabinet edges. A 3mm mounting plate height works together with Sensys or Intermat hinge geometry to position half overlay doors correctly on side panels from 16mm thickness. The direct height adjustment with plus 2mm / minus 2mm travel at the plate allows vertical fine-tuning of mounted doors, so reveals above and below fronts can be corrected by turning the adjustment mechanism at the plate instead of altering hinge cup locations.
This hinge mounting plate is specified for half overlay doors, so it fits layouts where the door covers part of the cabinet side panel rather than the full thickness. The 3mm plate height influences how the hinge arms from Sensys or Intermat series hold the door relative to the cabinet face, which is especially important when doors run in a line and must share the same reveal. The stated use from 16mm side panel thickness means the plate geometry is built around common European-style cabinet sides, so the hinge-to-panel relationship suits typical carcass materials and dimensions. The 0mm long cross plate format sets a consistent mounting line along the cabinet side, giving installers a clear reference when aligning multiple doors across tall units, base cabinets, or upper rows.
The adjustment range of plus 2mm / minus 2mm provides vertical movement at the hinge mounting interface, letting installers correct minor drilling or carcass tolerances by shifting the door position instead of redrilling cabinet sides. Direct height adjustment at the plate keeps this movement localized where the hinge meets the side panel, so fine-tuning can be carried out with the door already mounted. Installation with Euro screws into drilling diameter 5 x 8mm combines threaded metal-to-wood engagement with a familiar drill size, supporting firm attachment while working efficiently with standard shop tooling. The hole line 37mm x 32mm pattern works within common system 32 style layouts, so boring lines on cabinet sides can align precisely with hinge cup positions across the project. Quality classification under EN 15570, Level 3 links this hinge system to a defined performance class, which matters when specifying hardware for projects that call out this standard on drawings or schedules.
This mounting plate is for Sensys and Intermat hinges, so it fits projects that standardize on these Hettich hinge families across multiple cabinet runs.
The plus 2mm / minus 2mm direct height adjustment lets you move the door vertically at the plate, so gaps can be tuned without changing hinge cup drilling.
This plate installs with Euro screws in 5 x 8mm drilled holes on a 37mm x 32mm hole line, aligning with standard system drilling setups.
This hinge mounting plate is designed for half overlay doors, so it suits layouts where the door partially overlaps the side panel.
The plate is specified for half overlay doors from 16mm side panel thickness, matching common European-style cabinet construction.
The EN 15570 Level 3 classification states the hinge system meets this standard, important when hardware must match specified performance levels.
The adjustment steel cross mounting plate with Euro screw, 3mm height, and 0mm long cross layout offers a defined mounting geometry for Sensys and Intermat hinges on half overlay doors. The hole line 37mm x 32mm with 5 x 8mm Euro screw drilling ties directly into system 32 style cabinet construction, supporting efficient production or on-site work. With plus 2mm / minus 2mm direct height adjustment and suitability from 16mm side panel thickness, this Hettich America Corporation part 9071647 aligns with common cabinet dimensions and hinge setups. Use it when a nickel-plated steel mounting plate is needed to connect these hinges to cabinet sides while allowing precise vertical door alignment.
Sold In: 1 Each
