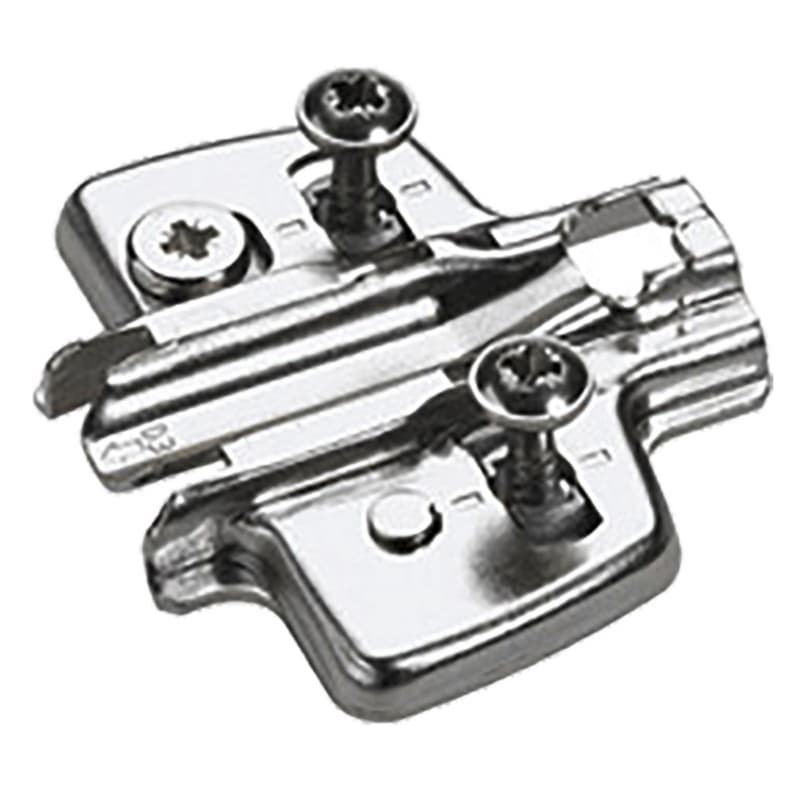

Sensys cam cross mounting plate defines the connection between cabinet and door by acting as the face frame mounting plate for Sensys and Intermat hinges. The 0mm cross mounting plate keeps the hinge arm position aligned to the cabinet layout, which supports consistent reveals across a run of doors. Steel construction provides a solid base under the hinge arm, which helps the door carry weight through the plate into the frame instead of into softer material. The nickel-plated finish covers the steel with a stable surface, which suits concealed hinge locations in typical cabinet interiors. The 3mm description identifies this face frame mounting plate category, which helps align selection with other 3mm system components during layout. The manufacturer part 9071657 ties this plate to Hettich America Corporation documentation, which supports repeat ordering when matching existing installations.
The face frame cross mounting plate configures the hinge interface for frame-style cabinets, which lets Sensys and Intermat hinges sit correctly on a framed front. The hole line 37 x 32 mm layout defines where to bore into the frame, which keeps multiple plates lined up across tall cabinets. Installation with expanding sockets in 5 mm by 12 mm holes locates the dowels precisely, which helps the plate resist shifting under cam adjustment or door load. Direct height adjustment through the cam lets installers dial in reveals without altering the frame, which saves time when fitting multiple doors in a bank. The plus 2 mm minus 2 mm adjustment range offers enough movement to correct small drilling or construction variations, which reduces rework once hinges and doors are already hung.
This hinge mounting plate is specified for Sensys and Intermat hinges, which positions it within Hettich concealed hinge systems on face frame cabinets. The 0mm cross mounting plate dimension defines how close the hinge arm sits to the frame, which affects overlay and door position in standard cabinet runs. The hole line 37 x 32 mm pattern matches applications that follow that drilling system, which is common in casework built around line-bored layouts. Installation with expanding sockets in 5 x 12 mm holes makes this plate suitable where 5 mm dowel boring is part of the workflow, such as CNC or multi-spindle drilling operations. Nickel-plated steel construction suits interior cabinet environments where the plate remains concealed but must provide consistent performance behind Sensys or Intermat hinge arms.
The direct height adjustment built into the cam allows small shifts of the plate position after it is seated in the 5 mm by 12 mm dowel holes, which helps align doors without changing bore locations. With an adjustment range of plus 2 mm and minus 2 mm, the mounting plate gives room to correct minor layout or construction deviation, which is valuable in banks of doors that must share a straight reveal line. The face frame cross mounting layout keeps the hinge anchored to the frame rather than only to panel material, which supports stable door movement in everyday cabinet use. The quality classification under EN 15570 Level 3 links the plate to a defined hinge standard, which aligns with projects that specify components based on that performance level. Using the manufacturer part number 9071657 from Hettich America Corporation helps match this exact plate when repeating a job or extending an existing installation that already uses Sensys or Intermat hinges.
This cross mounting plate is for Sensys and Intermat hinges, which means it is intended to work within those Hettich concealed hinge systems on cabinet projects.
The 0mm cross mounting plate keeps the hinge arm close to the face frame plane, which influences overlay and helps doors sit properly on framed cabinet fronts.
The hole line 37 x 32 mm describes the spacing of the mounting bores, which matches cabinet layouts that use that line-boring pattern for consistent plate positioning.
This hinge mounting plate installs using expanding sockets in 5 x 12 mm drilled holes, which lets the dowels lock into the frame material for a stable base.
The cam mechanism offers plus 2 mm and minus 2 mm of vertical adjustment, which helps fine-tune door reveals without altering the original drilling pattern.
The EN 15570 Level 3 classification places this plate within a defined hinge performance category, which aligns it with projects that reference that European standard.
This Hettich America Corporation Sensys cam cross mounting plate brings a 0mm cross mounting plate layout, cam-based direct height adjustment, and an EN 15570 Level 3 classification together in one hinge mounting plate. The design for Sensys and Intermat hinges, combined with a hole line 37 x 32 mm drilling pattern and 5 x 12 mm dowel installation, ties directly into common cabinet drilling workflows. When a project calls for a nickel-plated steel face frame cross mounting plate with plus 2 mm minus 2 mm vertical adjustment and a defined standard classification, this manufacturer part 9071657 aligns with that specification.
Sold In: 1 Each
