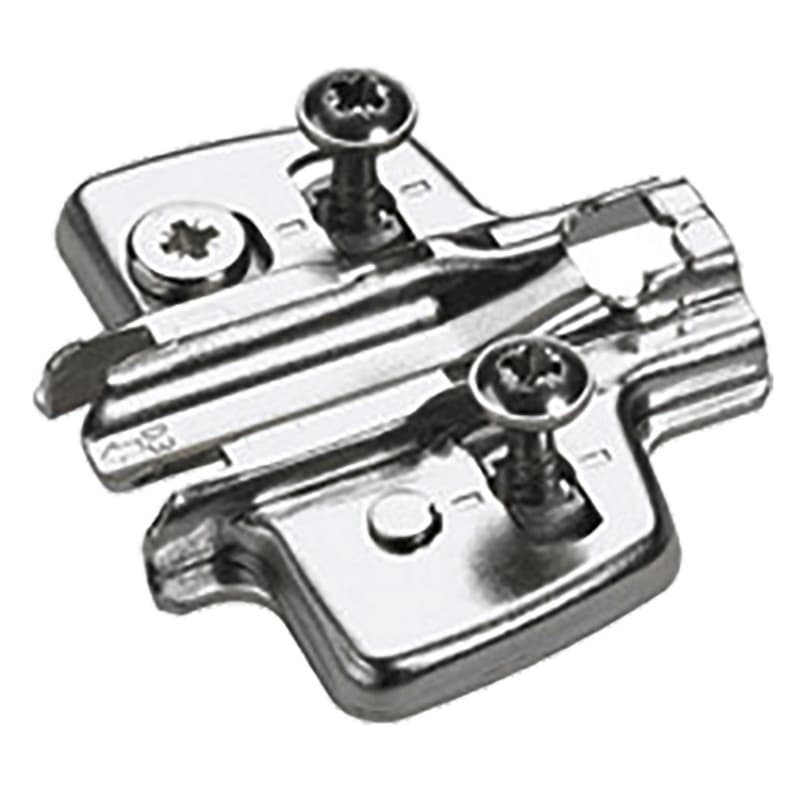

Sensys cam cross mounting plate defines a 0mm mounting height so the hinge arm references directly off the face frame or panel, which helps keep door positioning predictable across multiple cabinets. This mounting plate is designed as a face frame cross mounting plate, so it supports typical face frame construction while tying into the hinge cup geometry. The plate is specified for Sensys and Intermat hinges, aligning the hinge system components so door motion follows the intended geometry. Steel construction with a nickel plated finish gives a solid steel base with a corrosion resistant surface, which supports long-term alignment in typical cabinet environments. The plate belongs to the hinge mounting plates class, so it serves as the fixed reference under the hinge arm. Quality classification under EN 15570, Level 3 identifies the performance level of the hinge system, which matters where long service life and repeatable operation are required.
This face frame cross mounting plate with 5mm dowels is set up for mounting in drilled holes, so the plate locates positively in the frame or panel before tightening. The 37 x 32 mm hole line specification ties the plate to common line-boring spacing, which supports quick layout on cabinet parts drilled to that standard. Installation with expanding sockets in 5 x 12 mm holes lets the dowels expand in the bore, which stabilizes the plate as the hinge arm is loaded by the door. Direct height adjustment at the plate offers a vertical adjustment range of plus 2 mm to minus 2 mm, so door reveals can be tuned up or down relative to the case without reshaping or relocating the frame. Working within this adjustment range keeps the hinge geometry within its designed tolerance, which helps doors close smoothly along the intended path.
This 0mm cross mounting plate is built for Sensys and Intermat hinge series, so it is suited to cabinet projects where those hinge lines are specified. The 37 x 32 mm hole line configuration aligns with system-bored cabinet parts that follow that spacing, making it appropriate for production environments using line boring machinery or jigs. Face frame applications benefit from the cross mounting plate design, because the plate bridges the frame while presenting a stable surface for the hinge arm. Installation with 5mm dowels in 5 x 12 mm drilled holes means the plate is suited to materials and construction methods where 5mm system holes are standard. Steel nickel plated construction supports use in kitchen, bath, and general casework where a metal plate with a finished nickel surface is preferred for appearance and durability around the hinge area.
The built-in direct height adjustment on this mounting plate offers an adjustment range of plus 2 mm to minus 2 mm, which gives a controlled band for correcting door position after the casework is assembled. Because the height change happens at the plate rather than at the hinge cup, the reference between the hinge arm and door edge stays consistent while the door is shifted relative to the frame. That approach is useful when aligning multiple doors in a run, because each plate can be adjusted vertically within the 4 mm total range until reveals line up from cabinet to cabinet. Using a 0mm mounting plate height keeps the hinge arm close to the mounting surface, so the resulting overlay or inset behavior follows the Sensys or Intermat hinge specification without additional offset from the plate. This combination of defined plate height, specific hole line spacing, and controlled vertical adjustment helps reduce rework, because fine corrections stay within the mechanical range provided by the cam rather than requiring structural changes.
This Hettich hinge mounting plate is specified for Sensys and Intermat, so it fits projects built around those hinge series and keeps the system within one hinge family.
The mounting plate has a 0mm height, which positions the hinge arm close to the mounting surface and lets the hinge geometry define door overlay and reveal behavior.
The plate provides direct height adjustment with a range of plus 2 mm to minus 2 mm, allowing vertical tuning of the door position without altering the drilling pattern.
The mounting plate is designed for a 37 x 32 mm hole line, which matches cabinet parts drilled to that system spacing for consistent, repeatable mounting locations.
Installation uses 5mm dowels with expanding sockets into 5 x 12 mm holes, so the plate locks into the bores and resists movement as the hinge carries the door load.
The EN 15570, Level 3 quality classification identifies the performance level of the hinge system, supporting use where higher durability and functional life are expected.
This Sensys cam cross mounting plate from Hettich America Corporation matches Sensys and Intermat hinge systems, tying the hinge arm to a 0mm plate height and a 37 x 32 mm hole line. Direct height adjustment of plus 2 mm to minus 2 mm supports fine reveal tuning across doors. Steel nickel plated construction and 5mm dowelled installation with expanding sockets provide a solid, accurately located base under each hinge. For cabinet or casework runs built around these hinge lines, this mounting plate from Wurth Baer Supply offers a defined geometry that supports efficient layout and consistent door motion.
Sold In: 1 Each
