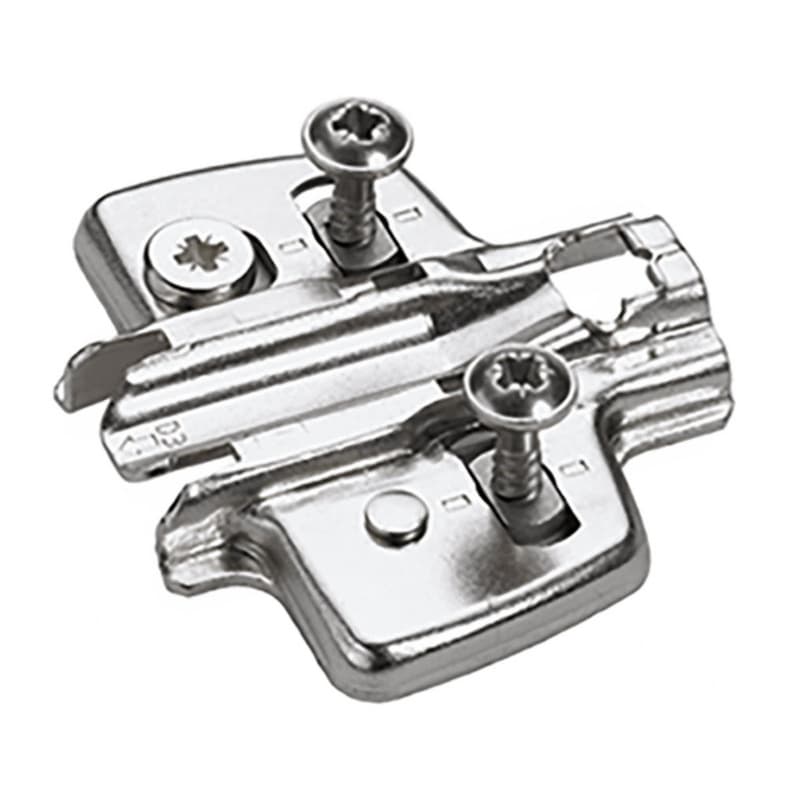

Adjustment steel cross mounting plate gives you a dedicated hinge base plate that ties Sensys and Intermat hinges solidly back to the cabinet, so hinge forces transfer cleanly into the case for consistent door movement. The 0mm cross mounting plate sets the hinge arm close to the mounting surface, which helps keep overlay planning straightforward on standard cabinet layouts. Its nickel-plated finish provides a hard, smooth surface at the hinge connection, which supports repeatable motion when doors are opened and closed daily. The plate is made as part of the Hettich America Corporation hinge program, so it sits within an established hinge hardware system. The steel construction provides a rigid base under the hinge arm, which matters when doors carry normal cabinet loads and need the mounting geometry to stay stable over time.
The cross mounting plate is designed for installation with chipboard screws driven into 2.5mm diameter pilot holes, so it works with established screwdriving steps on cabinet lines that use this fastener style. The 37mm x 32mm hole line gives drill operators a clear center-to-center pattern to follow, which fits into standard line-boring and jig layouts for consistent plate positioning. Direct height adjustment built into the plate provides plus 2mm or minus 2mm of vertical range, so small door alignment differences can be corrected at the plate without changing drilling locations. The 0mm build height means the hinge arm geometry starts directly from the cabinet surface, which simplifies overlay calculations where the design is based on the hinge cup position and a flush base plate.
This hinge mounting plate is specified for Sensys and Intermat hinges, so it serves as the cabinet-side anchor wherever those hinge families are used on doors. The plate sits on a 37mm x 32mm hole line, which matches standard line-bored cabinet sides and lets installers position multiple plates in a straight vertical run for tall door applications. Its 0mm build keeps the hinge arm close to the side panel, which supports common overlay setups on frameless cabinets where the case side is the reference plane. The nickel-plated steel body provides the interface surface where the hinge arm clamps or locks down, so the contact area remains smooth as doors are operated in typical residential or commercial cabinet environments. With chipboard screw installation into 2.5mm drilled holes, the plate is suited to cabinet cases built from particleboard or similar board material where screw pull-out resistance and consistent bite are important to hinge performance.
The plate offers a plus 2mm to minus 2mm adjustment range in height, giving a 4mm vertical window for fine-tuning door position after the hinges are mounted. That direct height adjustment lets installers shift doors slightly up or down, which helps align door tops and bottoms across a bank of cabinets when drilling tolerances or panel variations show up. By building the height adjustment into the mounting plate, corrections can be made with a screwdriver at the plate rather than altering hinge cup locations in the door. The 0mm plate height keeps the hinge geometry straightforward, so installers can work from standard hinge charts for Sensys and Intermat without adding plate offset into their calculations. Because the hole line is fixed at 37mm x 32mm, repeat projects can reuse the same drilling programs, and the adjustment range then absorbs small dimensional differences from board thickness or machining tolerances.
The mounting plate is specified for Sensys and Intermat hinges, so it connects those hinge arms to the cabinet side while keeping their geometry within the intended hardware system.
The 0mm height places the hinge arm directly at panel level, which keeps overlay calculations simple when layouts are based on standard Sensys or Intermat hinge charts.
The plus 2mm or minus 2mm height adjustment lets you shift the door vertically at the plate, which helps line up door reveals after drilling and hanging.
The plate is designed for a 37mm x 32mm hole line, so drilling follows that center-to-center pattern to position the base correctly on the cabinet side.
The mounting plate installs with chipboard screws into 2.5mm pilot holes, creating a mechanical connection suited to particleboard or similar cabinet materials.
The EN 15570 Level 3 classification places this plate within a defined hinge performance category, which aligns it with tested use conditions in cabinet applications.
This Hettich America Corporation hinge mounting plate brings a 0mm nickel-plated base, Sensys and Intermat compatibility, and direct plus 2mm or minus 2mm height adjustment into one part, so cabinet doors can be mounted and aligned within a defined drilling pattern. For runs of frameless cabinets in particleboard or similar board materials, the 37mm x 32mm hole line and chipboard screw installation support repeatable mounting, while the cross mounting plate design provides the hinge-side reference you need when planning door overlays and reveals.
Sold In: 1 Each
