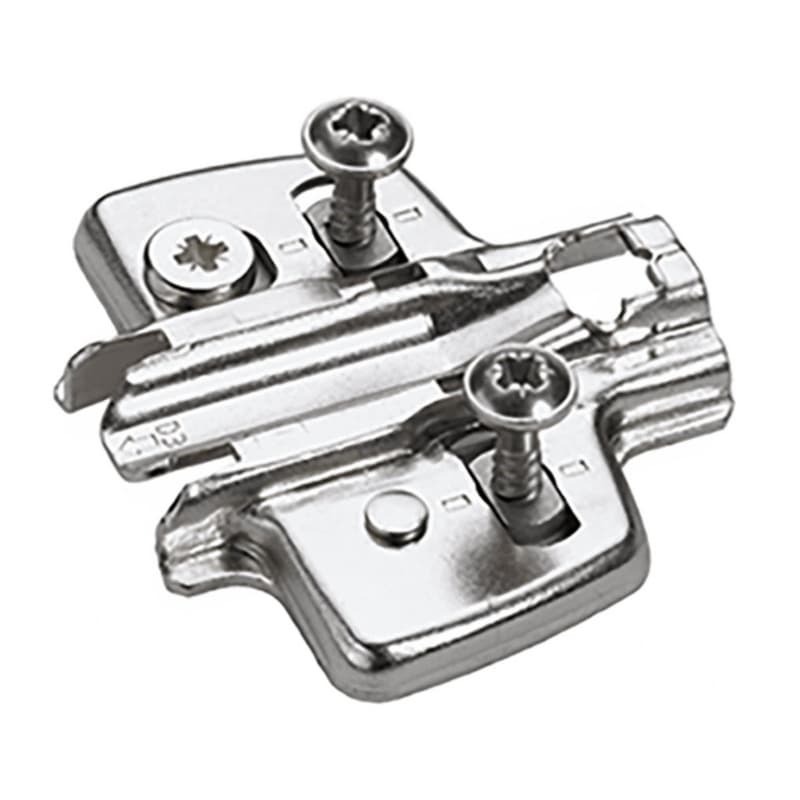

Adjustment Steel Cross Mounting Plate describes a steel hinge mounting plate from Hettich America Corporation that supports cabinet door hinges in everyday use. The nickel-plated finish protects the plate surface, which matters when hardware is exposed to repeated door movement over time.
The manufacturer part 9071671 identifies this specific cross mounting plate, helping match it precisely to drawings or hinge schedules. As a hinge mounting plate in the Hinges|Hinge Base Plates category, it forms the interface between Sensys or Intermat hinges and the cabinet side, which keeps the door position consistent across multiple cabinets.
This 0mm cross mounting plate with direct height adjustment provides a defined starting position at the cabinet, and the height adjustment feature allows fine-tuning of the door reveal after mounting. The 1.5mm reference in the product name highlights the plate build, while the EN 15570 Level 3 quality classification indicates it is designed for hinge applications tested under that standard.
This hinge mounting plate is specified as a 0mm cross mounting plate, which sets the hinge at a consistent reference depth relative to the cabinet side. That stable reference helps keep overlay or gap dimensions closer to design values when drilling and mounting follow a standard process.
The hole line specification of 37mm x 32mm ties the plate to a defined pattern on the cabinet side, so drilling jigs or CNC programs built around that pattern can be used repeatedly. Installation with chipboard screws into 2.5mm drilled holes gives the plate a secure hold in chipboard cabinet sides, which is important where doors carry weight through the hinge system.
The direct height adjustment with an adjustment range of +2mm / -2mm allows the door position to be altered vertically at the plate. This adjustment capacity supports correcting small variations in cabinet construction or door size while keeping hinge and plate locations in the original drilling pattern.
This hinge mounting plate is designed for Sensys and Intermat hinges, so it is used where those hinge families are specified for cabinet doors. As a hinge mounting plate in the Hinge Mounting Plates product class, it sits between the hinge arm and the cabinet side, transferring door loads into the case.
The 37mm x 32mm hole line focus means the plate belongs in cabinet sides drilled on that pattern, which is common in system-based cabinet construction. By using a 0mm cross mounting plate, the hinge geometry remains aligned with standard drilling data, so cabinet doors can be hung in line with project drawings that call for those distances.
The nickel-plated finish of the steel plate contributes a smooth, uniform surface at the hinge interface. This matters around the hinge cup area, where the hinge arm locks onto the plate and is adjusted during fitting, because a consistent surface helps the hinge sit firmly without unwanted movement.
The direct height adjustment function lets the installer alter the vertical door position directly at the mounting plate, instead of altering cabinet or door drilling. With an adjustment range of +2mm / -2mm, the plate allows several millimeters of fine-tuning, which helps bring adjacent doors into alignment on multi-door runs.
The ability to adjust height at the plate also supports corrections when cabinet sides are slightly out of square or when doors vary slightly from nominal size. By turning the adjustment within its range, the door can be shifted up or down on the same screw pattern, which reduces rework during final fitting.
The EN 15570, Level 3 quality classification connects this mounting solution to a hinge performance standard, indicating it is built for use in hinge systems evaluated under that level. For projects built around that classification, using a plate with the same level supports consistency within the hinge assembly.
As a cross mounting plate for Sensys and Intermat hinges from Hettich America Corporation, this component plays a direct role in how smoothly the door operates over time. Its material, finish, defined hole pattern, and adjustment capability all combine to support repeatable, specification-based cabinet hardware installation.
This hinge mounting plate is specified for Sensys and Intermat hinges, so it is intended to pair with those hinge families in cabinet door installations.
The 37mm x 32mm hole line defines the drilling pattern on the cabinet side, allowing use of jigs or CNC programs designed around that spacing for consistent hinge locations.
The 0mm cross mounting plate designation indicates the plate creates a neutral mounting height, which helps keep hinge geometry aligned with standard drilling and overlay values.
This mounting plate has a direct height adjustment range of +2mm / -2mm, giving several millimeters of vertical movement to fine-tune cabinet door alignment.
The EN 15570 Level 3 classification places the hinge solution in a defined performance class, which supports projects that reference this hinge standard for hardware selection.
The nickel-plated steel construction provides a robust metal plate with a protective finish at the hinge connection, supporting long-term hinge function in regular cabinet use.
The Hettich America Corporation 9071671 hinge mounting plate combines nickel-plated steel construction, a 0mm cross mounting geometry, and direct height adjustment to support precise cabinet door fitting. Its 37mm x 32mm hole line and chipboard screw installation focus align it with system-based cabinet construction where drilling patterns and fastener details are defined.
When a project specifies Sensys or Intermat hinges with EN 15570 Level 3 performance, this cross mounting plate provides the intended interface between hinge arm and cabinet side. Use this plate where that hinge family, drilling pattern, and adjustment range match the cabinet design and door alignment needs.
Sold In: 1 Each
