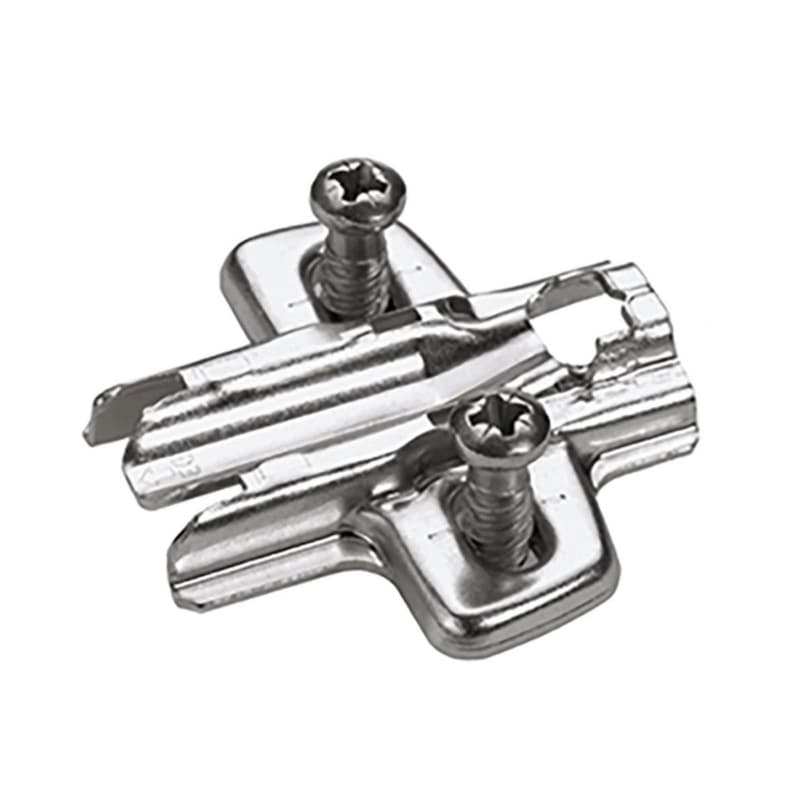

Adjustment cross mounting plate defines this Hettich America Corporation hinge mounting plate as a dedicated base for Sensys and Intermat hinges, so it serves as the connection between the cabinet side panel and the hinge arm in a typical cabinet workflow. The stated 0mm long cross mounting plate construction positions the hinge arm directly off the plate without additional setback, which helps keep overlay and reveal predictable on standard casework. The nickel plated finish creates a hard, smooth surface on the plate, which supports consistent hinge movement at the mounting interface during repeated door use. Its 1.5mm plate specification sets the mounting height off the side panel, so the hinge geometry matches cabinets designed around this plate thickness. The product is classified under hinges and hinge base plates, which defines its role as part of a concealed hinge assembly rather than a general fastener.
The specified installation with Euro screws for drilling diameter 5 x 8mm means this hinge mounting plate is designed to sit in pre-bored system holes, so the plate centers reliably on the 37mm x 32mm hole line during fitting. The direct height adjustment feature allows the hinge position on the plate to be shifted without moving the cabinet drilling, which is useful for dialing in reveals after the door and side panel are already fixed. The adjustment range of plus 2mm / minus 2mm in height provides a defined window for door movement, so an installer can correct minor drilling or door-size variation while keeping the hinge seated on the plate. The plate thickness of 1.5mm sets the working distance between the cabinet side and the hinge arm, which ties directly into the hinge manufacturers geometry for Sensys and Intermat hinges.
This hinge mounting plate is defined as a 0mm long cross mounting plate with 1.5mm thickness, so it suits cabinet constructions that are laid out for that specific plate geometry and hinge overlay calculation. The product description states it is for Sensys and Intermat hinges, which positions it specifically within those hinge systems rather than as a universal plate. The hole line of 37mm x 32mm connects it to cabinets drilled on that European system pattern, so it fits side panels laid out on that grid in shop or factory production. The plate is specified for half overlay doors from 16mm side panel thickness, which means it is intended for cabinets where the door covers about half the side panel edge and the side panel is at least 16mm thick. These combined details define its place in frameless-style or system-drilled cabinetry that uses Sensys or Intermat concealed hinges.
The adjustment range of plus 2mm / minus 2mm in height is built into this cross mounting plate, so door position can be moved vertically at the plate by up to 2mm in either direction to fine-tune reveals between doors and adjacent panels. This adjustment occurs at the mounting plate, which enables corrections without altering the cabinet drilling pattern on the 37mm x 32mm hole line. The installation method using Euro screws for drilling diameter 5 x 8mm connects the plate solidly to system holes in the side panel, so the plate body resists shifting while the hinge is being adjusted. Nickel plating on the plate gives a consistent metal surface at the hinge interface, so the hinge arm can be mounted and readjusted repeatedly while maintaining the stated adjustment range. Together with the plate thickness of 1.5mm, these details support repeatable hinge alignment on multiple cabinets built to the same drilling and overlay scheme.
This hinge mounting plate is described as for Sensys and Intermat, so it is intended to work within those specific Hettich concealed hinge systems in cabinet applications.
The 1.5mm thickness sets how far the hinge arm stands off the cabinet side panel, which ties into the calculated overlay and reveal in systems designed for this plate height.
The plus 2mm minus 2mm height adjustment range lets the installer shift the door position vertically on the mounting plate to correct small alignment differences between doors and panels.
The 37mm x 32mm hole line defines the drilling pattern the plate is designed for, so it aligns with standard system holes on side panels produced with that layout.
The plate is specified for installation with Euro screws for drilling diameter 5 x 8mm, so it is meant to be secured into matching system holes for a stable connection.
The plate is specified for half overlay doors from 16mm side panel thickness, so it fits cabinets where the door covers part of the side panel edge at that thickness or greater.
This Hettich America Corporation hinge mounting plate combines a 0mm long cross design, 1.5mm plate height, and direct height adjustment, so it supports accurate door alignment on Sensys and Intermat hinges. The 37mm x 32mm hole line and Euro screw installation for drilling diameter 5 x 8mm tie it directly to European system-drilled cabinetry, which is common in professional cabinet shops. For half overlay doors on side panels from 16mm thickness, this mounting plate provides the specified geometry and adjustment range of plus 2mm / minus 2mm to align with cabinets engineered around these dimensions and drilling patterns.
Sold In: 1 Each
