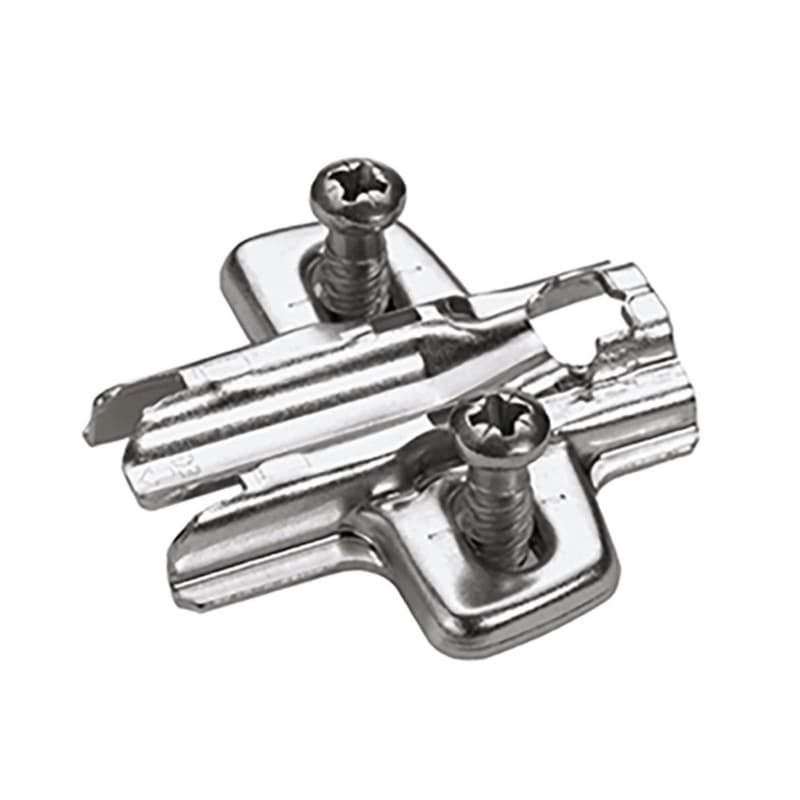

Euro screw mounting plate describes a 0mm long cross mounting plate that sets the hinge arm directly on the cabinet side, which helps keep reveals predictable when you are working from straight reference lines. This Hettich America Corporation hinge mounting plate is designed for Sensys and Intermat hinges, so it ties directly into common cup hardware on many modern cabinet jobs. The 0mm specification keeps the door position tight to the side panel, which suits typical frameless cabinet layouts where overlay is controlled at the hinge plate. Nickel-plated construction gives the mounting plate a hard, smooth surface, which supports consistent operation over time in normal cabinet environments. The plate belongs to the Hinge Mounting Plates product class and carries manufacturer part number 9071625, which helps match it with hinge arms and drawings during planning and ordering.
The 0mm long cross mounting plate works with half overlay doors from 16mm side panel thickness, so it supports common European-style case construction dimensions. Installation with Euro screws for drilling diameter 5mm x 8mm ties directly into system-bored cabinet sides, which keeps drilling operations straightforward in the shop. The hole line of 37mm x 32mm sets a repeatable reference, so hinges land where drawings expect them on every cabinet. Direct height adjustment and the plus 2mm / minus 2mm adjustment range give room to align doors vertically on the case, which helps achieve even gaps and smooth closing without shifting the cabinet itself.
This 0mm cross mounting plate is intended for Sensys and Intermat hinges, so it fits into projects already standardized on those cup hinge families. The plate works with half overlay doors, aligning the door edge so part of the cabinet side remains visible, which suits many frameless kitchen, bath, and casework layouts. Side panel thickness from 16mm upward is supported by the design, so standard European panel stock works within the stated range. The hole line 37mm x 32mm interfaces with typical system 32 drilling, positioning the plate on regular hole rows so planning software and drilling jigs stay in sync. By using Euro screws into 5mm x 8mm holes, the mounting approach follows widely adopted construction methods for cabinet shops relying on line boring equipment.
The direct height adjustment feature on this mounting plate means the hinge position can be shifted on the plate, which helps installers dial in door reveals without moving the cabinet or re-drilling casework. An adjustment range of plus 2mm / minus 2mm provides enough travel to correct small layout variations, which reduces time spent tracking down millimeter-scale drilling differences. The 0mm length sets a baseline relationship between hinge cup and cabinet side, so once one door is aligned, other doors using the same plates can follow the same drilling pattern. Nickel-plated finish on the mounting plate provides a smooth bearing surface for the hinge interface, which supports repeatable movement at the connection point between the hinge arm and plate. The quality classification under EN 15570, Level 3, places the plate within a tested performance level for hinge components, which supports confidence when specifying it for cabinets that will see regular, long-term door use. The clear manufacturer part number 9071625 helps tie this exact plate to hinge charts and project documents, which keeps substitutions under control when matching Sensys or Intermat layouts.
The Euro screw mounting plate is designed for Sensys and Intermat hinges, which lets hinge arms from those series attach correctly and maintain the intended door geometry.
The 0mm long cross mounting plate sets the hinge arm close to the cabinet side, which keeps the starting overlay position tight to the case for half overlay doors.
The mounting plate is made for a 37mm x 32mm hole line, which matches common cabinet system drilling so plates line up with standard row-bored panels.
The 0mm hinge base plate installs with Euro screws into 5mm by 8mm holes, which suits system-bored cabinet sides frequently produced on line-boring machines.
The mounting plate offers an adjustment range of plus 2mm and minus 2mm, which lets installers fine-tune door alignment vertically on the case.
The mounting plate is intended for half overlay doors on cabinets with side panel thickness from 16mm, which matches many frameless European-style cabinet constructions.
The Hettich America Corporation Euro screw mounting plate, manufacturer part 9071625, provides a 0mm long cross mounting plate with direct height adjustment, which suits installers standardizing on Sensys and Intermat hinge systems. Its design for half overlay doors with side panel thickness from 16mm and a 37mm x 32mm hole line ties directly to common European cabinet construction. By using Euro screws into 5mm by 8mm holes and offering plus 2mm / minus 2mm adjustment, this hinge mounting plate supports precise door alignment on production cabinet runs.
Sold In: 1 Each
