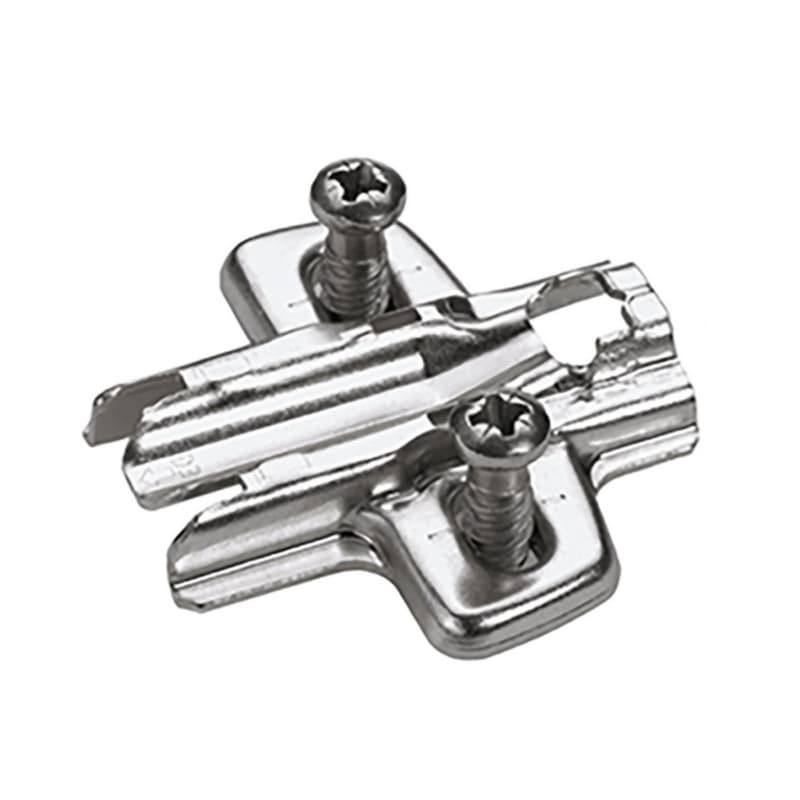

Adjustment cross mounting plate defines this Hettich America Corporation hinge mounting plate as a precise base for Sensys and Intermat hinges in cabinet construction. The 0mm long cross mounting plate keeps the hinge arm position neutral, which helps maintain consistent reveal and overlay planning across a run of doors. Nickel plated construction provides a hard, smooth surface, which supports clean hinge articulation at the cabinet side. The plate works with half overlay doors, so it aligns well with frameless cabinet layouts that use shared partition panels. An adjustment range of plus 2mm / minus 2mm in height gives room to correct minor drilling tolerances, which helps bring door tops and bottoms into line after hanging. The design pairs with side panels from 16mm thickness, so it matches common European-style carcass material in many shop workflows.
The 37mm x 32mm hole line anchors this hinge mounting plate to a consistent drilling grid, which supports fast setup on boring equipment and clear reference points during layout. Installation with Euro screws into 5mm by 8mm holes connects the plate solidly to the side panel, which promotes stable hinge performance under regular door use. The built-in direct height adjustment offers plus 2mm to minus 2mm movement, giving room to correct small misalignments after doors are hung instead of altering carcass drilling. Zero millimeter length on the cross mounting plate keeps the hinge arm position predictable, which supports uniform gaps around doors sharing the same cabinet. Designed for half overlay doors and side panel thickness from 16mm, the plate aligns with standard European-style cabinet construction methods.
This hinge mounting plate works with Sensys and Intermat hinges, so it integrates into projects already using those lines across kitchen, bath, or casework runs. The 37mm x 32mm hole line fits drilling patterns based on a Euro line-bore system, which suits production shops and serious DIY layouts using templates or boring machines. Use on half overlay doors means it serves cabinets where doors share a partition, so the plate helps maintain consistent overlays on both sides of a panel. Designed for side panel thickness from 16mm, it matches common carcass materials in frameless cabinetry, allowing the same plate to be used across multiple cabinet sizes within a job.
The 0mm long cross mounting plate sets the hinge arm at a defined baseline, which simplifies planning reveals and overlay when using software or cut lists tied to standard hardware geometry. Direct height adjustment with a plus 2mm / minus 2mm range allows the installer to bring door tops and bottoms into a straight line, which reduces time spent reshimming or redrilling. Installation with Euro screws into 5mm by 8mm holes fits established drilling tools, so mounting can proceed quickly without custom jig work. Nickel plating on the hinge mounting plate presents a smooth, corrosion-resistant surface, which supports consistent hinge function over time in typical cabinet environments. Quality classification under EN 15570, Level 3 identifies the plate as tested to a defined European hinge standard, which helps align hardware choice with projects that call for standardized performance ratings.
This hinge mounting plate is designed for Sensys and Intermat hinges, allowing the same base plate to be used when those hinge families are specified across a project.
The hinge mounting plate offers a direct height adjustment range of plus 2mm to minus 2mm, giving room to straighten door lines after installation without altering the drilling pattern.
The plate uses a 37mm x 32mm hole line and installs with Euro screws into 5mm by 8mm holes, tying it directly to standard Euro line-boring workflows.
This hinge mounting plate is intended for half overlay doors on side panels from 16mm thickness, matching common frameless cabinet carcass construction.
0mm long cross mounting plate means the hinge arm sits on a neutral baseline, helping predict overlay and reveal when designing and repeating cabinet door layouts.
The hinge mounting plate carries a quality classification under EN 15570, Level 3, indicating testing to a defined European hinge performance standard.
This Hettich America Corporation hinge mounting plate combines a 0mm long cross mounting plate design with direct height adjustment, giving Sensys and Intermat hinge installations a predictable baseline and useful fine-tuning on site. The 37mm x 32mm hole line and Euro screw installation into 5mm by 8mm holes keep the work tied to standard Euro drilling patterns, which helps cabinets move smoothly from boring to hanging. For half overlay doors on 16mm side panels, this plate supports consistent overlays and quick alignment across a full cabinet run when ordered for upcoming jobs.
Sold In: 1 Each
