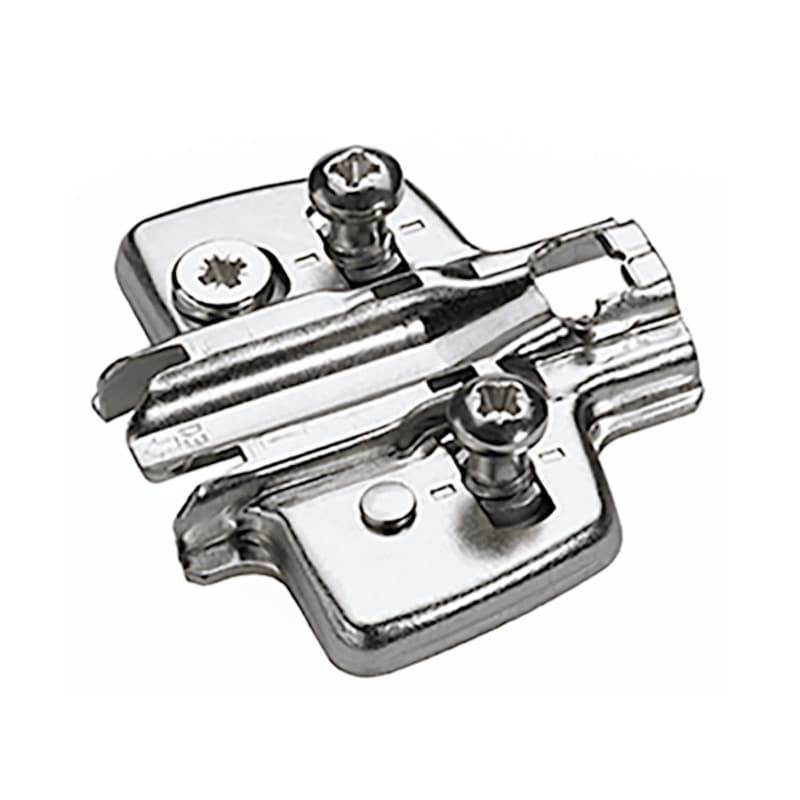

Adjustment cross mounting plate 0mm gives you a flat reference plate for hinge mounting, so the door sits at the carcass level and you control overlay through the hinge and drilling pattern. The plate is designed for Sensys and Intermat hinges, so it ties directly into those systems on new builds or when matching existing hardware. Direct height adjustment is built into the plate, so you can move the door position on the cabinet without shifting the cup hole. The nickel-plated finish covers the mounting plate, so the metal surface stays uniform where it is visible inside the cabinet. As a hinge mounting plate, it sits between the cabinet side and the hinge arm, so it carries door loads into the side panel.
This hinge mounting plate installs with Euro screws into 5 x 8mm system holes, so it drops into pre-drilled lines rather than relying on layout by hand. The 37mm x 32mm hole line reference keeps both screws on a consistent grid, which supports repeatable hinge positioning across a run of cabinets. Direct height adjustment built into the plate gives you plus 2mm to minus 2mm movement, so you shift the door edge vertically while the cup stays fixed in the door. The 0mm cross mounting plate geometry keeps the hinge arm at a neutral distance from the side panel, which works with half overlay doors from 16mm side panel thickness as stated.
This 0mm long cross mounting plate is specified for Sensys and Intermat hinges, so it fits projects built around those hinge platforms. The plate is suited for half overlay doors, so the door covers part of the side panel while leaving a reveal that is set by drilling and hinge choice. Use on side panels from 16mm thickness, so the Euro screw anchoring and geometry match that board dimension. The plate fits a 37mm x 32mm hole line, so it ties into cabinets drilled on that system row. Quality classification under EN 15570, Level 3 applies to this component, so its performance aligns with that hinge standard when used as part of the hinge assembly.
The plus 2mm to minus 2mm height adjustment range on the mounting plate lets you bring door gaps into line after installation, so small deviations in drilling or carcass squareness do not show at the front. Direct height adjustment on the plate keeps the correction at the cabinet side, so you do not disturb the cup hole or need to relocate the hinge arm on the door. Nickel-plated finish on the mounting plate protects the plate surface, so sliding adjustments under the hinge arm are smooth. With installation by Euro screws into 5 x 8mm drillings, the plate engages the full depth of the system hole, so it supports the hinge under door load. As part of a hinge assembly classified under EN 15570, Level 3, this plate supports applications where that classification is required.
This mounting plate is for Sensys and Intermat hinges, so it integrates directly with those hinge arms in cabinet door applications.
This hinge mounting plate offers plus 2mm to minus 2mm height adjustment, so you can shift doors vertically to align reveals across a cabinet run.
This plate mounts with Euro screws into 5 x 8mm drillings on a 37mm x 32mm hole line, so it fits system-drilled cabinet sides.
This plate is designed for half overlay doors on side panels from 16mm thickness, so the geometry matches that cabinet construction.
0mm long means the plate does not add offset between hinge arm and panel, so hinge geometry and drilling pattern control the door overlay.
This plate carries quality classification under EN 15570, Level 3, so it is specified to work within hinge assemblies designed to that standard.
This adjustment cross mounting plate with 0mm length, plus 2mm to minus 2mm height adjustment, and Euro screw mounting supports precise fitting of Sensys and Intermat hinges on 37mm x 32mm hole lines. For half overlay doors on 16mm side panels built to EN 15570, Level 3 assemblies, this hinge mounting plate from Hettich America Corporation provides the specified interface between hinge arm and cabinet side.
Sold In: 1 Each
