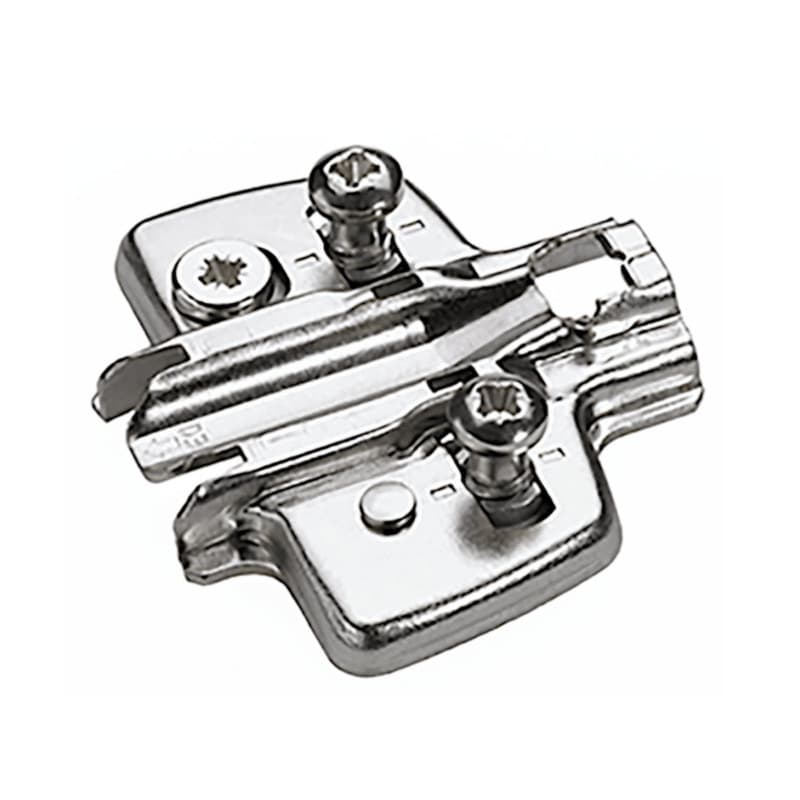

cross mounting plate with direct height adjustment from Hettich America Corporation is a hinge mounting plate designed for Sensys and Intermat hinge systems, so it ties directly into modern cabinet hinge layouts on woodworking jobs. The 3mm plate thickness sets a defined hinge position relative to the cabinet side, which controls door alignment across a run of cabinets. The 0mm long cross design keeps the mounting footprint tight, which helps when working in compact face or frameless cabinet interiors. Its nickel-plated finish provides a hard, smooth surface, supporting consistent movement where the hinge arm locks onto the plate. As a hinge mounting plate, it forms the fixed reference point between the cabinet side and the hinge arm, which is critical for repeatable drilling, mounting, and adjustment tasks on multiple doors.
This hinge mounting plate installs on a 37mm x 32mm hole line using Euro screws in drilled 5mm x 8mm holes, so the plate locates from fixed reference points in the cabinet side. With the 3mm plate thickness and half overlay door design, hinge arms land in a predictable position that supports consistent overlay planning on frameless or system-based cabinetry. The direct height adjustment built into the plate provides an adjustment range of plus 2mm to minus 2mm, which lets the installer move the door up or down relative to the cabinet without redrilling or shifting the case. Because the adjustment is on the plate itself, fine-tuning can be done after the hinge is mounted, improving workflow on site or at the bench.
This cross mounting plate is defined for Sensys and Intermat hinge lines, so it integrates into hinge runs already based on those systems. The 37mm x 32mm hole line specification matches common system drilling in cabinet production, allowing the plate to drop into pre-bored case sides without custom layout. Its 3mm plate dimension works with half overlay doors on cabinets built from side panels starting at 16mm thickness, which aligns with many European-style carcasses. Because the Euro screw installation calls for 5mm x 8mm holes, the plate ties into standard line-boring patterns that shops already use for adjustable shelving and hardware. The 0mm long cross layout keeps the hinge reference compact around the line of holes, which simplifies fitting in tight cabinet interiors where space around the hinge is limited.
The direct height adjustment feature offers an adjustment range of plus 2mm to minus 2mm at the plate, giving precise vertical control of the door after the hinge is mounted. This lets installers align door tops and bottoms across a full bank of cabinets by turning an adjustment on the plate rather than altering the cabinet body. Using Euro screws into 5mm x 8mm drilled holes centers the fastener in the hole and seats the plate firmly against the panel, which supports stable reference points for the hinge arms. The nickel-plated finish on the mounting plate provides a smooth, hard surface under the hinge clip connection, helping maintain consistent clamping between the hinge and plate during repeated door adjustments. Quality classification under EN 15570, Level 3, identifies that the plate is part of a hinge system tested to that European hinge standard level, which gives shops a defined performance category when selecting hardware for cabinet projects.
This cross mounting plate is specified for Sensys and Intermat hinge systems, so it serves as the cabinet-side base for those hinge arms in cabinet installations.
The mounting plate is designed for a 37mm x 32mm hole line, so it fits cabinets drilled on that system pattern for straightforward alignment.
The plate installs with Euro screws into 5mm x 8mm drilled holes, which matches standard system holes in many frameless cabinet constructions.
The mounting plate is defined for half overlay doors from 16mm side panel thickness, so it suits many European-style cabinet carcasses.
The direct height adjustment on the plate offers a range of plus 2mm to minus 2mm, allowing vertical fine tuning of the mounted door.
The EN 15570, Level 3 classification identifies that this plate belongs to a hinge system assessed to that European hinge performance level category.
The cross mounting plate with direct height adjustment, 3mm thickness, and 0mm long cross layout provides a defined base for Sensys and Intermat hinges on half overlay doors. With a 37mm x 32mm hole line, Euro screw installation into 5mm x 8mm holes, and suitability for side panels from 16mm thickness, it fits directly into common cabinet drilling setups. Choosing this plate aligns hinge layout, vertical adjustment, and door style around a single, repeatable hardware reference in shop or field work.
Sold In: 1 Each
