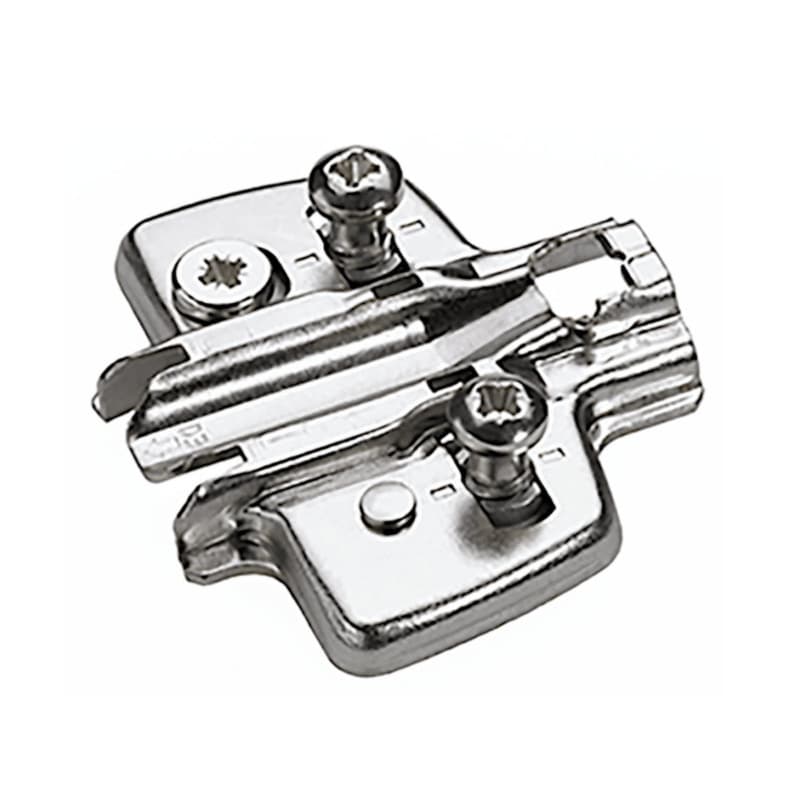

Sensys cam adjustable wing mounting plate is a cross mounting plate designed for Sensys and Intermat hinges, so it provides the interface between the cabinet and the hinge arm in those systems. This plate offers direct height adjustment through a cam mechanism, which lets you shift the door position without moving the cabinet drilling layout. The specified distance of 0.0 mm sets the hinge arm at carcass level, which helps keep overlay calculations consistent across a run of cabinets. An adjustment range of plus 2 mm / minus 2 mm in height gives room to correct minor drilling variances or carcass sag while the doors stay installed. The plate is manufactured from nickel plated steel, so the mounting surface is robust and has a plated finish that resists typical shop and kitchen conditions.
This hinge base plate is installed with Euro screws into 5 x 12 mm system holes on a 37 x 32 mm hole line, so it drops into common European cabinet drilling without layout changes. The cam provides direct height adjustment on the plate, giving a plus 2 mm to minus 2 mm vertical range at the hinge connection. That adjustment range allows door reveal and alignment corrections on installed doors, instead of shifting the cabinet or redrilling. The distance rating of 0.0 mm sets the plate level with the reference surface, so hinge arms engineered for this height can deliver their designed overlay and closing action on the cabinet.
This part is defined as a cross mounting plate with direct height adjustment for Sensys and Intermat hinges, so it is intended to sit between those hinge arms and the cabinet side. By matching the hinge families named in the description, the plate keeps geometry consistent with those systems, which supports predictable door overlay and closing behavior. The 37 x 32 mm hole line specification ties the mounting to a standard system drilling grid, so it suits cabinets produced with that line-bored spacing on the side panels. Because installation uses Euro screws in 5 x 12 mm holes, the plate integrates with typical 32 mm system case construction, allowing it to be used wherever that drilling pattern and hole size are present in the carcass.
The cam mechanism on this plate provides direct height adjustment with a plus 2 mm to minus 2 mm range, so the hinge position can be fine-tuned vertically after the plate is fastened to the cabinet. This allows installers to correct small cabinet racking or drilling tolerances by rotating the cam instead of relocating mounting holes, which supports cleaner reveals across multiple doors. The distance value of 0.0 mm defines the mounting plane for the hinge arm, so repeated use of this plate across a run of units keeps the hinge connection height uniform from cabinet to cabinet. Quality classification under EN 15570, Level 3, links the plate to a hinge performance category defined in that standard, so spec-driven projects that call out this level can reference the classification when selecting associated components. The nickel plated steel material gives the adjustment cam and bearing surfaces a hard, plated base, so the adjustment function operates on a stable metal platform during normal cabinet service.
This hinge mounting plate is described for Sensys and Intermat, so it is intended to be used within those Hettich hinge systems on suitable cabinet layouts.
The cam on this plate gives a height adjustment range of plus 2 mm to minus 2 mm, so door positions can be shifted vertically to refine gaps and reveals.
The plate is specified for a 37 x 32 mm hole line, so it mounts to cabinet sides drilled on that standard line-boring spacing used in many 32 mm system cases.
This mounting plate is installed with Euro screws for drilling 5 x 12 mm, so it engages Euro-style system holes in the cabinet side panels.
The 0.0 mm distance means the mounting surface aligns with the reference plane, so hinge arms designed for this height can deliver their intended overlay on the cabinet.
The plate is made from nickel plated steel, so the hinge base surface is rigid and has a plated finish suited to typical cabinet environments.
This hinge mounting plate from Hettich America Corporation pairs with Sensys and Intermat hinges, so it suits projects built around those systems. The 0.0 mm distance, 37 x 32 mm hole line, and Euro screw installation define how it fits into 32 mm cabinets. With cam-based direct height adjustment offering plus 2 mm to minus 2 mm travel, it supports fine-tuning of door alignment on site using the installed drilling pattern. For work calling for an EN 15570 Level 3 classified hinge solution, this nickel plated steel plate provides a base plate option that matches that specified performance level.
Sold In: 1 Each
