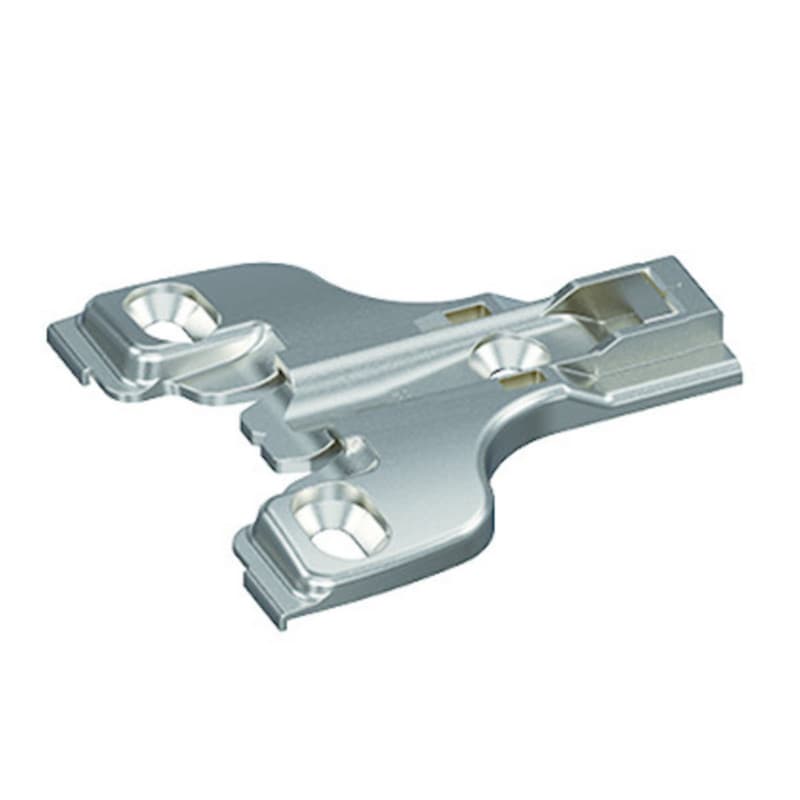

Sensys cam adjustment face frame mounting plate from Hettich America Corporation is a hinge mounting plate designed for face frame applications, so it anchors the hinge to the cabinet structure where frame construction is used. The mounting plate has a distance of 4.5 mm, which positions the hinge relative to the frame for a consistent door overlay line across multiple openings. Its design as a hinge mounting plate places it in the hinge base plates product class, giving you a dedicated interface between cabinet frame and hinge arm. The part is identified as Manufacturer Part 9084931, which ties your project or service work to a specific, repeatable component. This face frame baseplate is nickel-plated die-cast zinc, so the metal body and surface treatment provide a solid hinge connection with a finish suited to typical cabinet environments.
This face frame mounting plate is installed by screwing it on, so it relies on direct screw attachment to the frame for its holding power. With a distance of 4.5 mm between frame surface and hinge interface, the plate positions the hinge geometry so that doors can be set to a planned overlay or inset pattern when coordinated with the hinge design. The oblong hole height adjustment provides an adjustment range of plus 2 mm and minus 2 mm, giving you room to shift the plate and hinge together up or down for cleaner door reveals without re-drilling. Because the plate is laid out around a hole line of 9.5 x 40 mm, its screw positions are arranged to follow that line, which supports consistent drilling and repeatable placement across multiple cabinets.
This component is a hinge mounting plate designed specifically as a face frame mounting plate, so it fits cabinet builds that use a front frame rather than frameless construction. The 4.5 mm distance specification defines how far the hinge will sit from the face frame surface, which influences how the door edge sits relative to the frame opening in typical kitchen, bath, or casework cabinets. Its hole line of 9.5 x 40 mm means the screw positions follow that spacing, so in shops that drill on that line, the plate can be positioned along the frame in a repeatable way that speeds layout. The plate is part of the Sensys cam adjustment family, pairing with Sensys hinges so that the hinge arm can clamp to a base that is already aligned to the cabinet frame. Being a hinge base plate in the hinge mounting plates category, it fills the role of the structural link between cabinet and hinge.
The oblong hole height adjustment built into this mounting plate works with an adjustment range of plus 2 mm and minus 2 mm, giving you vertical play to tune door position after the initial screw-on mounting. That range lets the hinge and door shift slightly without moving the screw centers, which helps correct small drilling or layout variances on site or in the shop. The die-cast zinc body provides a rigid metal platform, so the hinge loads transfer through a solid casting rather than through a thinner stamping. Its nickel-plated finish adds a treated surface to the zinc base, which suits the concealed hinge area inside cabinets where metal visibility and surface condition still matter. The plate carries a quality classification under EN 15570, Level 3, so it aligns with a tested hinge standard that addresses performance level in normal hinge applications.
This face frame mounting plate is designed for face frame applications, so it suits cabinets built with a front frame where the hinge mounts to that frame.
The face frame baseplate provides an adjustment range of plus 2 mm and minus 2 mm through the oblong hole, so you can move the hinge position up or down to refine door gaps.
The hinge mounting plate is specified for a hole line of 9.5 x 40 mm, so its screw layout matches that drilling pattern along the cabinet frame.
The Hettich hinge mounting plate is installed for screwing on, so it attaches to the face frame using screws through the plate holes into the cabinet material.
The face frame baseplate is made from die-cast zinc with a nickel-plated finish, so it provides a solid metal body with a treated surface suited to hinge mounting.
The 4.5 mm distance on this hinge mounting plate describes how far the hinge interface sits from the face frame, influencing the final door position relative to the frame.
The Sensys cam adjustment face frame mounting plate with 4.5 mm distance, oblong hole height adjustment of plus 2 mm and minus 2 mm, and hole line of 9.5 x 40 mm gives a defined geometry for setting up face frame hinge positions. Its screw-on installation, die-cast zinc nickel-plated construction, and EN 15570 Level 3 quality classification support a dedicated hinge mounting point inside cabinets. Using this Hettich 9084931 hinge mounting plate through Wurth Baer Supply aligns your projects to a specific, repeatable face frame baseplate standard.
Sold In: 1 Each
