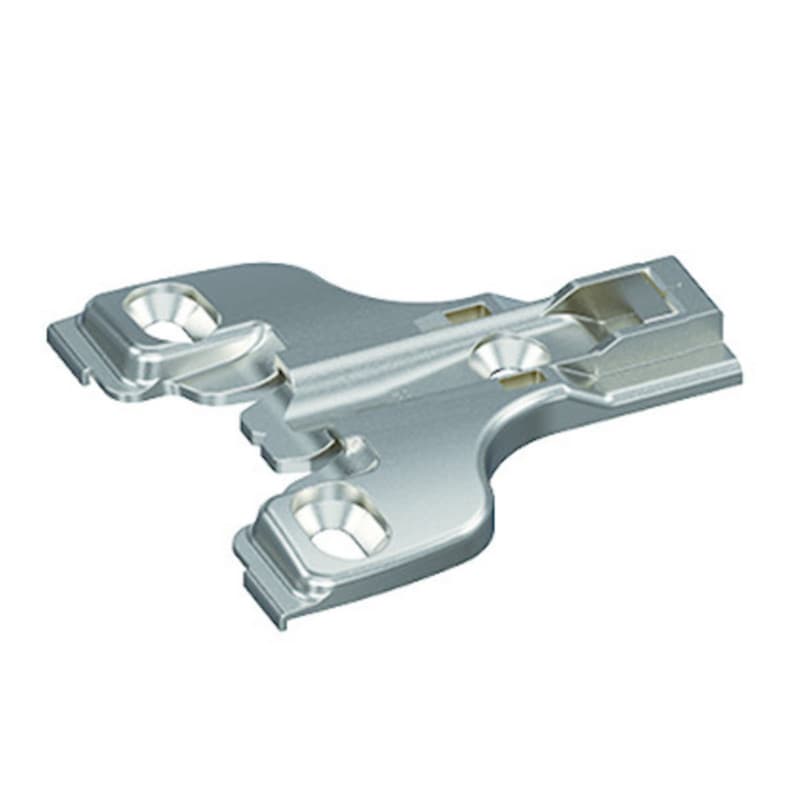

Sensys cam adjustment face frame mounting plate gives a dedicated mounting surface for Sensys hinges on face frame cabinetry, so the hinge seats on a defined plate instead of raw wood and keeps door motion tied to a repeatable reference point. The 0mm mounting plate height holds the hinge cup relationship close to the face frame, which keeps overlay and reveal in the range intended for a 0mm plate. Screw-on mounting lets the plate fasten directly with countersunk screws, creating a mechanical connection that stays aligned to the frame. Nickel plated die-cast zinc construction forms a rigid plate body, so the hinge loads transfer through a solid piece instead of a flexing bracket. The nickel plated surface covers the base material with a finished layer, helping the plate present a consistent look when viewed inside the cabinet run. Can only be used with Sensys hinges, so the hinge and plate geometry stay matched.
This 0mm screw on hinge base plate fastens to the face frame with 4mm x 20mm countersunk screws, so the screw length and diameter follow the plate specification and suit the mounting holes. Hole spacing of 40mm sets the distance between screw locations, letting the installer drill on a fixed center-to-center layout across multiple openings. Countersunk holes in the plate take the matching screw heads down to the plate surface, giving the hinge a flat seating area over the fasteners. The screw-on approach keeps the plate directly tied to the frame material, so hinge loads pass into the face frame through the screw group. Once installed, the plate height of 0mm establishes the starting point for Sensys hinge geometry at the frame edge.
This Sensys cam adjustment face frame mounting plate is specified for face frame cabinetry where a Sensys hinge will be used, so the frame acts as the structural support and the plate becomes the defined hinge landing surface. The plate belongs to the hinge mounting plates product class and sits in the hinge base plates category, which places it as the interface between the door hinge arm and the cabinet frame. Because it can only be used with Sensys hinges, the plate geometry aligns with Sensys hinge arms, so the connection points between arm and plate are controlled by matched parts. Hole spacing of 40mm sets a standard pattern on the face frame, allowing repeated layouts across cabinet runs that use Sensys hinges.
The oblong hole height adjustment plus or minus 2mm gives a vertical adjustment window at the plate, allowing the plate position to shift within the slot so hinge height can be tuned after the screws are driven. That oblong hole provides clearance around the screw shank, so the plate can move slightly up or down while the screws are loosened and then locked again to hold the new height. This cam adjustment face frame mounting plate works together with Sensys hinge adjustments to fine-tune the door position relative to the frame opening. With a 0mm plate height, the plus or minus 2mm slot travel targets height alignment without changing the basic overlay reference, which helps keep reveals consistent while correcting for installation variations or frame irregularities.
The mounting plate height is 0mm, which holds the hinge arm close to the face frame and keeps the door overlay based on a flat, non-raised plate position.
This face frame mounting plate can only be used with Sensys hinges, so the hinge arm connection and geometry are matched to the Sensys system.
The hinge base plate is designed for 4mm x 20mm countersunk screws, matching the plate hole sizing and typical face frame thickness for mounting.
The mounting plate has 40mm hole spacing, setting a fixed center-to-center distance that supports consistent drilling patterns on multiple cabinet openings.
The plate offers oblong hole height adjustment of plus or minus 2mm, letting the installer shift the plate vertically to align doors with the frame opening.
The mounting plate is nickel plated die-cast zinc, combining a solid metal body with a nickel surface for a uniform metallic appearance inside the cabinet.
The Sensys cam adjustment face frame mounting plate, nickel plated die-cast zinc with 0mm height, gives a defined landing surface for Sensys hinges on face frames while keeping the hinge arm close to the cabinet front. With 4mm x 20mm countersunk screw mounting, 40mm hole spacing, and plus or minus 2mm oblong hole height adjustment, the plate supports repeatable layouts and on-site tuning of door alignment. For work built around Sensys hinges on face frame cabinetry, this dedicated mounting plate matches the hinge interface and geometry so the hinge system performs as intended across the run.
Sold In: 1 Each
