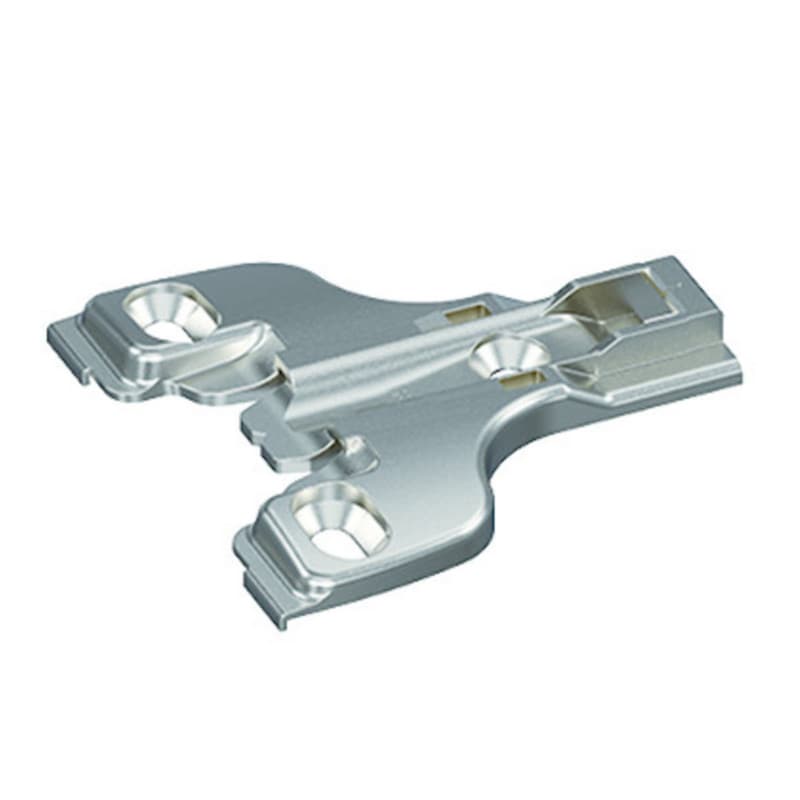

Face frame mounting plate 1.5mm defines this Hettich hinge mounting plate as a low-profile base that establishes the hinge position on a face frame cabinet. The 1.5mm plate thickness sets a consistent mounting height, which helps keep door reveals uniform across a run of cabinets. The part is designed as a hinge mounting plate, so it provides the interface between the cabinet face frame and compatible Sensys hinges during assembly work. As a face frame solution, it supports typical North American cabinet construction where hinges must land accurately on the frame rather than on a full-overlay side panel.
This plate is identified by manufacturer part 9088247 from Hettich America Corporation, which lets shop staff match it to drawings, cut lists, or prior jobs that specify this exact component. The product sits in the hinge mounting plates category, so it is intended to be used as part of a hinge system rather than as general hardware, helping keep component selection focused on the door-hanging task.
The 1.5mm thickness of the face frame mounting plate determines how far the hinge sits off the frame, which affects overlay and reveal on Sensys-hinged doors. With the plate set to this thickness, the hinge geometry follows the pattern Hettich specifies for Sensys hinges using this base. Hole spacing of 40mm sets the lateral distance between screw points, so once the first plate is located, repeated installations can follow the same measurements for consistent hinge spacing across the cabinet line.
The oblong hole height adjustment plus or minus 2mm gives a vertical tolerance window when driving the 4mm x 20mm countersunk screws. This slotted design lets the installer slide the plate slightly before locking it down, which helps correct for minor drilling deviations or cabinet construction variances while aiming for clean, level door alignment.
This component is a face frame baseplate, so it is meant to sit on the front frame of a cabinet and work specifically with Sensys hinges. By acting as the mounting interface for Sensys hinges on face frame construction, it lets the hinge system function correctly even when there is no full-height side panel for direct screw mounting. The hinge base plate category designation confirms that this part belongs at the cabinet side of the hinge connection, carrying the load of the door back into the frame.
Because the hole spacing is 40mm, the plate creates a repeatable grid for hinge positions along a cabinet run. Once a drilling setup is dialed in for that spacing, the same pattern can be used across multiple frames. The 1.5mm thickness then keeps the hinge setback consistent from cabinet to cabinet, which supports uniform overlay when the same Sensys hinge model is used throughout a project.
The oblong hole height adjustment plus or minus 2mm works together with the 4mm x 20mm countersunk screws to provide a controlled way to fine-tune door position. When screws sit in slotted holes, the plate can move slightly before being tightened, allowing the installer to raise or lower the hinge centerline in small increments. This helps bring door tops and bottoms into a straight visual line when cabinets are installed in rooms where walls or floors are not perfectly true.
Nickel plated die-cast zinc gives the mounting plate a rigid body with a finished surface. The die-cast zinc construction forms a stable platform for the Sensys hinge arm, supporting smooth door movement because the hinge load rests on a solid metal base. The nickel plated finish adds a bright metallic look inside the cabinet interior, coordinating with other nickel plated hinge components so the hardware presents a consistent appearance when doors are open.
The face frame mounting plate is used on face frame cabinets, where it fastens to the frame and provides the mounting interface for Sensys hinges.
The 1.5mm plate thickness sets how far the hinge sits off the face frame, influencing overlay and reveal when paired with Sensys hinges.
The 40mm hole spacing defines the distance between screw points, helping drilling setups repeat the same layout for each mounting plate on multiple cabinets.
The oblong hole height adjustment plus or minus 2mm allows small vertical shifts of the plate before tightening screws, which helps bring doors into alignment.
This mounting plate is designed to be used only with Sensys hinges, so it supports that specific hinge geometry on face frame cabinets.
The hinge mounting plate is made from nickel plated die-cast zinc, providing a rigid metal base and a bright metallic finish inside the cabinet.
This Hettich face frame mounting plate 1.5mm offers a defined combination of plate thickness, 40mm hole spacing, and oblong hole height adjustment plus or minus 2mm for Sensys hinges. For projects using face frame cabinets with Sensys hardware, the nickel plated die-cast zinc construction and 4mm x 20mm countersunk screw interface give a specific, repeatable mounting solution that ties the hinge system solidly back to the frame.
Sold In: 1 Each
