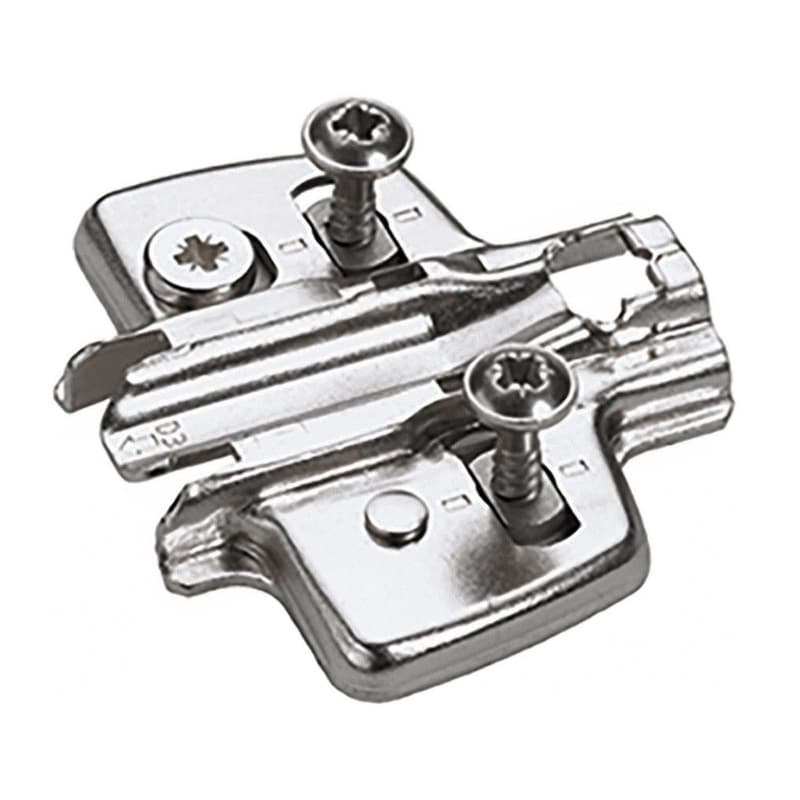

0mm long cross mounting plate gives you a zero-height base reference, so the hinge arm starts flush at the cabinet side and you control overlay with door position instead of plate height. This mounting plate is designed for Sensys and Intermat hinges, keeping your hinge program unified when you are running mixed lines but want consistent drilling and adjustment behavior across jobs. Steel construction provides a solid interface between hinge and cabinet, supporting stable alignment under normal cabinet use. The nickel-plated finish adds a protected surface on the working hardware, which matters on busy doors that see frequent movement over time. As a hinge mounting plate in the Hinge Mounting Plates class, it ties the hinge to the cabinet precisely where drilling patterns and adjustment really matter. Hettich America Corporation branding supports use alongside other Hettich hinge components on the same run.
This cross mounting plate uses the Hettich Direct installation system with a locating pin and special screws for drilling 5 x 7.5mm, so the bore size and pattern are clearly defined before you start machining. The 37mm x 32mm hole line matches common system rows, which supports straight transfer from design to drilling when you follow this standard grid. Direct height adjustment built into the plate provides an adjustment range of plus 2mm to minus 2mm, giving you vertical movement at the mounting point so you can align door reveals without modifying the case. Because the plate is specified for half overlay doors from 15mm side panel thickness, the overlay behavior is predictable when you stay within this cabinet side range and match it with Sensys or Intermat hinge data.
This 0mm long cross mounting plate is specified for Sensys and Intermat hinges, so it fits cabinet runs where both hinge series are in use but you want a common mounting solution. The plate is intended for half overlay doors, tying the hinge arm geometry to that overlay style so your layout work aligns with door coverage expectations on the front of the cabinet. It is rated with quality classification under EN 15570, Level 2, placing it in a tested performance category that matches typical furniture hinge applications. The 37mm x 32mm hole line orientation works with cabinet carcasses built around that drilling standard, which is common in system-32 style construction and many production shops. Because the plate is designed for cabinet side panels from 15mm thickness, it fits well with standard European-style case materials in that range.
Hettich Direct mounting using a locating pin and special screw connection for drilling 5 x 7.5mm provides a defined installation method that supports repeatable results once your jigs or CNC are set up. The plus 2mm to minus 2mm direct height adjustment range in the plate gives you room to move the door up or down in small increments, which is practical when you are bringing multiple doors into alignment across a wide cabinet bank. The 0mm plate height keeps the hinge arm geometry close to the cabinet side, giving a consistent reference when calculating drilling distances from the front edge for half overlay doors. Steel construction with nickel-plated finish provides a robust, metal-to-metal interface between hinge arm and cabinet, supporting stable alignment under regular opening and closing conditions. Working with the Hettich America Corporation part number 9071650 lets you match documentation, hinge charts, and project records directly to this specific mounting plate.
This cross mounting plate is specified for Sensys and Intermat hinges, so it can be used wherever those Hettich hinge series are installed on cabinet doors.
The mounting plate has a 0mm height with direct height adjustment of plus 2mm to minus 2mm, allowing fine vertical tuning of the door position on the cabinet.
The plate is designed for a hole line of 37mm x 32mm, matching standard cabinet system layouts so existing drilling programs using that grid can be applied.
This mounting plate uses Hettich Direct installation with a locating pin and special screws for drilling 5 x 7.5mm, giving a defined bore size and mounting layout.
The plate is specified for half overlay doors and cabinet side panel thickness from 15mm, aligning with common case materials in European-style cabinetry.
The EN 15570 Level 2 classification places this hinge mounting plate within a defined quality level for furniture hinges, aligning it with typical cabinet and furniture use.
Choose this 0mm long cross mounting plate when a zero-height base, Sensys and Intermat compatibility, and a 37mm x 32mm hole line match your cabinet program. The Hettich Direct system with locating pin and special screw drilling 5 x 7.5mm gives you a clear installation path, while the plus 2mm to minus 2mm height adjustment range supports clean door alignment across half overlay fronts on 15mm cabinet sides. Using the Hettich America Corporation part 9071650 keeps your hinge planning, drilling, and adjustment coordinated on projects built around this hardware family.
Sold In: 1 Each
