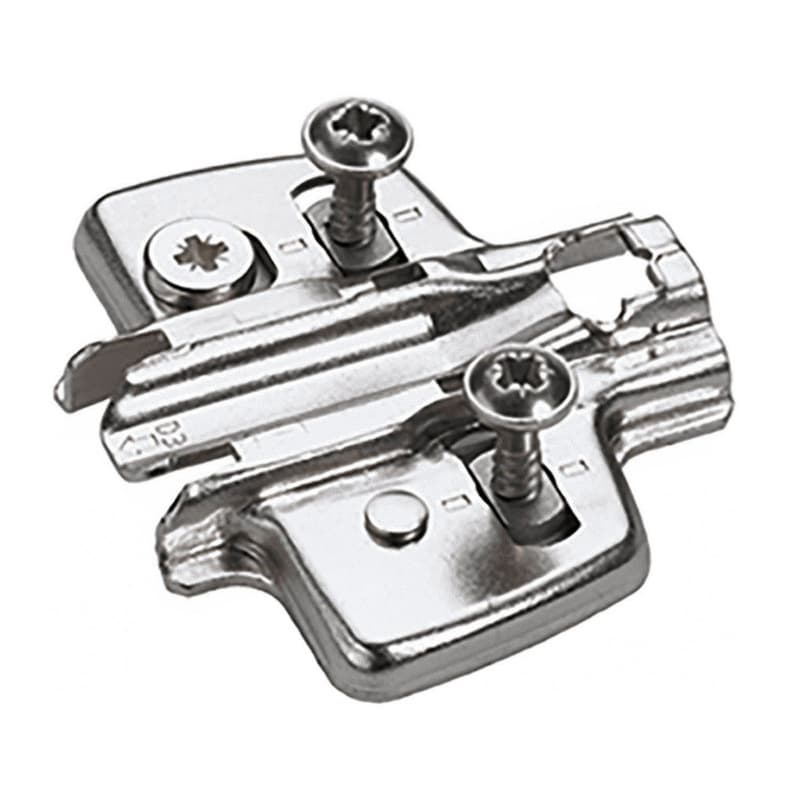

Adjustment steel cross mounting plate is a hinge mounting plate designed for Sensys and Intermat hinges, so it gives a consistent interface between the cabinet and the hinge arm on those systems. The 0mm long cross mounting plate layout lets the hinge geometry, not the plate length, define the door position, which helps keep overlay calculations straightforward on new installs and replacements. Its 1.5mm plate height sets a predictable gap between hinge and cabinet side panel, which supports accurate door alignment across multiple doors. The steel construction provides a solid base for hinge forces, which matters on heavier doors and frequent use cabinets where the plate carries ongoing load. The nickel-plated finish provides a hard, smooth surface at the hinge connection points, which supports clean hinge motion over time on Sensys and Intermat applications.
The 37mm x 32mm hole line specification defines where the mounting plate lands on the cabinet side, which streamlines drilling patterns in production and helps keep hinge arms working in their intended geometry. The Hettich Direct installation method with locating pin sets the plate into a fixed reference point, which reduces lateral creep during tightening and supports straighter door lines on stacked cabinets. The 1.5mm plate height determines how the hinge arm sits off the side panel, which directly affects reveal and overlay on half overlay doors using Sensys or Intermat hinges.
This hinge mounting plate is designed for use with Sensys and Intermat hinges, which anchors it squarely in modern concealed hinge cabinet work using those systems. The stated suitability for half overlay doors ties the plate to common face configurations, which is useful when you are laying out runs of upper or base cabinets that share the same door style. The requirement for side panel thickness from 15mm defines the cabinet material range, so it aligns with typical European-style carcass construction. The 37mm x 32mm hole line positions the plate relative to the front edge, which supports consistent overlay when you repeat the pattern across a row of cabinets.
The direct height adjustment range of plus 2mm to minus 2mm allows vertical fine tuning at the plate, which is valuable when reveals need tightening after case assembly or when floors and walls introduce minor inconsistencies. This adjustment at the mounting plate means you can dial in door position without redrilling side panels, which can save rework on finished cabinets. The Hettich Direct installation with locating pin keeps the plate seated accurately during screw tightening, which supports repeatable results when installing multiple doors using templates or line-boring equipment. Quality classification under EN 15570, Level 2 assigns the plate to a defined performance level within that standard, which aligns the component with expected usage conditions on Sensys and Intermat hinge installations.
This mounting plate is for Sensys and Intermat hinges, so it matches those hinge arms and keeps their geometry and adjustment working as designed on cabinet doors.
The 1.5mm plate height sets the hinge arm off the side panel, which helps establish consistent overlay and reveals when used with half overlay doors in a cabinet run.
The 37mm x 32mm hole line defines a standard drilling pattern, which helps align the mounting plate with line-bored panels and speeds production drilling on cabinet sides.
The plus 2mm minus 2mm adjustment lets you raise or lower the hinge position, which is useful to fine tune door reveals after hanging without altering the cabinet drilling.
This mounting plate is intended for half overlay doors, so its geometry supports that specific door configuration in conjunction with Sensys or Intermat hinges.
The EN 15570 Level 2 classification places this component in a defined performance class, which aligns it with use on Sensys and Intermat hinge installations meeting that level.
This adjustment steel cross mounting plate with locating pin and special screw interface is built for Sensys and Intermat hinge systems, so it fits directly into projects based on those hinges. Its 1.5mm height, 37mm x 32mm hole line, and direct height adjustment range support precise door alignment on half overlay cabinets from 15mm side panel thickness, which helps keep runs of doors consistent. For cabinet builds or retrofits that follow EN 15570, Level 2 performance expectations, this Hettich America Corporation mounting plate provides the specified hinge connection point across your casework.
Sold In: 1 Each
