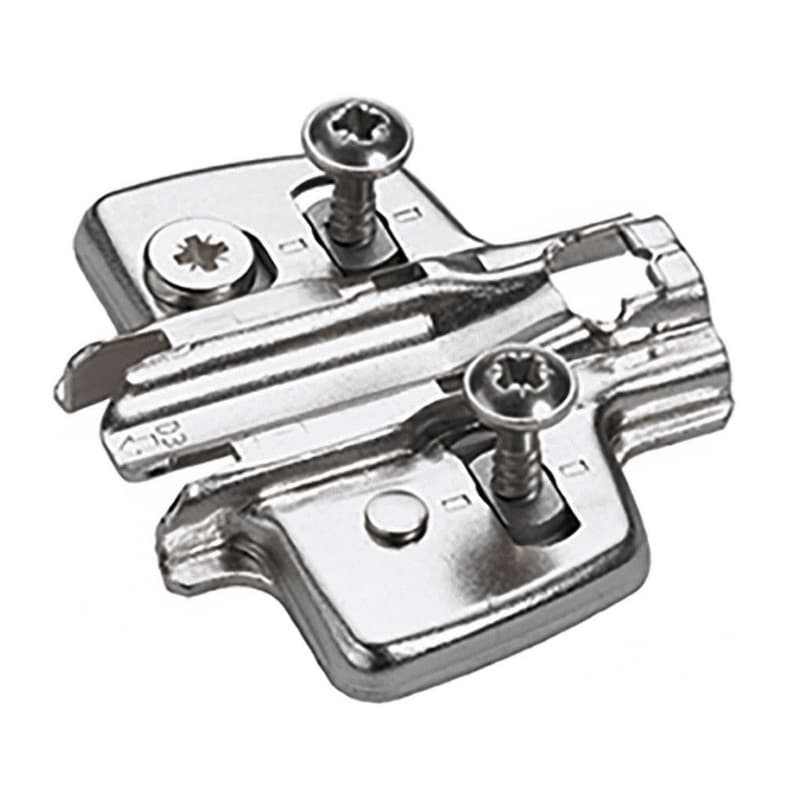

Adjustment Steel Cross Mounting Plate defines this nickel-plated steel hinge base plate designed for Sensys and Intermat hinges, so installers get a matched mounting solution for these systems. The 0mm long cross mounting plate keeps the hinge position compact on the cabinet side, which helps maintain planned reveal lines on modern casework. The 3mm specification identifies the plate height in the mounting stack, giving a predictable reference when coordinating hinges across a run of doors. The steel construction with nickel-plated finish provides a solid, rigid connection between cabinet and hinge arm, which supports stable door alignment over time. As a hinge mounting plate within the Hinge Mounting Plates product class, it forms the fixed point that the adjustable hinge arm references, which is critical when dialing in consistent gaps on multiple doors in a project.
The plate is specified for a 37mm x 32mm hole line, so it matches common system drilling and lets shop equipment run standard boring patterns without custom layouts. Installation is described as Hettich Direct with locating pin and special screws for drilling diameter 5 x 7.5mm, which gives the plate defined mounting points into the side panel for repeatable placement. The integrated locating pin works with the hole line to position the plate accurately, which supports faster setup during production runs. The design is suitable for half overlay doors from 15mm side panel thickness, so it targets typical cabinet constructions where doors partially cover the cabinet side while using standard board thickness.
This hinge mounting plate is intended for Sensys and Intermat hinges, so it slots into projects built around those Hettich hinge families in kitchens, baths, and casework using that system. The 37mm x 32mm hole line requirement makes it a natural fit in shops that already drill system rows at those coordinates, allowing the plate to land directly on existing patterns. Half overlay doors are the specified application, so it is suited to fronts that only partially overlap the cabinet side, a common layout in frameless cabinetry. The note from 15mm side panel thickness means it aligns with standard engineered panel materials, so fabricators working with typical carcass stock can rely on the mounting geometry.
The direct height adjustment built into this cross mounting plate offers an adjustment range of plus 2mm and minus 2mm, which lets installers fine-tune the vertical position of doors without redrilling carcass holes. This adjustment band helps correct small drilling tolerances or material variations, which can otherwise cause stepped door reveals across a bank of cabinets. The Hettich Direct installation with locating pin and special screws for drilling diameter 5 x 7.5mm anchors the plate firmly into the side panel, which supports stable alignment when doors are opened and closed repeatedly. The 3mm mounting plate configuration works with corresponding hinges to achieve the designed overlay for half overlay doors, so layout drawings can be translated into actual fit on site. Quality classification under EN 15570, Level 2, indicates the hinge system is tested to a defined standard, which supports consistent performance expectations on doors using this mounting plate as their base element.
The Adjustment Steel Cross Mounting Plate is designed for Sensys and Intermat hinges, so it serves as the base plate when those hinge families are specified on a cabinet project.
The mounting plate offers a height adjustment range of plus 2mm and minus 2mm, which allows installers to refine door alignment after the plate has been fixed to the side panel.
The plate is designed for a 37mm x 32mm hole line, so it matches common system row drilling used in frameless cabinet construction and streamlines production drilling setups.
The mounting plate uses Hettich Direct installation with a locating pin and special screws for drilling diameter 5 x 7.5mm, giving a defined connection point in the panel.
The plate is specified for half overlay doors from 15mm side panel thickness, so it aligns with doors that partially cover the cabinet side on standard panel materials.
The EN 15570 Level 2 quality classification refers to the hinge system standard applied, giving installers a benchmarked performance level when using this plate with matching hinges.
This Adjustment Steel Cross Mounting Plate with 3mm configuration and 0mm long cross layout gives a defined base for Sensys and Intermat hinges on half overlay doors. The 37mm x 32mm hole line compatibility and Hettich Direct installation method integrate into established drilling workflows, while the plus 2mm and minus 2mm height adjustment helps dial in door reveals. For cabinet runs built around these hinge systems and standard 15mm side panels, this nickel-plated steel plate provides the specified geometry for consistent door alignment across the installation.
Sold In: 1 Each
