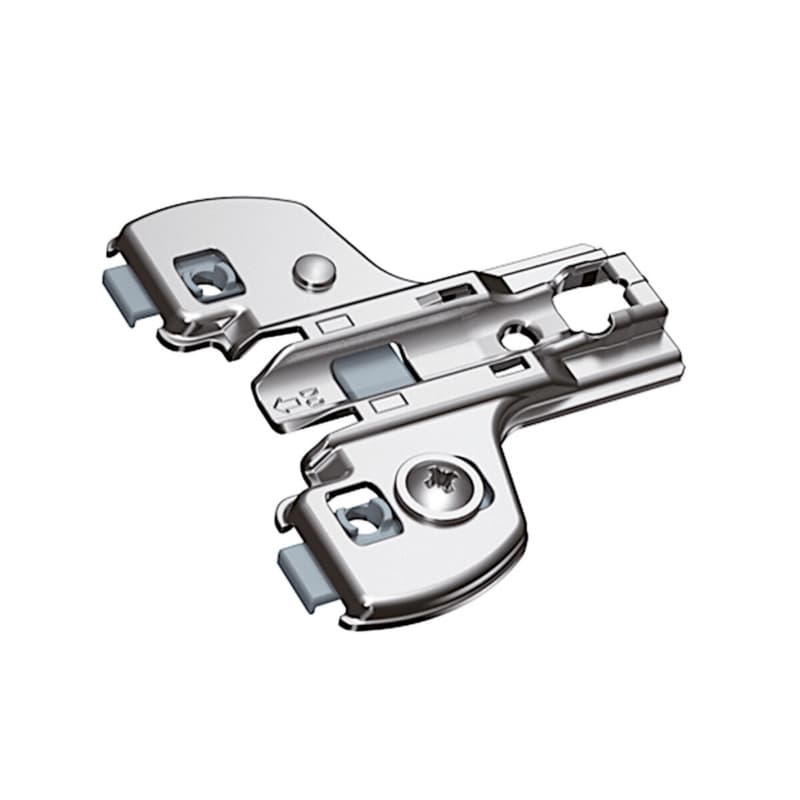

Sensys cam adjustment face frame mounting plate, nickel-plated, screw-on, 4.5mm is a hinge mounting plate from Hettich America Corporation that supports Sensys thin door hinges on face frame cabinet construction, giving installers a defined interface between hinge and cabinet. As a hinge mounting plate in the Hinge Base Plates category, it provides the base that locates the Silent System Sensys thin door hinge relative to the face frame, which sets the door position for consistent reveals. The 4.5mm mounting plate height establishes a fixed reference between the hinge cup and the frame, affecting overlay and margin relationships on doors from 10mm to 19mm thickness. Nickel-plated construction gives the plate a hard, smooth surface, which helps the hinge arms move over the plate reliably during adjustment. The screw-on design uses screws to fasten the plate to the face frame, so installers can drive fasteners directly into the frame material for a secure, repeatable mounting interface.
This hinge mounting plate offers integrated overlay adjustment of plus 2mm to minus 2mm at the hinge interface, so an installer can shift the door laterally relative to the face frame after the plate is fixed. Integrated depth adjustment of plus 3mm to minus 2mm lets the hinge move the door in and out, aligning it to the cabinet front without relocating the plate. Height adjustment is provided at the mounting plate, allowing vertical changes at the plate location rather than redrilling hinge cup holes in the door. Together, these integrated adjustments enable fine-tuning of door position on face frame cabinets while the plate itself remains screwed to the frame, which supports efficient installation and later alignment corrections.
This hinge mounting plate is designed as a universal face frame mounting plate, so it fits into face frame cabinet construction where Sensys thin door hinges are specified. In that setting, the plate positions the Silent System Sensys thin door hinge relative to the frame for doors with thickness from 10mm up to 19mm, maintaining the hinge geometry intended for thin doors. The 4.5mm plate height plays a role in setting the final overlay, helping the installer meet layout expectations where narrow reveals and controlled margins are part of the job. Because height adjustment is provided at the mounting plate, the plate supports fine vertical alignment of multiple doors along a run of face frame cabinets that share the same hinge system and door thickness range.
The integrated overlay adjustment of plus 2mm to minus 2mm lets the hinge and plate shift the door side-to-side relative to the face frame, which helps close gaps and equalize reveals between adjacent doors within that movement range. Integrated depth adjustment of plus 3mm to minus 2mm allows the hinge to move the door closer to or further from the cabinet front, helping align the door face to neighboring fronts without moving the plate. Height adjustment at the mounting plate means vertical changes are handled at the frame interface, so an installer can tweak door height while retaining the original hinge cup boring in the door. Working together, these adjustment ranges support repeatable alignment across multiple doors using the same 4.5mm plate setting, so the initial screw-on installation can stay in place while fine-tuning is handled through the cam and adjustment mechanisms designed into the Sensys system.
This mounting plate works with Silent System Sensys thin door hinges, so it serves as the frame-side interface for that specific hinge family on face frame cabinets.
This mounting plate, used with Silent System Sensys thin door hinges, supports doors from 10mm to 19mm thick, keeping the hinge geometry matched to thinner door constructions.
The 4.5mm mounting plate height sets the hinge arm off the face frame, influencing overlay and reveal relationships that installers plan into their cabinet door layout.
This hinge mounting arrangement offers integrated overlay adjustment plus 2mm to minus 2mm, depth adjustment plus 3mm to minus 2mm, and height adjustment at the mounting plate location.
Height adjustment is provided at the mounting plate, so vertical door positioning changes are made at the face frame connection point rather than altering the door boring.
This mounting plate is nickel-plated, giving the hinge arm a smooth metal contact surface that supports stable hinge movement and adjustment.
The Sensys cam adjustment universal face frame mounting plate, nickel-plated, screw-on, 4.5mm from Hettich America Corporation combines a defined 4.5mm mounting height with integrated overlay, depth, and height adjustments, so it supports accurate alignment work on face frame cabinets using Silent System Sensys thin door hinges. For projects built around doors from 10mm to 19mm thick, this hinge mounting plate provides the frame-side component that ties the hinge geometry to the cabinet, letting adjustments handle final door positioning within the specified movement ranges.
Sold In: 1 Each
