Sensys Cam Adjustment Face Frame Mounting Plate Use

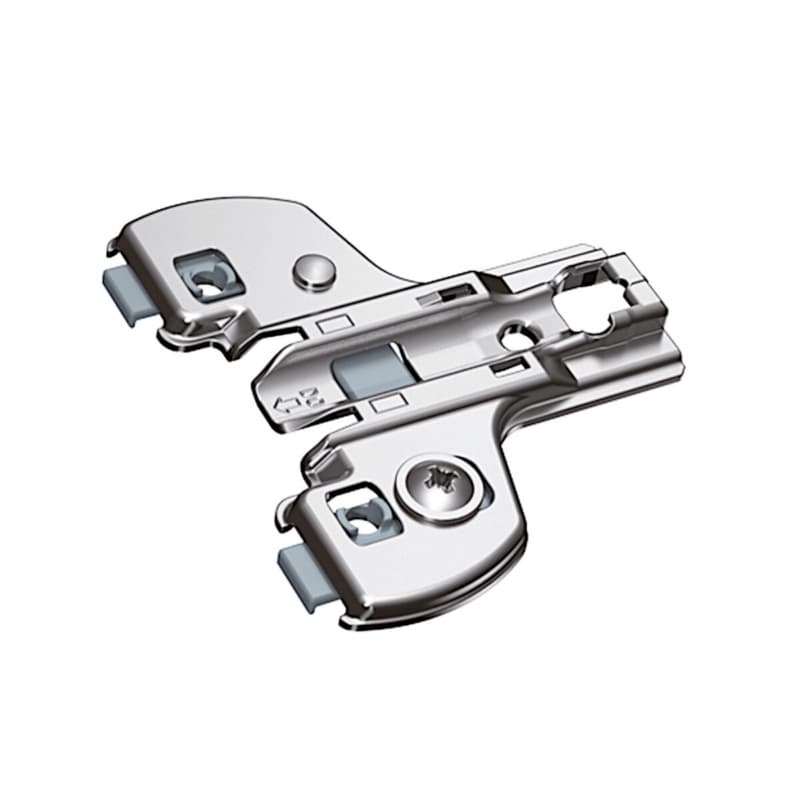

Sensys cam adjustment face frame mounting plate identifies this Hettich America Corporation hinge mounting plate as a dedicated face frame solution that works with Sensys and Intermat hinges, so installers can match the plate to those hinge lines with confidence. The 0.0 mm distance value defines this plate as a zero-offset mounting option, which is useful when planning clearances and overlay in a face frame cabinet run. Its universal face frame design supports common cabinet construction, helping shops standardize on one plate style for those hinges. The nickel plated steel material provides a hard mounting surface that resists wear at the screw points, which helps maintain consistent hinge alignment over repeated door use. Because it is part of the hinge mounting plates product class, it serves as the fixed reference between cabinet face frame and hinge arm in the assembly.

Key Mounting Plate Details For Cabinet Work

• The direct height adjustment function lets the installer change door position at the plate instead of the hinge arm, which can simplify fine tuning reveals after doors are hung and reduce time spent resetting hinge positions.
• The adjustment range of plus 2 mm and minus 2 mm defines how much vertical movement is available, so a fitter can correct for small drilling or frame variation without remaking parts when aligning multiple doors in a bank.
• The 0.0 mm distance setting establishes the plate as a true zero offset option, giving predictable geometry for overlay calculations when paired with Sensys or Intermat hinges during layout and drilling.
• The face frame mounting plate designation confirms it is intended for mounting on face frame cabinet construction, allowing the plate to bridge between the frame and the hinge system in that specific build style.
• The hinge mounting plates category signals that this component is meant to mate with compatible hinge arms, forming the two-part hinge connection that carries door loads back into the cabinet structure.

Screw-On Hinge Plate Installation And Layout

The screw-on installation method means this mounting plate is fixed to the face frame using screws, so installers can position the plate directly on wood without additional hardware systems. The specified hole line of 9.5 x 40 mm defines the screw spacing pattern at the mounting interface, which guides drilling jigs and CNC programs for repeatable positioning across cabinets. Because the plate distance is 0.0 mm, the fitter knows the hinge arm will sit directly relative to the frame surface, which simplifies layout when standardizing overlay and reveal across different cabinet runs. The direct height adjustment built into the plate then allows small vertical corrections on site, reducing the need to move screw positions after the initial layout.

Face Frame Mounting Plate Role In Hinge Systems

Where This Hettich Hinge Mounting Plate Fits

This face frame mounting plate is specified for use with Sensys and Intermat hinges, so it functions as the cabinet-side partner to those hinge arms in a complete hinge system. Its 0.0 mm distance value defines how the hinge arm will sit relative to the frame surface, which is important when matching hinge cup drilling patterns and desired door overlay. The universal face frame design targets cabinets built with a frame at the front, allowing the plate to locate the hinge system on that structural member. Because the hole line is 9.5 x 40 mm, production teams can align drilling, jigs, and documentation around that fixed pattern, helping maintain consistent hardware locations across jobs. The nickel plated steel construction supports the repeated loading that Sensys and Intermat hinges transfer into the frame during daily door movement.

Why Height And Hole Line Details Support Results

The direct height adjustment feature means the installer can fine tune door height from the plate itself, rather than relying only on hinge arm adjustments, which gives an extra point of control when aligning doors in a run. With an adjustment range of plus 2 mm and minus 2 mm, the plate provides a defined window for correcting small misalignments caused by frame variation or drilling tolerances, helping achieve consistent reveals without reboring screw locations. The screw-on installation style works well in field or shop environments where driving screws into wood face frames is standard practice, keeping the workflow familiar for installers. Because the plate sits at a 0.0 mm distance, once the drilling pattern and overlay choice are set for Sensys or Intermat hinges, fitters can repeat that setup cabinet after cabinet with predictable results. The EN 15570, Level 3 quality classification communicates that the hinge system, including this plate in its role, is aligned with that performance level, which matters when specifying hardware standards in professional cabinetry projects.

Common Questions About This Hinge Mounting Plate

Selecting This Plate For Sensys And Intermat Jobs

This hinge mounting plate from Hettich America Corporation is identified specifically as a face frame mounting plate for Sensys and Intermat hinges, which helps align hardware selection with those hinge families. Its 0.0 mm distance and 9.5 x 40 mm hole line define clear mounting geometry, giving production and installation teams fixed reference points for drilling and layout. The direct height adjustment range of plus 2 mm and minus 2 mm at the plate streamlines final alignment work on site. For cabinetry workflows that standardize on these hinge systems, choosing this nickel plated steel plate supports consistent mounting, repeatable door fit, and organized hardware specification across projects.
