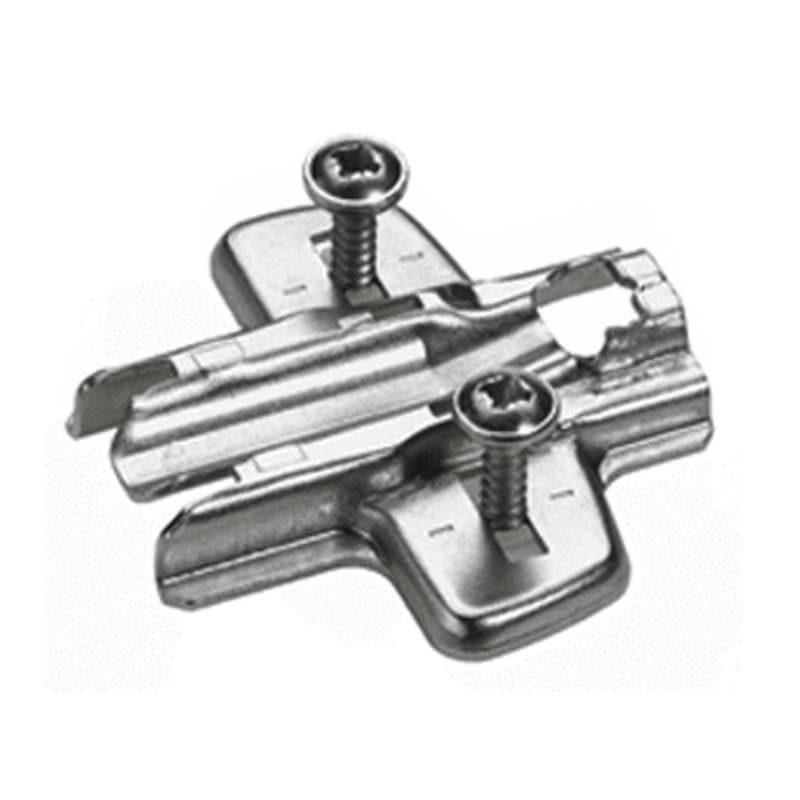

Adjustment cross mounting plate defines this Hettich hinge base plate as a dedicated mounting component that partners with Sensys and Intermat hinges, so it handles the hinge-to-cabinet connection on cabinet and furniture projects using these hinge systems. The 0mm cross mounting plate height keeps the hinge overlay geometry based on the hinge design rather than added plate thickness, which supports predictable door alignment when following the hinge specifications. Direct height adjustment built into the plate provides a +2 mm / -2 mm range, so small alignment changes happen at the plate instead of reworking the cabinet. Steel construction gives the plate a solid, stable mounting base, and the nickel-plated finish protects the metal surface, supporting consistent performance during repeated door movement in typical woodworking environments.
The hole line 37 x 32 mm specification describes the mounting plate hole pattern on the cabinet side, so shop boring equipment can be set up to run consistent rows that match this line. Installation with expanding sockets for drilling diameter 5 x 12 mm means the cabinet side receives 5 mm by 12 mm deep holes, and the sockets expand into these holes to secure the plate, which supports fast assembly on production lines. The direct height adjustment with a +2 mm / -2 mm range concentrates the vertical fine-tuning at the plate, so doors can be shifted up or down in small increments after the hinge cups and cabinet holes are already drilled. The 0mm height of the cross mounting plate keeps this adjustment centered around the cabinet reference plane, which helps maintain consistent reveals across multiple doors on a run of cabinets.
This 0mm cross mounting plate with direct height adjustment is intended for Sensys and Intermat hinges, so it fits into projects built around these Hettich hinge platforms in kitchens, baths, or commercial casework. The mounting plate belongs to the hinge mounting plates product class and the Hinges|Hinge Base Plates category, which positions it as the dedicated base interface between hinge arm and cabinet side in a typical concealed hinge assembly. The hole line 37 x 32 mm dimension aligns with standard hole-line drilling practices, so it suits cabinets bored on 32 mm systems where the front row is set 37 mm from the front edge. Installation using expanding sockets in 5 mm by 12 mm drilled holes suits production shops that bore clean, repeatable 5 mm line holes, allowing the plate to seat accurately along the line for each cabinet side.
The cross mounting plate with direct height adjustment provides a +2 mm / -2 mm range at the plate, which lets installers correct small misalignments in door height without shifting the cabinet or re-boring hinge cups, reducing rework on finished parts. The 0mm mounting plate height keeps the hinge arm close to the cabinet surface, which helps maintain the intended overlay geometry and reduces variation when multiple doors share a continuous toe-kick or top line. Steel as the base material delivers a rigid support for the hinge connection, so door loads transfer through a solid plate into the cabinet side during opening and closing. The nickel-plated finish on the steel surface adds a protective layer that resists wear and tarnish, which matters when the hinge area is exposed to repeated motion or occasional moisture in woodworking settings. The quality classification under EN 15570, Level 3 indicates the hinge system, including this plate, is aligned with a recognized hinge performance standard, which supports selection for applications where tested hinge systems are required.
This 0mm cross mounting plate is for Sensys and Intermat hinges, so it works as the cabinet-side base when using those specific hinge families in cabinet or furniture construction.
The plate offers a +2 mm / -2 mm direct height adjustment range, so small vertical shifts can be made at the plate to fine-tune door alignment after installation.
The mounting plate uses expanding sockets in drilling diameter 5 x 12 mm, so it seats into 5 mm by 12 mm holes and is locked in place by the expanding mechanism.
The 0mm height keeps the hinge arm close to the cabinet surface, so door overlay and reveal follow the hinge design without extra offset from added plate thickness.
Hole line 37 x 32 mm defines the mounting pattern relative to the cabinet front edge and the 32 mm drilling system, which supports consistent side boring on line-drilled cabinetry.
The mounting plate is steel with a nickel-plated finish, so it combines solid metal support with a protective surface suited to typical cabinet hinge environments.
This adjustment cross mounting plate, Hettich manufacturer part 9071595, is a 0mm cross mounting plate with direct height adjustment designed for Sensys and Intermat hinges, so it fits projects built around these hinge systems. The hole line 37 x 32 mm layout and expanding socket installation with 5 mm by 12 mm drilling support efficient cabinet-side boring and plate mounting in woodworking shops. Choosing this steel, nickel-plated plate aligns the hinge installation with EN 15570, Level 3 classification, so the mounting component matches the performance level of the hinge system on demanding cabinet work.
Sold In: 1 Each
