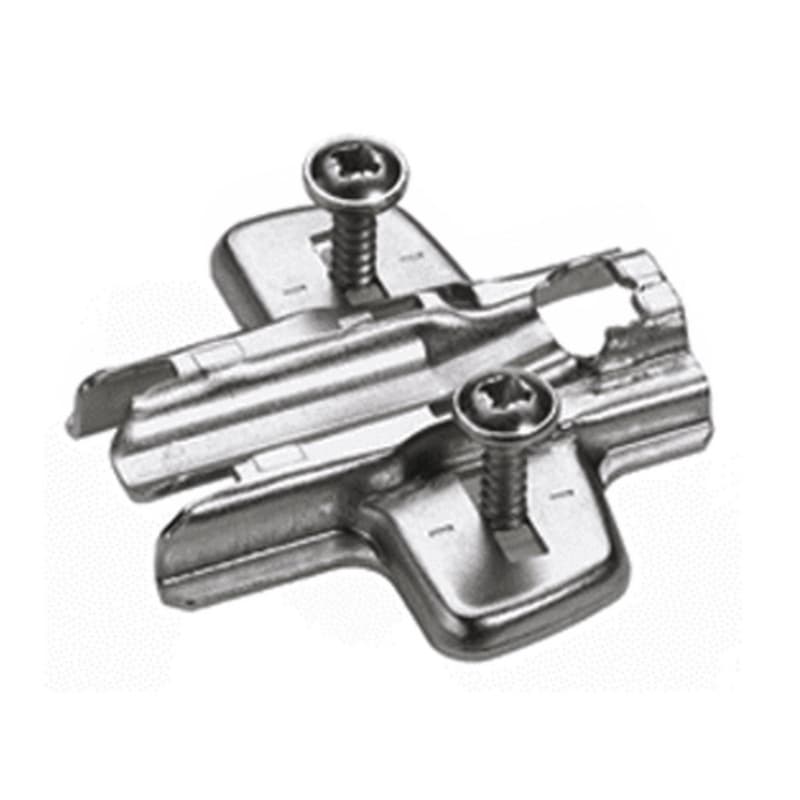

Adjustment cross mounting plate with direct height adjustment gives Sensys and Intermat hinges a stable base while allowing precise cabinet door alignment, which helps installers dial in clean reveals on both new work and change-out jobs. The 0mm cross mounting plate keeps the hinge arm close to the cabinet side, supporting standard layouts where overlay or reveal is driven by the hinge and door thickness instead of the plate height. A nominal 1.5mm reference in the product name identifies this specific variant within the mounting plate family, helping shops match existing hardware across projects and service calls. Nickel-plated steel construction provides a hard wearing surface on the plate body, which supports long-term hinge function at the mounting interface in typical cabinet environments. The adjustment cross mounting plate design focuses on repeatable positioning, which matters when multiple doors must line up across a run.
The 0mm cross mounting plate works on a hole line of 37 x 32 mm, so cabinet sides drilled to that pattern accept the plate directly, which simplifies layout on system-built casework. Installation with expanding sockets in 5 x 12 mm drilled holes gives the plate a firm grip in the substrate, which helps prevent creep under door load or repeated cycling. An adjustment range of plus 2 mm to minus 2 mm is built into the mounting plate, allowing vertical fine-tuning of the hinge position, which helps bring doors flush along cabinet faces without redrilling. Direct height adjustment at the plate means the hinge and door can stay assembled during tuning, which supports shorter fitting times on site and in the shop.
The Hettich America Corporation hinge mounting plate is designed for Sensys and Intermat hinges, so it serves in cabinet installations that rely on these hinge families for concealed door mounting. The 0mm cross mounting plate geometry supports situations where the cabinet is bored on a 37 x 32 mm hole line, meaning casework built on that system standard can accept the plate without layout changes. Installation with expanding sockets in 5 x 12 mm drilled holes suits production cabinets and shop-built work that use this bore size, allowing the plate to be set quickly while maintaining repeatable positioning from cabinet to cabinet. Steel nickel plated construction supports typical woodworking environments, where the plate needs to stand up to repeated hinge movement and contact with mounting screws at the hinge interface. In banks of doors on kitchen, bath, or commercial casework, the adjustment cross mounting plate helps maintain uniform gaps by providing a stable, adjustable base for each hinge arm.
The direct height adjustment feature on this cross mounting plate provides an adjustment range of plus 2 mm to minus 2 mm, which lets installers shift door position vertically without changing the original hole line. That range allows installers to correct for small drilling tolerances or door edge variances, which is often all that is needed to bring a door into alignment with adjacent fronts. Because height changes are made at the mounting plate, the hinge and door remain connected during adjustment, which streamlines workflow when working through multiple doors on a bank of cabinets. The 0mm cross mounting plate setting works with overlays driven by hinge geometry rather than plate offset, which is useful when matching existing installations that already use Sensys or Intermat hinges on similar plates. The nickel-plated steel body keeps the adjustment mechanism supported by a rigid plate, which helps the hinge retain its set position over time.
The adjustment cross mounting plate is for Sensys and Intermat hinges, so it supports projects that standardize on these Hettich concealed hinge families.
The mounting plate matches a 37 x 32 mm hole line, so cabinets drilled on that system pattern can accept the plate without layout changes.
The mounting plate is installed with expanding sockets into drilled holes of 5 x 12 mm, providing a tight, stable connection to the cabinet side panel.
The adjustment cross mounting plate offers a plus 2 mm to minus 2 mm height range, allowing vertical door alignment without changing the cabinet drilling.
The 0mm cross mounting plate designation indicates the plate height relative to the cabinet side, so overlay is driven mainly by hinge geometry and door thickness.
The hinge mounting plate is made from steel and nickel plated, giving a robust base with a hard surface at the hinge connection points.
The adjustment cross mounting plate with direct height adjustment, 0mm cross mounting geometry, and 37 x 32 mm hole line fit gives Sensys and Intermat hinges a stable, tunable base on system-drilled cabinets. Expanding socket installation into 5 x 12 mm bores provides solid engagement with the cabinet side, supporting long-term hinge performance. With its plus 2 mm to minus 2 mm height adjustment range and nickel-plated steel construction, this Hettich hinge mounting plate helps deliver consistent door alignment across runs. Use this specific plate where Sensys or Intermat hinges and the matching hole line pattern are already part of the project standard.
Sold In: 1 Each
