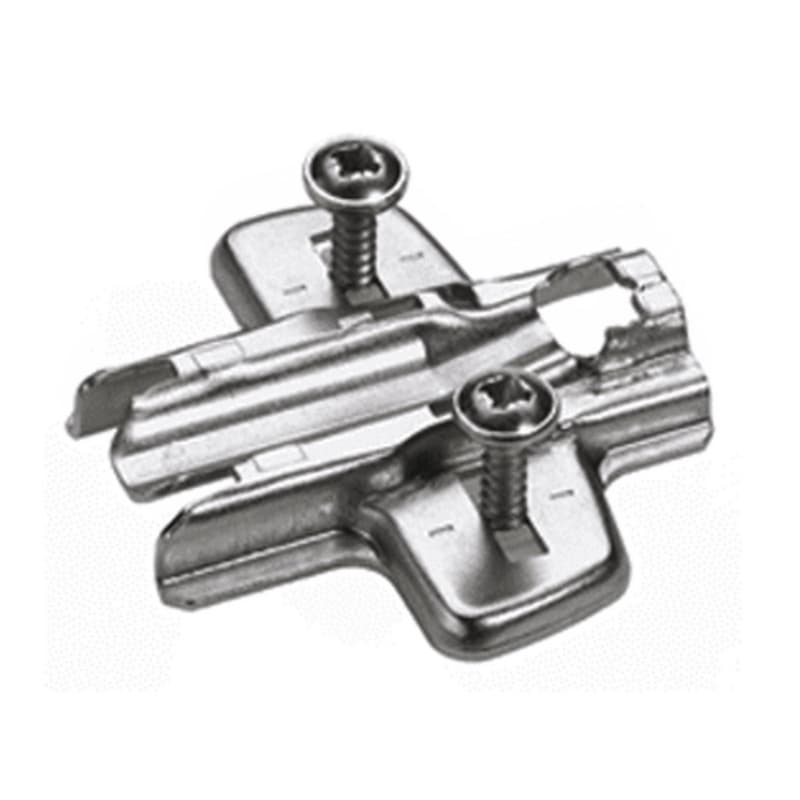

Sensys cross mounting plate 3mm from Hettich America Corporation is a steel hinge mounting plate designed for Sensys and Intermat hinges, so it anchors those hinge arms to the cabinet while holding alignment. The plate is nickel plated, which provides a hard surface on the steel body that stands up to repeated hinge movement in cabinet installations. This model is specified as a 0mm cross mounting plate, so it sets the hinge arm close to the cabinet side, which helps keep overlay and reveal within expected ranges when working from system measurements. The plate is classified under EN 15570, Level 3, which identifies it as part of a hinge system tested to that European standard, helping installers match it to projects that call out that classification. The manufacturer part number 9071597 ties this plate to Hettich documentation for ordering and repeat use.
This cross mounting plate is designed for hole line 37 x 32 mm, so it fits cabinet side drilling laid out on that standard pattern and avoids layout changes on jobs built to that system. Installation uses expanding sockets sized for drilling diameter 5 x 12 mm, so once those 5 mm holes are bored to 12 mm depth, the sockets expand in the panel and secure the plate, supporting consistent holding power in panel material suited to that detail. The integrated direct height adjustment offers an adjustment range of plus 2 mm to minus 2 mm, so hinge position can be raised or lowered within that window to align doors across a bank without redrilling. Combined, the hole line spacing, expanding socket installation, and adjustment range give installers a defined workflow from drilling through final door alignment.
This hinge mounting plate is categorized as a hinge mounting plate within the hinges and hinge base plates group, so it serves as the cabinet-side interface in a concealed hinge system. It is designed for Sensys and Intermat hinges, which places it in projects where those specific hinge lines are part of the hardware schedule. The plate works with a hole line 37 x 32 mm, so it matches cabinet sides drilled on that standard system layout and integrates into row-drilled, frameless-style construction or other layouts using that hole spacing. Because it is a 0mm cross mounting plate, the hinge arm sits close to the panel surface, which supports overlay and gap results that follow the hinge manufacturer charts for that base height.
The plate is made from steel and nickel plated, so the hinge arm clamps to a solid metal base with a corrosion-resistant surface, supporting long-term performance when doors are opened and closed repeatedly in typical cabinet environments. Direct height adjustment built into the plate allows plus 2 mm to minus 2 mm of movement, so minor variations in drilling or carcass construction can be corrected at hardware adjustment time instead of earlier in the build. Installation with expanding sockets in 5 x 12 mm drilled holes provides a defined connection method, so once the sockets are expanded in the 5 mm bores, the plate remains firmly seated against the panel while adjustments are carried out. Its classification under EN 15570, Level 3, links the plate to a hinge system tested to that standard, which matters for commercial and residential jobs that expect hardware to align with a documented performance level.
This hinge mounting plate is designed for Sensys and Intermat hinges, so it serves as the cabinet-side base plate whenever those hinge families are specified on a project.
The mounting plate offers direct height adjustment with an adjustment range of plus 2 mm to minus 2 mm, so installers can fine-tune door alignment vertically after initial mounting.
The plate is designed for hole line 37 x 32 mm and uses installation with expanding sockets for drilling diameter 5 x 12 mm, so it fits cabinets drilled to that pattern.
The 0mm cross mounting plate designation indicates the base height of the plate, so the hinge arm sits close to the cabinet panel, influencing overlay and gap results.
The EN 15570, Level 3 classification means the hinge system using this plate is tied to that European standard, which supports use on projects referencing that performance level.
The mounting plate is made of steel and nickel plated, so the hinge connection rests on a durable metal base with a protective surface in typical cabinet environments.
The Hettich America Corporation 0mm cross mounting plate with direct height adjustment is tailored for Sensys and Intermat hinge systems, so it fits projects built around those hinges. Its hole line 37 x 32 mm layout and expanding sockets for drilling diameter 5 x 12 mm align with common cabinet drilling practices, giving both professional installers and serious DIY users a defined path from layout to final door alignment. With EN 15570, Level 3 classification, steel construction, and nickel-plated finish, this hinge mounting plate provides a specified component that supports consistent results across repeated cabinet runs.
Sold In: 1 Each
