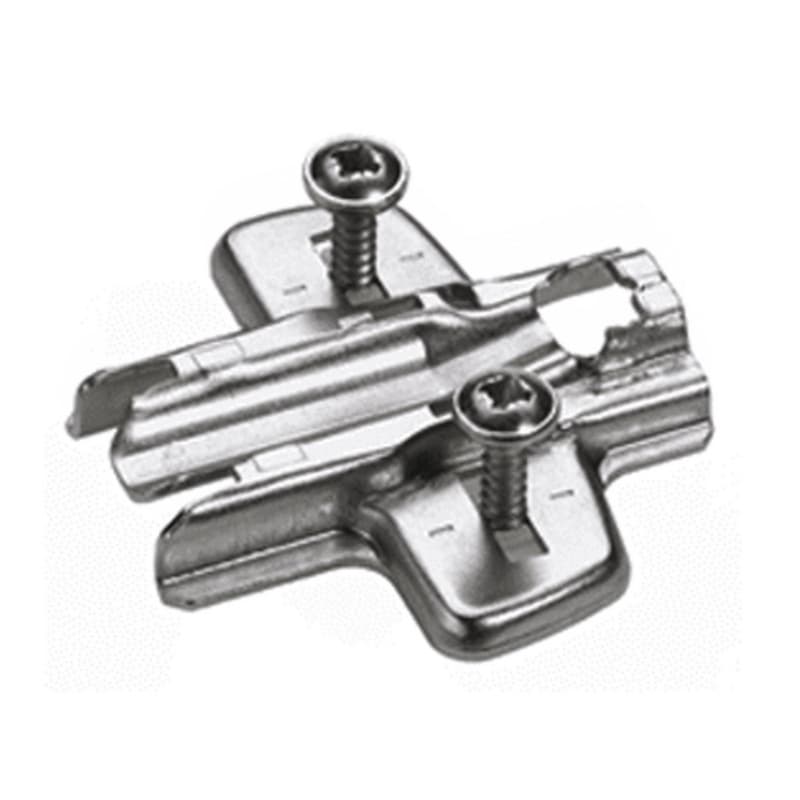

Adjustment cross mounting plate 5mm describes a 0mm cross mounting plate designed for direct height adjustment, so a hinge position can be fine-tuned without changing the basic drilling layout. The plate is part of the Hettich America Corporation hinge mounting plates range, which ties it directly to Sensys and Intermat hinge systems in cabinet work. The mounting plate is made from steel and nickel plated, giving a hard base plate body with a surface suited to typical interior cabinet environments. It is specified as a hinge mounting plate in the Hinges and Hinge Base Plates category, so it serves as the interface between the cabinet side and the hinge arm. The product is identified by manufacturer part number 9071598, making it straightforward to match to drawings or hinge schedules that specify this exact plate.
The 0mm cross mounting plate with direct height adjustment works within a hole line of 37 x 32 mm, so drilling operations can follow that center-to-center pattern for cabinet sides. Installation with expanding sockets set in drilling diameter 5 x 12 mm means the plate is secured by elements that fit those bore dimensions. The adjustment range of plus 2 mm / minus 2 mm allows the hinge position to be shifted vertically within that window, so the door line can be brought into alignment relative to adjacent fronts. Because the plate is for Sensys and Intermat hinges, the mounting interface is designed to accept hinge arms from those systems on this fixed plate height.
The product is described as a cross mounting plate for Sensys and Intermat, so it serves as the base connection point between these hinge arms and the cabinet side. The 0mm cross mounting plate height fixes the hinge arm at a defined distance from the cabinet side, helping preserve the overlay or inset dimensions specified in those hinge series. The hole line 37 x 32 mm specification sets the horizontal and vertical spacing of the mounting bores, aligning the plate with a standard drilling grid used for hinge rows. Installation with expanding sockets in 5 x 12 mm bores anchors the plate into those holes, so the cabinet side panel provides the substrate while the plate forms the metal interface for the hinge arm. Because the mounting plate is made from nickel plated steel, the contact area between hinge arm and plate is metal-to-metal, which supports repeated hinge adjustments within the stated range.
The direct height adjustment function built into this mounting plate allows door alignment to be changed without altering the original 37 x 32 mm drilling pattern, supporting fine tuning after the cabinet has been machined. With an adjustment range of plus 2 mm / minus 2 mm, the plate gives a defined vertical movement window, so installers can move a door leaf slightly up or down while staying within the plate design limits. The 0mm cross mounting plate height simplifies planning because there is no built-in offset to add or subtract when calculating overlay for Sensys and Intermat hinges. Quality classification under EN 15570, Level 3, links this plate to a defined hinge performance category, which is relevant when specifying hardware for cabinets expected to see repetitive door cycles. The nickel plated steel construction also provides a stable bearing surface for the hinge arm clamp, helping the arm maintain its set position once the adjustment is made.
The Adjustment Cross Mounting Plate is specified for Sensys and Intermat hinges, so its mounting geometry matches hinge arms from those Hettich systems.
The mounting plate is designed for a hole line of 37 x 32 mm, so cabinet side drilling follows that center-to-center spacing.
The mounting plate installs with expanding sockets in bores drilled to diameter 5 x 12 mm, so the sockets expand into those holes to hold the plate.
The mounting plate offers direct height adjustment with a range of plus 2 mm to minus 2 mm, allowing vertical fine tuning of the hinge position.
The hinge mounting plate is made from steel and nickel plated, giving a steel core with a nickel surface suited to typical cabinet interiors.
The mounting plate has a quality classification under EN 15570, Level 3, placing it in that defined hinge performance category.
This cross mounting plate is identified as SENSYS CROSS MPL 5MM W/5MM DOWEL and manufacturer part 9071598, linking it directly to Hettich documentation and hinge layouts. The 0mm cross mounting plate height, 37 x 32 mm hole line, and 5 x 12 mm expanding socket installation define how it fits into cabinet side drilling. The direct height adjustment range of plus 2 mm / minus 2 mm and EN 15570, Level 3 classification give clear data for specifying this plate in cabinet projects using Sensys or Intermat hinges.
Sold In: 1 Each
