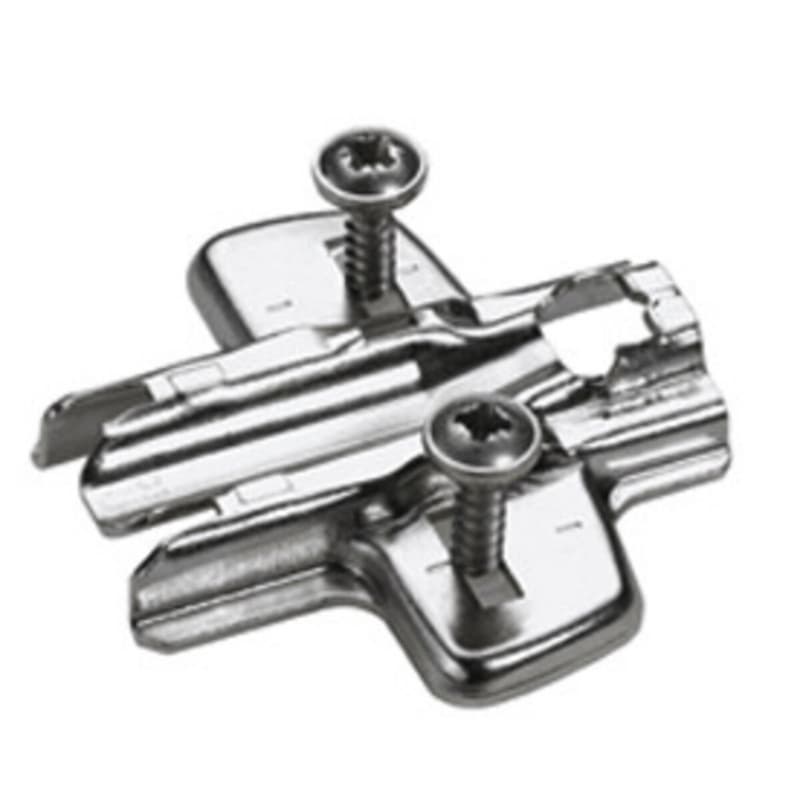

Sensys cross mounting plate is a 0mm long cross mounting plate with direct height adjustment that works as the base connection between the cabinet and compatible hinges. This setup lets you dial in door position without changing the cabinet drilling. The plate is part of the Hinge Mounting Plates product class, so it is designed as the structural interface under the hinge arm during installation. The 3mm mounting plate height establishes the hinge position off the side panel, which affects overlay and the gap between door and cabinet. Nickel-plated construction provides a hard, smooth surface at the hinge joint, which supports consistent movement under normal cabinet use. The plate is made for half overlay doors, from 15mm side panel thickness, so the geometry is suited to that door and panel relationship. Quality classification under EN 15570, Level 2, ties the part to a standardized hinge performance level.
The hole line 37mm x 32mm dimension means the plate seats on drilling spaced 37mm from the front edge and 32mm between fixing points, so cabinet drilling can be laid out or machined around that standard. Hettich Direct installation with locating pin and special screws (for drilling diameter 5 x 7.5mm) uses predrilled holes to guide the plate into position, which stabilizes alignment before screws are tightened. Direct height adjustment built into the mounting plate lets you move the hinge connection plus 2mm or minus 2mm, so door reveals can be corrected at the plate rather than reworking the case. The 3mm plate height sets the base level for the hinge arm, which influences how the half overlay doors sit against side panels from 15mm side panel thickness.
This hinge mounting plate is for Sensys and Intermat hinge systems, so it sits under those hinge arms as the fixed cabinet-side component. The 0mm long cross mounting plate footprint works with a 37mm x 32mm hole line, meaning it fits cabinets drilled to that spacing so the plate lands in a predictable position. Design for half overlay doors, from 15mm side panel thickness, ties the plate geometry to doors that cover part of the cabinet side, which supports consistent overlay when the correct hinges are used. The 3mm mounting height further defines that relationship between door and cabinet, helping give a defined offset at the hinge side. Nickel-plated finish on the steel plate provides a uniform metal surface around the hinge interface, which is suited to typical cabinet interiors and hardware runs.
The direct height adjustment in this cross mounting plate gives an adjustment range plus 2mm / minus 2mm, so the hinge connection can move vertically on the cabinet without re-drilling. That adjustment window helps bring multiple half overlay doors into line when case parts vary slightly, because each plate can be shifted within that 4mm total span. Hettich Direct installation with locating pin and special screws (for drilling diameter 5 x 7.5mm) positions the plate tightly in its drilled pattern, so the adjustment movement happens in a controlled path rather than floating on the panel. Quality classification under EN 15570, Level 2, connects the part to a tested hinge performance standard, which supports consistent operation of the hinge system in regular cabinet service. The manufacturer part number 9071587 identifies this exact Sensys cross mounting plate, which helps match it across drawings, orders, and on-site hardware bins.
This mounting plate is for Sensys and Intermat hinges, so it serves as the cabinet-side base that mates directly with those hinge arms during installation.
The mounting plate offers plus 2mm / minus 2mm direct height adjustment, allowing vertical movement of the hinge interface so door reveals can be aligned without new drilling.
The plate is made for a hole line 37mm x 32mm, which means the fixing points line up with that spacing on the cabinet, guiding accurate hinge placement.
The plate uses Hettich Direct installation with a locating pin and special screws for drilling diameter 5 x 7.5mm, which seats the plate securely in predrilled holes.
The mounting plate is specified for half overlay doors on cabinets with side panel thickness from 15mm, aligning its geometry to that construction.
The EN 15570, Level 2 classification ties the plate to a recognized hinge performance class, relating to functional requirements in door movement and durability tests.
The Sensys cross mounting plate with 3mm height, direct height adjustment plus 2mm / minus 2mm, and a 37mm x 32mm hole line gives a defined setup for half overlay doors on side panels from 15mm thickness. When a project is based around Sensys or Intermat hinges, using this Hinge Mounting Plates component with Hettich Direct installation, locating pin, and special screws for drilling diameter 5 x 7.5mm keeps the cabinet-side geometry consistent across runs. Selecting manufacturer part number 9071587 through Wurth Baer Supply ties the hinge layout, drilling pattern, and adjustment capability to a specific, repeatable mounting plate.
Sold In: 1 Each
