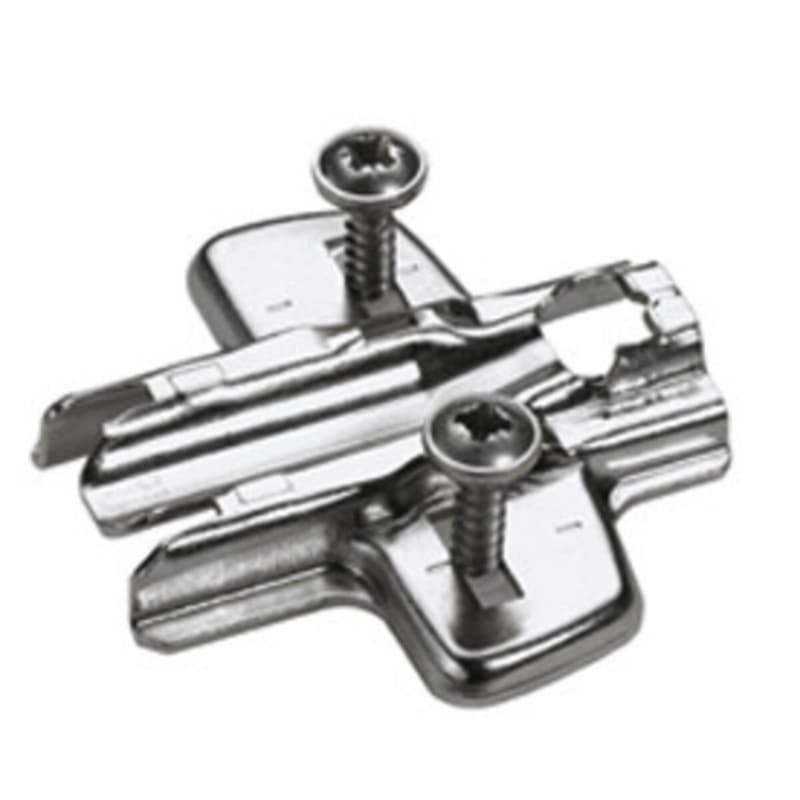

Adjustment cross mounting plate defines this Hettich America Corporation hinge mounting plate as a dedicated base for Sensys and Intermat hinges, so the hinge arm connects to a known interface that keeps your door motion consistent on every cabinet run. The 0mm long cross mounting plate with direct height adjustment sets the door starting height at carcass level, then lets you move the door up or down within the adjustment range to dial in alignment. Nickel-plated construction creates a hard surface on the plate that stands up to repeated hinge adjustments during fitting and service. Quality classification under EN 15570, Level 2 ties the plate to a defined performance level, which helps you match it to projects that expect a tested hinge system. The manufacturer part number 9071585 allows you to repeat the exact same plate on future jobs or during replacements.
The hole line 37mm x 32mm layout on this hinge base plate anchors the plate to a defined drilling grid, which helps your line boring or CNC program match the plate pattern across the job. Hettich Direct installation with locating pin and special screws (for drilling 5 x 7.5mm) connects the plate to dedicated bore holes, so the pin positions the plate while the screws clamp it to the panel. The direct height adjustment with an adjustment range of + 2mm / - 2mm means you can shift the plate up or down relative to those bored holes, which lets you tune door reveals without reworking the carcass or moving the cup bores in the door.
This hinge mounting plate is specified for Sensys and Intermat hinges, so it fits into cabinet runs built around those Hettich hinge families. The 0mm long cross mounting plate suits layouts where the hinge arm and door positioning define the overlay, because the plate itself does not add height between the side panel and hinge arm. Use on half overlay doors connects the plate to cabinets where the door shares the side panel edge with another door or a visible frame, which is common in frameless constructions. The requirement for side panel thickness from 15mm links this plate to cabinets built with that panel thickness or greater, so the locating pin and special screws have enough material to hold.
The hole line 37mm x 32mm pattern aligns with a standard system drilling grid, which helps you keep hinge locations consistent when running multiple cabinets or large batches. Hettich Direct installation with locating pin and special screws (for drilling 5 x 7.5mm) means the plate references a dedicated locating feature, so each plate sits in the same position relative to the bore holes and speeds repeat setups. The direct height adjustment built into the plate with a + 2mm / - 2mm range lets you correct minor variations in carcass drilling or door size by shifting the door vertically, which reduces rework when fine-tuning reveals. Nickel-plated finish on the plate gives a hard, corrosion-resistant surface at the hinge interface, which supports long-term adjustment and hinge movement in typical cabinet environments. Quality classification under EN 15570, Level 2 ties this plate into a hinge system tested to a defined standard, which supports use in applications that value documented hinge performance.
The adjustment cross mounting plate is for Sensys and Intermat hinges, so it supports projects that standardize on these Hettich hinge families.
The mounting plate offers an adjustment range of plus 2mm / minus 2mm, giving 4mm of vertical movement for correcting door reveals and alignment.
The hinge mounting plate uses hole line 37mm x 32mm, matching a common system drilling pattern for cabinet side panels.
The plate uses Hettich Direct installation with a locating pin and special screws for drilling 5 x 7.5mm, positioning the plate accurately on the panel.
The cross mounting plate is designed for half overlay doors, aligning plate geometry with this common frameless cabinet door layout.
The hinge mounting plate is specified for side panel thickness from 15mm, matching many cabinet constructions using that material thickness or greater.
The 0mm long cross mounting plate with direct height adjustment, designed for Sensys and Intermat hinges, gives you a defined base when you want half overlay doors on side panels from 15mm thickness. Using the hole line 37mm x 32mm pattern and Hettich Direct installation with locating pin and special screws (for drilling 5 x 7.5mm) ties the plate into standard drilling workflows. For cabinet runs that call for EN 15570 Level 2 hinge performance and a + 2mm / - 2mm vertical adjustment range at the plate, select Hettich manufacturer part 9071585 from Wurth Baer Supply.
Sold In: 1 Each
