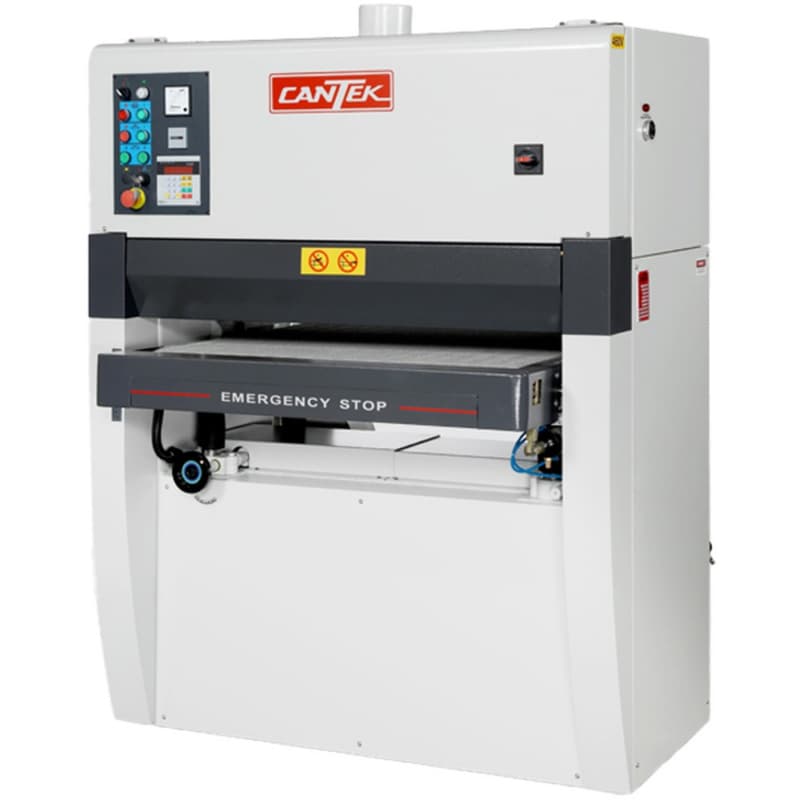

Engineered for professional woodshops, the Cantek C371 (3PH) 3 Phase Wide belt Sander combines powerful sanding performance with a compact design. With a digital thickness control system and a dual-function sanding unit, this machine delivers calibration and finish sanding in one efficient package.
Key Features & BenefitsPrecision in Every Pass
• Digital thickness settings in both Inch & Metric formats
• Automatic motorized table adjustment ensures reliable sanding accuracy
• Delivers consistent results across large batches
Dual-Purpose Sanding Head
• 5" rubber contact drum for heavy material removal
• 2" wide platen for fine, smooth finish sanding
• Handles large panels, doors, and furniture parts with ease
Efficiency Meets Safety
• Pneumatic belt tensioning with quick-release for fast changes
• Electronic belt tracking increases belt life and reduces misalignment
• Disc brake on the main motor ensures faster, safer servicing
Designed for Workflow Optimization
• Dual infeed/outfeed rollers keep material stable
• Four table jack screws offer level table movement
• Over-height sensor protects machine from accidental overloads
- Net Weight: 1980 lbs (900 kg)
- Shipping Weight: 2530 lbs (1150 kg)
- Belt Size: 37" x 60"
- Compressed Air Requirements: 2 CFM @ 90 PSI
- Dust Oulets: 1 @ 5" (1 @ 127 mm)
- Feed Belt Speed: 13 - 52 FPM (4 to 16 m/min)
- Feed Motor: 2 HP
- Infeed Table: 11-1/2" (292 mm)
- Machine Dimensions: 64" x 53" x 73" (1625 x 1346 x 1854 mm)
- Max. Thickness Opening: 5" (127 mm)
- Max. Width Stock: 36" (910 mm)
- Min/Max Working Thickenss: 5" (127 mm)
- Min. Part Length: 13" (330 mm)
- Motor: 20 HP
- No. Of Heads: 1
- Passline Height: 33"- 38" (838 – 965 mm)
- Phase: 3
- Shipping Dimensions: 67" x 55" x 78" (1701 x 1397 x 1981 mm)
- Table Rise/Fall Motor: 1/2 HP
