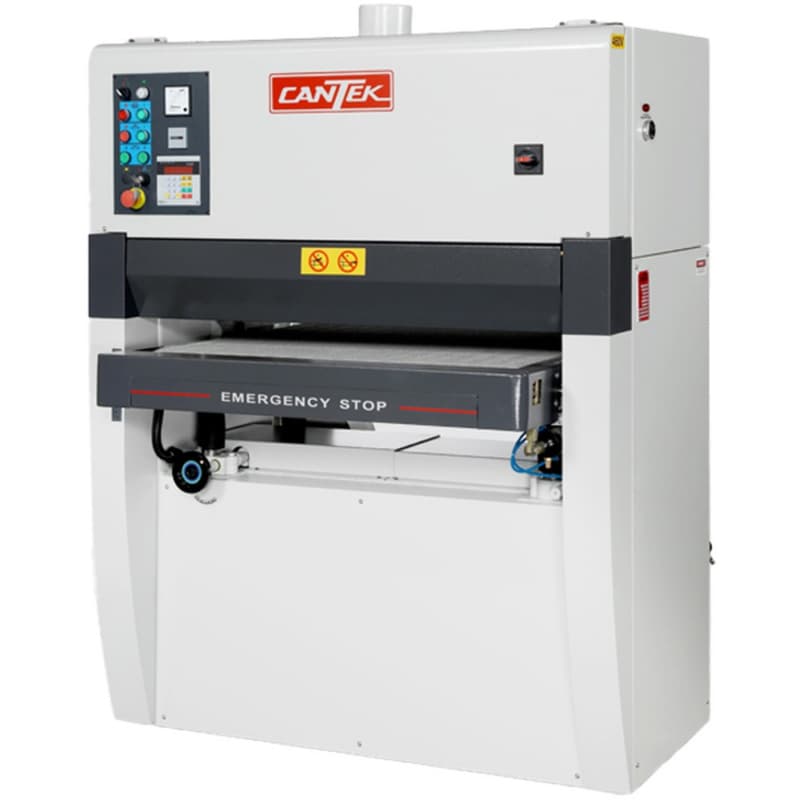

The Cantek C371 (1PH) 1 Phase Wide belt Sander delivers high-performance sanding in a space-efficient footprint. Built with a rugged frame and a versatile combination sanding head, it excels in both calibration and finish sanding. Digital thickness control and user-focused features ensure accuracy and ease, making it ideal for small shops requiring industrial-grade reliability.
Key Features & Benefits
Pinpoint Accuracy with Digital Thickness Control
- Digital control allows precise thickness input in inches or millimeters
- Motorized table positioning ensures consistent sanding depth across batches
- Reduces operator error and saves time during repeat jobs
Versatile Combination Sanding Head
- 5" rubber contact drum delivers aggressive calibration sanding
- 2" wide adjustable platen offers refined finishing capabilities
- Suitable for a variety of materials including plywood, hardwood, and panels
Compact Yet Durable Design
- Heavy-duty frame minimizes vibration for a smooth finish
- Four jack screws provide even, stable table movement under load
- Perfect for space-conscious shops needing powerful results
User-Friendly & Safety-Focused
- Electronic belt tracking maintains alignment and extends belt life
- Integrated disc brake allows quick, secure belt changes
- Includes hour meter and over-height switch for safety and maintenance
Optimized Dust & Maintenance Access
- Double infeed/outfeed pressure rollers ensure smooth material feed
- Pneumatic quick-release belt tensioning speeds up belt swaps
- Safety interlocks on all doors protect users and reduce downtime
- Net Weight: 1980 lbs (900 kg)
- Shipping Weight: 2530 lbs (1150 kg)
- Belt Size: 37" x 60"
- Compressed Air Requirements: 2 CFM @ 90 PSI
- Dust Oulets: 1 @ 5" (1 @ 127 mm)
- Feed Belt Speed: 13 - 52 FPM (4 to 16 m/min)
- Feed Motor: 2 HP
- Infeed Table: 11-1/2" (292 mm)
- Machine Dimensions: 64" x 53" x 73" (1625 x 1346 x 1854 mm)
- Max. Thickness Opening: 5" (127 mm)
- Max. Width Stock: 36" (910 mm)
- Min/Max Working Thickenss: 5" (127 mm)
- Min. Part Length: 13" (330 mm)
- Motor: 10 HP
- No. Of Heads: 1
- Passline Height: 33"- 38" (838 - 965 mm)
- Phase: 1
- Shipping Dimensions: 67" x 55" x 78" (1701 x 1397 x 1981 mm)
- Table Rise/Fall Motor: 1/2 HP
