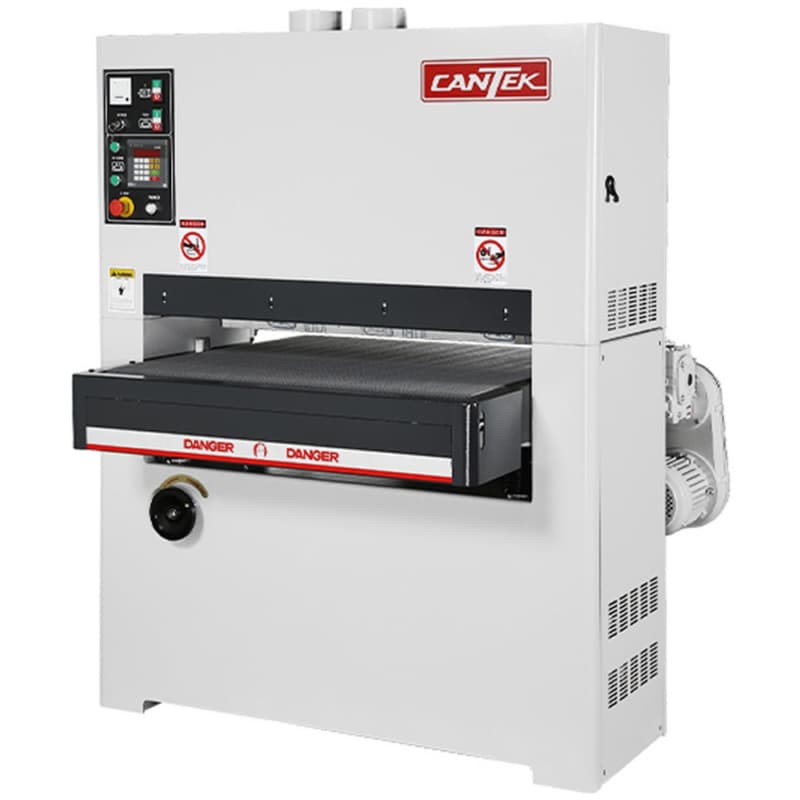

The Cantek S371 36" Wide belt Sander (1PH) delivers commercial-grade sanding performance in a space-conscious design. Ideal for busy woodworking shops, this unit features a combination sanding head and digital motorized table adjustment. Built tough and engineered for accuracy, it's the perfect solution for precise calibration and finishing across a variety of materials.
Key Features & Benefits
Accurate Digital Thickness Control
- Inch and metric input support for all operator preferences
- Motorized table adjustment for quick, repeatable settings
- Enhances speed and consistency in production environments
Dual-Function Sanding Head
- 5" rubber contact drum ideal for material calibration
- 2" platen allows smooth, controlled final sanding
- Adaptable for both rough stock and fine finishes
Durable Construction in a Compact Design
- Heavy-duty frame resists vibration and improves sanding accuracy
- Small footprint suits compact work areas
- Built for daily commercial use
Smart Safety & Tracking Systems
- Electronic belt tracking improves alignment and longevity
- Emergency disc brake ensures quick stops for safer maintenance
- Interlocked doors keep operators protected
Streamlined Operation & Belt Maintenance
- Built-in ammeter helps avoid excessive sanding pressure
- Pneumatic belt tensioning with quick-release support saves time
- Jackscrews deliver smooth, accurate table lifts
- Net Weight: 1609 lbs (730 kg)
- Shipping Weight: 1829 lbs (830 kg)
- Belt Size: 37" x 60"
- Compressed Air Requirements: 60 PSI
- Compressed Air Volume: 7 CFM (0.2M3/Min)
- Dust Collection Requirements: 1236 CFM (2100 M3/HR)
- Electrical Requirements: 230/3/60 = 47 Amps
- Feed Belt Speed: 15 - 49 FPM (4 to 15 m/min)
- Feed Motor: 1 HP
- Machine Dimensions: 50" x 52" x 66" (1270 x 1335 x 1680 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 12.5" (320 mm)
- Motor: 10 HP
- No. Of Heads: 1
- Pass Line Height: 37" (950 mm)
- Phase: 1
- Shipping Dimensions: 52" x 57" x 76" (1330 x 1460 x 1940 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 37" (930 mm)
