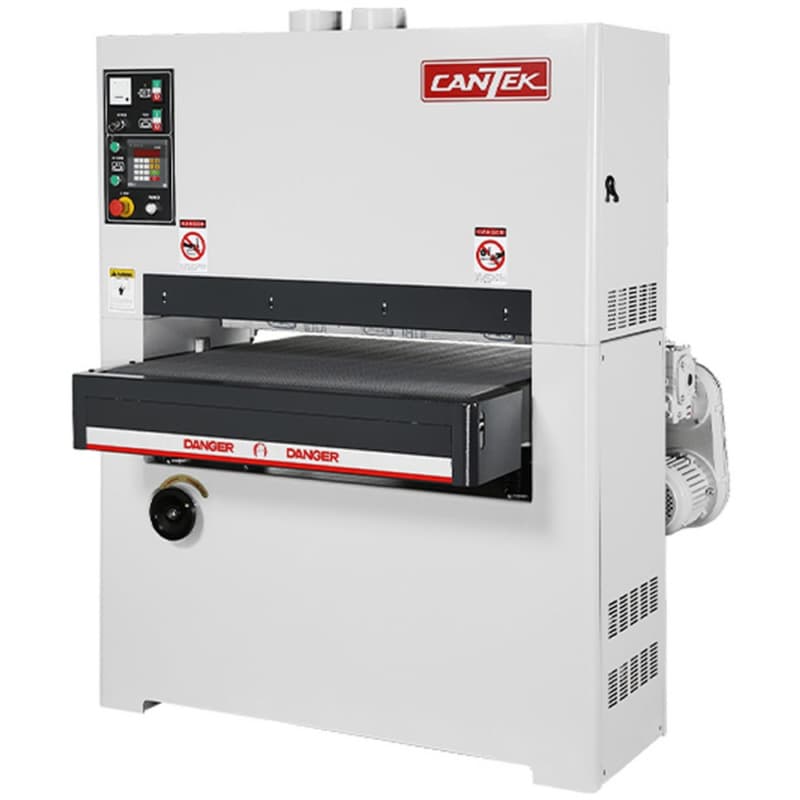

Designed for demanding production environments, the Cantek S371 36" Wide belt Sander (3PH) combines industrial-grade power with a versatile sanding unit. Whether you’re tackling heavy stock removal or delivering smooth final finishes, its digital thickness control and 3-phase motor ensure consistent performance with every pass. Cantek’s engineering offers long-term reliability in a footprint that fits almost any workshop.
Key Features & Benefits
Precision with Digital Thickness Control
• Supports inch and metric input modes
• Motorized height adjustment for quick, accurate setup
• Improves job turnaround and minimizes operator error
Combination Head for Versatile Sanding
• 5" rubber drum for aggressive calibration work
• 2" adjustable platen for smooth final finishing
• Handles various wood species and sanding needs with ease
Built to Last in Tight Spaces
• Industrial steel frame for minimal vibration and superior stability
• Compact design ideal for smaller shops with high production demands
• 3-phase power ensures efficient, continuous operation
Enhanced Monitoring & Belt Control
• Electronic belt tracking maintains proper alignment and reduces wear
• Ammeter helps operators stay within optimal load range
• Disc brake allows for fast, safe motor shutdown during belt changes
Efficient Maintenance and Safety Integration
• Pneumatic belt tensioning with quick-release support for easy belt swaps
• Precision jackscrews provide smooth table movement
• Interlocked access doors ensure a safe work environment
- Net Weight: 1609 lbs (730 kg)
- Shipping Weight: 1829 lbs (830 kg)
- Belt Size: 37" x 60"
- Compressed Air Requirements: 60 PSI
- Compressed Air Volume: 7 CFM (0.2M3/Min)
- Dust Collection Requirements: 1236 CFM (2100 M3/HR)
- Electrical Requirements: 230/3/60 = 47 Amps
- Feed Belt Speed: 15 - 49 FPM (4 to 15 m/min)
- Feed Motor: 1 HP
- Machine Dimensions: 50" x 52" x 66" (1270 x 1335 x 1680 mm)
- Min/Max Working Thickenss: 5.9" (150 mm)
- Min. Part Length: 12.5" (320 mm)
- Motor: 15 HP
- No. Of Heads: 1
- Pass Line Height: 37" (950 mm)
- Phase: 3
- Shipping Dimensions: 52" x 57" x 76" (1330 x 1460 x 1940 mm)
- Table Rise/Fall Motor: 0.25 HP
- Working Width: 37" (930 mm)
